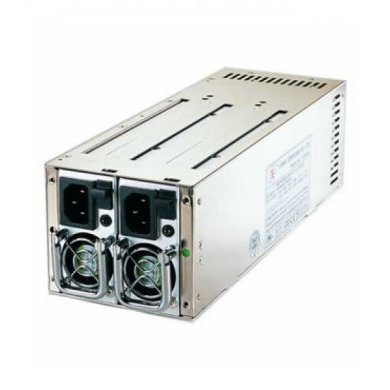

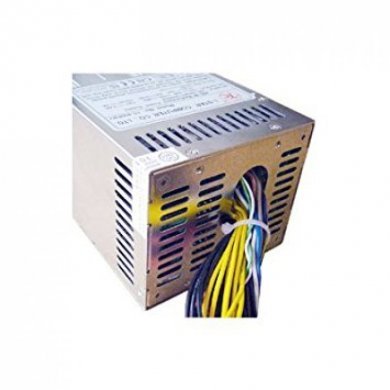

TC-400R2U Fonte Redundante 2U 2x 400W Sure Star

TC-400R2U Fonte Redundante 2U 2x 400W Sure Star 2x Fontes de 400W + Baia de Redundancia

Condição de TC-400R2U:
Novo em embalagem comercial

Garantia  de  TC-400R2U:
12 meses direto com a Net Computadores

ESPECIFICATIONS:
> TEMPERATURE RANGE: Operation 0-~50-
> HOLD UP TIME: 16ms at maximum load & normal input voltage
> EFFICIENCY: 73% TYPICAL(Normal Line)
> ATX 12V / EPS 12V
> POWER GOOD SIGNAL: Should be asserted high to indicate that+5VDC and +3.3VDC output are above the low voltage thresholds. Compatible signal out with 100ms to 500ms.
> OVER POWER PROTECTION: The power supply shall shout down output power exceeds 130% to 160%
> OVER VOLTAGE PROTECTION: +5V, +3.3V and +12V DC outputs set at 110%-130%
> SHORT CIRCUIT PROTECTION: A short circuit placed between the DC xx and the output shall cause no damage and the power supply shall shutdown.
> EMI: FCC part 15, subpart B, Class B, EN55022 CISPR22 Class B.
> Meet EN-61000-3-2 CLASS D ( Active PFC )
> AGENCY APPROVALS:UL60950, CAN/CSA22.2 No.60950, TUV(IEC60950)
> MTBF OF POWER SUPPLY ELECTRONNIS: 100,000 hours at 25-. LIFE EXPCTANCY OF FAN 40,000 hours at 40-
> COOLING: By forced air 1x40mm Fan (Each module)
> DIMENSION:D280 X W101 X H84mm

Maiores detalhes de TC-400R2U no site do fabricante:
http://www.tc-istar.com/product/tc-400r2u.htm
