R$ 2.288,00
à vista no Pix ou Boleto
ou R$ 2.408,00 em 1x no cartão (via site)
ou R$ 2.541,78 no cartão em até 10x sem juros (apenas na loja física)
R$ 2.288,00
à vista no Pix ou Boleto
R$ 2.408,00
em 1x no cartão (via site)
R$ 2.541,78 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 2.288,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176259
Condição de TCC-100: Novo em embalagem comercial
Garantia de TCC-100: 12 meses direto com a Net Computadores
| Power Requirements | |
| Power Consumption | TCC-100/100-T: 85 mA @ 12 V TCC-100I/100I-T: 150 mA @ 12 V |
| Input Voltage | 12 to 48 VDC |
| Voltage Reversal Protection | Protects against V /V- reversal |
| Source of Input Power | Power input jack |
| Over Current Protection | Protects against two signals shorted together |
| RS-232 Side | |
| Signals | TxD, RxD, RTS, CTS, GND |
| Connector | DB9 female |
| RS-422/485 Side | |
| Signals | (interface selected by DIP switch) RS-422: TxD , TxD-, RxD , RxD-, RTS, CTS, GND RS-485-4w: TxD , TxD-, RxD , RxD-, GND RS-485-2w: Data , Data-, GND |
| Connector | Terminal Block |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Environmental Limits | |
| Operating Temperature | Standard Models: -20 to 60C (-4 to 140F) Wide Temp. Models: -40 to 85C (-40 to 185F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| MTBF (mean time between failures) | |
| Time | 3,017,857 hrs |
| Database | MIL-HDBK-217F |
| Physical Characteristics | |
| Weight | 148 5 g |
| Dimensions | 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in) |
| Housing | Aluminum |
| Standards and Certifications | |
| EMI | FCC Part 15 Subpart B Class B |
| Safety | UL 60950-1 |
| EMS | IEC 61000-4-2 (ESD) Level 2, IEC 61000-4-3 (RS) Level 2, IEC 61000-4-4 (EFT) Level 2, IEC 61000-4-5 (Surge) Level 2, IEC 61000-4-6 (CS) Level 2, IEC 61000-4-8 (SFMF) Level 1 |
| EMC | CE, FCC |
| Green Product | RoHS, CRoHS, WEEE |
| Serial Communication | |
| ESD Protection | 15 KV |
| Optical Isolation | 2 KV (TCC-100I/100I-T) |
| Baudrate | 50 bps to 921.6 Kbps |
Tags de TCC-100: TCC-100, TCC-100I, TCC100I, TCC 100I, TCC-100IMoxa, Moxa RS232 to RS422/485 DIN-Rail mountable serial converter, DB9F to terminal block w/surge protection optical isolation, conversor moxa, converter moxa, conversor moxa rs-232, conversor moxa rs-422, conversor moxa rs-485, conversor rs232, conversor rs422, conversor rs485, Moxa TCC-100I, Interface converter RS-232 for RS-485, Interface converter RS-232 for RS-485 2/4-wire for use with DIN RAIL TS35, TCC-100I, MOXA

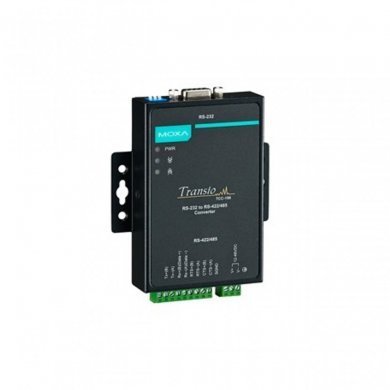

TCC-100 Moxa Conversor industrial RS232 para RS422/485
Condição de TCC-100:
Novo em embalagem comercial
Garantia de TCC-100:
12 meses direto com a Net Computadores
| Power Requirements | |
| Power Consumption | TCC-100/100-T: 85 mA @ 12 V TCC-100I/100I-T: 150 mA @ 12 V |
| Input Voltage | 12 to 48 VDC |
| Voltage Reversal Protection | Protects against V /V- reversal |
| Source of Input Power | Power input jack |
| Over Current Protection | Protects against two signals shorted together |
| RS-232 Side | |
| Signals | TxD, RxD, RTS, CTS, GND |
| Connector | DB9 female |
| RS-422/485 Side | |
| Signals | (interface selected by DIP switch) RS-422: TxD , TxD-, RxD , RxD-, RTS, CTS, GND RS-485-4w: TxD , TxD-, RxD , RxD-, GND RS-485-2w: Data , Data-, GND |
| Connector | Terminal Block |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Environmental Limits | |
| Operating Temperature | Standard Models: -20 to 60C (-4 to 140F) Wide Temp. Models: -40 to 85C (-40 to 185F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| MTBF (mean time between failures) | |
| Time | 3,017,857 hrs |
| Database | MIL-HDBK-217F |
| Physical Characteristics | |
| Weight | 148 5 g |
| Dimensions | 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in) |
| Housing | Aluminum |
| Standards and Certifications | |
| EMI | FCC Part 15 Subpart B Class B |
| Safety | UL 60950-1 |
| EMS | IEC 61000-4-2 (ESD) Level 2, IEC 61000-4-3 (RS) Level 2, IEC 61000-4-4 (EFT) Level 2, IEC 61000-4-5 (Surge) Level 2, IEC 61000-4-6 (CS) Level 2, IEC 61000-4-8 (SFMF) Level 1 |
| EMC | CE, FCC |
| Green Product | RoHS, CRoHS, WEEE |
| Serial Communication | |
| ESD Protection | 15 KV |
| Optical Isolation | 2 KV (TCC-100I/100I-T) |
| Baudrate | 50 bps to 921.6 Kbps |
Tags de TCC-100: TCC-100, TCC-100I, TCC100I, TCC 100I, TCC-100IMoxa, Moxa RS232 to RS422/485 DIN-Rail mountable serial converter, DB9F to terminal block w/surge protection optical isolation, conversor moxa, converter moxa, conversor moxa rs-232, conversor moxa rs-422, conversor moxa rs-485, conversor rs232, conversor rs422, conversor rs485, Moxa TCC-100I, Interface converter RS-232 for RS-485, Interface converter RS-232 for RS-485 2/4-wire for use with DIN RAIL TS35, TCC-100I, MOXA
