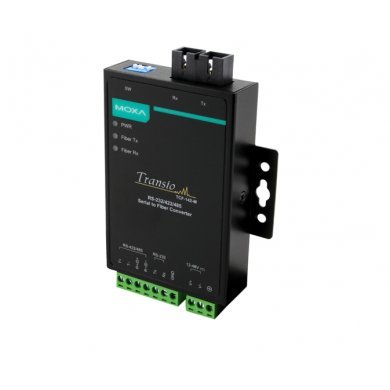

TCF-142-M-SC Moxa Conversor Industrial RS232/422/485

Para Fibra Óptica Multi-mode SC Connector

TCF-142-M-SC - MOXA
TCF-142-M-SC Moxa Conversor Industrial RS232/422/485
TCF-142-M-SC Moxa Conversor Industrial RS232/422/485
clique para ampliar
*As imagens podem ser ilustrativas
TCF-142-M-SC Moxa Conversor Industrial RS232/422/485

R$ 3.758,00

à vista no Pix ou Boleto

ou R$ 3.955,07 em 1x no cartão (via site)

ou R$ 4.174,80 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.758,00

à vista no Pix ou Boleto

R$ 3.955,07
em 1x no cartão (via site)

R$ 4.174,80 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
84733099

R$ 3.758,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733099

TCF-142-M-SC Moxa Conversor Industrial RS232/422/485
Para Fibra Óptica Multi-mode SC Connector

Condição de TCF-142-M-SC:    Novo em embalagem comercial

Garantia  de  TCF-142-M-SC:     12 meses direto com a Net Computadores



Optical Fiber Side
Fiber Connector    SC or ST
Cable Requirements    Singlemode: 8.3/125, 8.7/125, 9/125, or 10/125 m
Multimode: 50/125, 62.5/125, or 100/140 m
Transmission Distance    Singlemode: 40 km
Multimode: 5 km
Wavelength    Singlemode: 1310 nm
Multimode: 850 nm
Tx Output    Singlemode: > 5 dBm
Multimode: > 5 dBm
Rx Sensitivity    Singlemode: 25 dBm
Multimode: 20 dBm
PointtoPoint Transmission    Halfduplex or fullduplex
Ring Transmission    Halfduplex
RS232/422/485 Side
Connector    Terminal Block
RS232 Signals    Tx, Rx, GND
RS422 Signals    TxD , TxD, RxD , RxD, GND
RS4854w Signals    TxD , TxD, RxD , RxD, GND
RS4852w Signals    Data , Data, GND
Baudrate    50 bps to 921.6 Kbps
ESD Protection    15 KV for all signals
Physical Characteristics
Housing    Aluminum (1 mm)
Dimensions    Without ears: 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in)
With ears: 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)
Weight    320 g
Environmental Limits
Operating Temperature    Standard Models: 0 to 60C (32 to 140F)
Wide Temp. Models: 40 to 75C (40 to 167F)
Storage Temperature    40 to 75C (40 to 167F)
Ambient Relative Humidity    5 to 95% (noncondensing)
Power Requirements
Input Voltage    12 to 48 VDC
Power Consumption    140 mA @ 12 V
Power Line Protection    2 KV Burst (EFT), EN6100044
2 KV Surge, EN6100045
Voltage Reversal Protection    Protects against V /V reversal
Over Current Protection    1.1 A (protects against two signals shorted together)
Standards and Certifications
Safety    UL 609501
EMC    CE, FCC
EMI    FCC Part 15 Subpart B Class B, EN 55022 Class B
EMS    EN 6100042 (ESD) Level 3,
EN 6100043 (RS) Level 2,
EN 6100044 (EFT) Level 2,
EN 6100045 (Surge) Level 2,
EN 6100046 (CS) Level 2,
EN 6100048 (SFMF) Level 1
Green Product    RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time    780,480 hrs
Database    Telcordia (Bellcore), GB

Tags de TCF-142-M-SC: TCF-142-M-SC, Moxa TCF-142-M-SC, Moxa Store TCF-142-M-SC, Conversor Moxa TCF-142-M-SC, Conversor Moxa TCF-142, TCF-142, Conversor Moxa, Moxa SC, Conversor Industrial SC, Conversor Industrial, MOXA

TCF-142-M-SC Moxa Conversor Industrial RS232/422/485 Para Fibra Óptica Multi-mode SC Connector

Condição de TCF-142-M-SC:
Novo em embalagem comercial

Garantia  de  TCF-142-M-SC:
12 meses direto com a Net Computadores


Optical Fiber Side
Fiber Connector    SC or ST
Cable Requirements    Singlemode: 8.3/125, 8.7/125, 9/125, or 10/125 m
Multimode: 50/125, 62.5/125, or 100/140 m
Transmission Distance    Singlemode: 40 km
Multimode: 5 km
Wavelength    Singlemode: 1310 nm
Multimode: 850 nm
Tx Output    Singlemode: > 5 dBm
Multimode: > 5 dBm
Rx Sensitivity    Singlemode: 25 dBm
Multimode: 20 dBm
PointtoPoint Transmission    Halfduplex or fullduplex
Ring Transmission    Halfduplex
RS232/422/485 Side
Connector    Terminal Block
RS232 Signals    Tx, Rx, GND
RS422 Signals    TxD , TxD, RxD , RxD, GND
RS4854w Signals    TxD , TxD, RxD , RxD, GND
RS4852w Signals    Data , Data, GND
Baudrate    50 bps to 921.6 Kbps
ESD Protection    15 KV for all signals
Physical Characteristics
Housing    Aluminum (1 mm)
Dimensions    Without ears: 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in)
With ears: 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)
Weight    320 g
Environmental Limits
Operating Temperature    Standard Models: 0 to 60C (32 to 140F)
Wide Temp. Models: 40 to 75C (40 to 167F)
Storage Temperature    40 to 75C (40 to 167F)
Ambient Relative Humidity    5 to 95% (noncondensing)
Power Requirements
Input Voltage    12 to 48 VDC
Power Consumption    140 mA @ 12 V
Power Line Protection    2 KV Burst (EFT), EN6100044
2 KV Surge, EN6100045
Voltage Reversal Protection    Protects against V /V reversal
Over Current Protection    1.1 A (protects against two signals shorted together)
Standards and Certifications
Safety    UL 609501
EMC    CE, FCC
EMI    FCC Part 15 Subpart B Class B, EN 55022 Class B
EMS    EN 6100042 (ESD) Level 3,
EN 6100043 (RS) Level 2,
EN 6100044 (EFT) Level 2,
EN 6100045 (Surge) Level 2,
EN 6100046 (CS) Level 2,
EN 6100048 (SFMF) Level 1
Green Product    RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time    780,480 hrs
Database    Telcordia (Bellcore), GB

Tags de TCF-142-M-SC: TCF-142-M-SC, Moxa TCF-142-M-SC, Moxa Store TCF-142-M-SC, Conversor Moxa TCF-142-M-SC, Conversor Moxa TCF-142, TCF-142, Conversor Moxa, Moxa SC, Conversor Industrial SC, Conversor Industrial, MOXA
