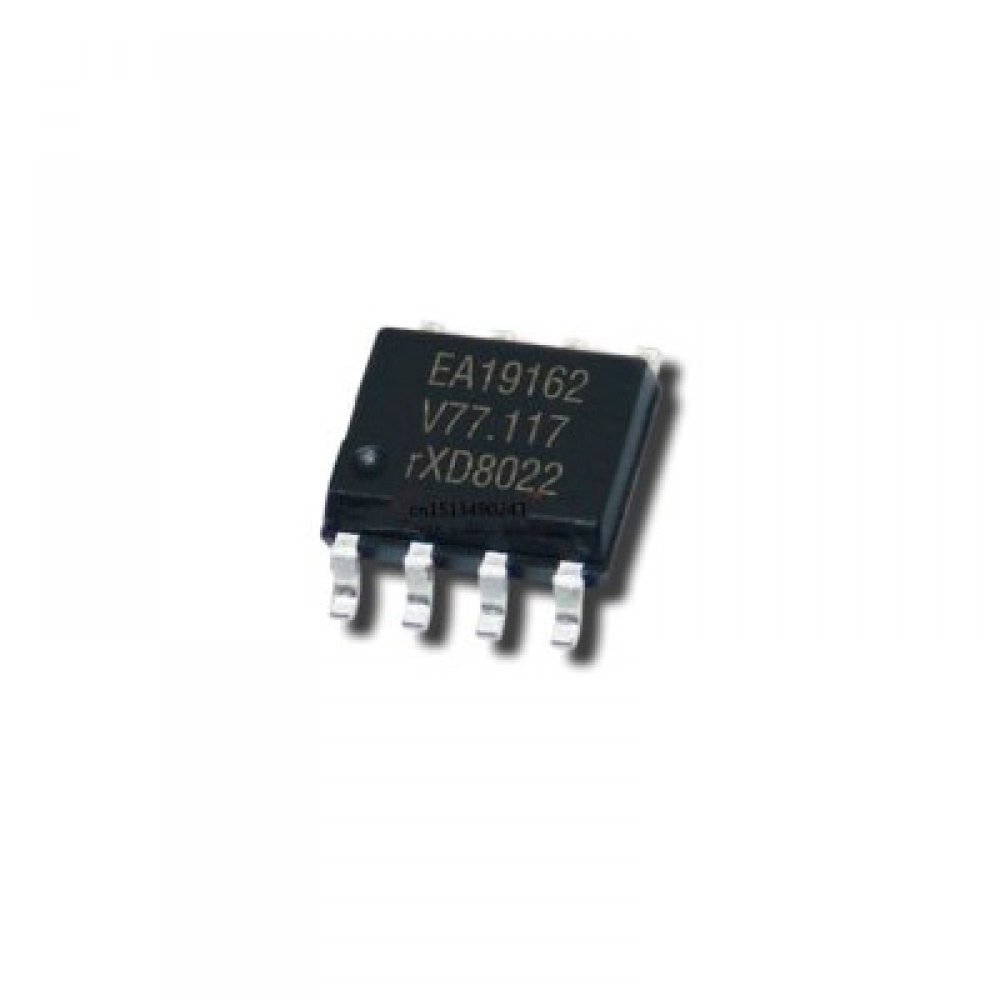

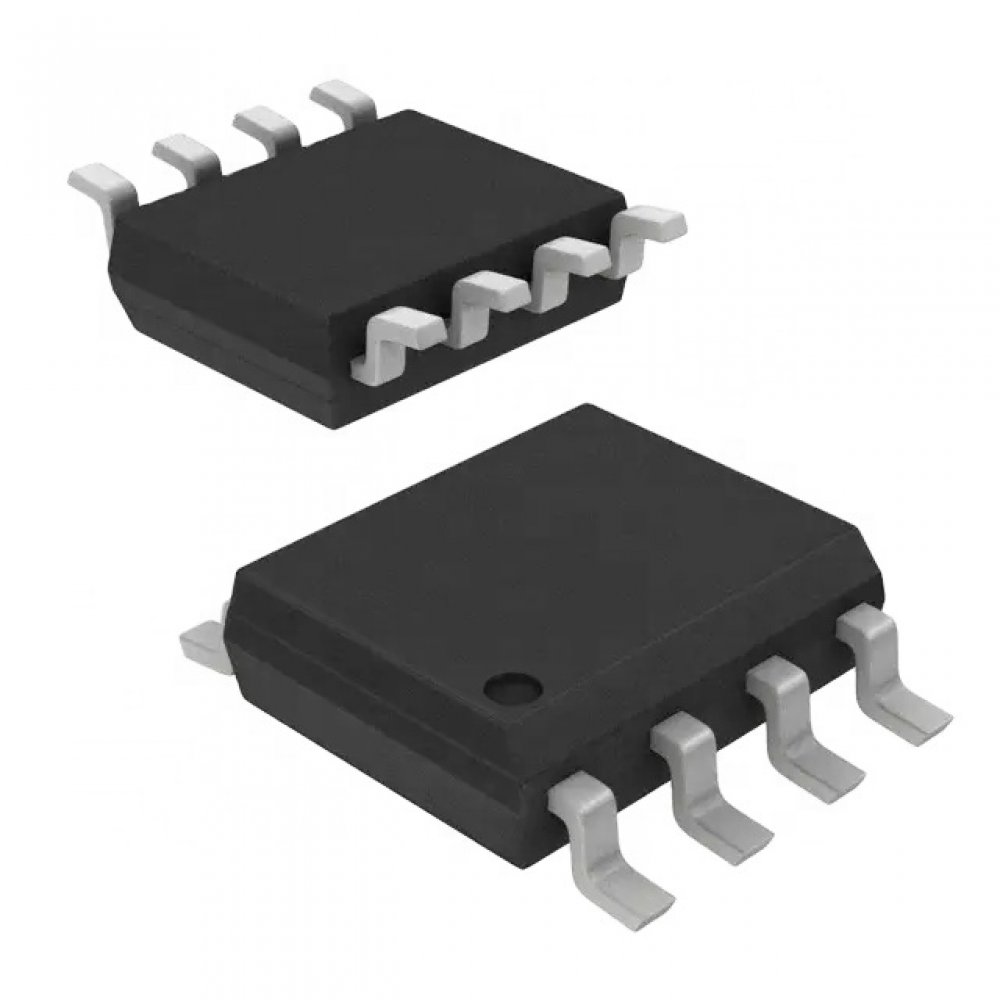

TEA19162T IC PFC Controller

Condição de TEA19162T: Novo em embalagem comercial

Garantia de TEA19162T: 3 meses direto com a Net Computadores

The TEA19162T and TEA19161T are a combined controller (combo) ICs for resonant topologies including PFC. They provide high efficiency at all power levels. Together with the TEA1995T dual LLC resonant SR controller, a cost-effective resonant power supply can be built. This power supply meets the efficiency regulations of Energy Star, the Department of Energy (DoE), the Eco-design Directive of the European Union, the European Code of Conduct, and other guidelines.

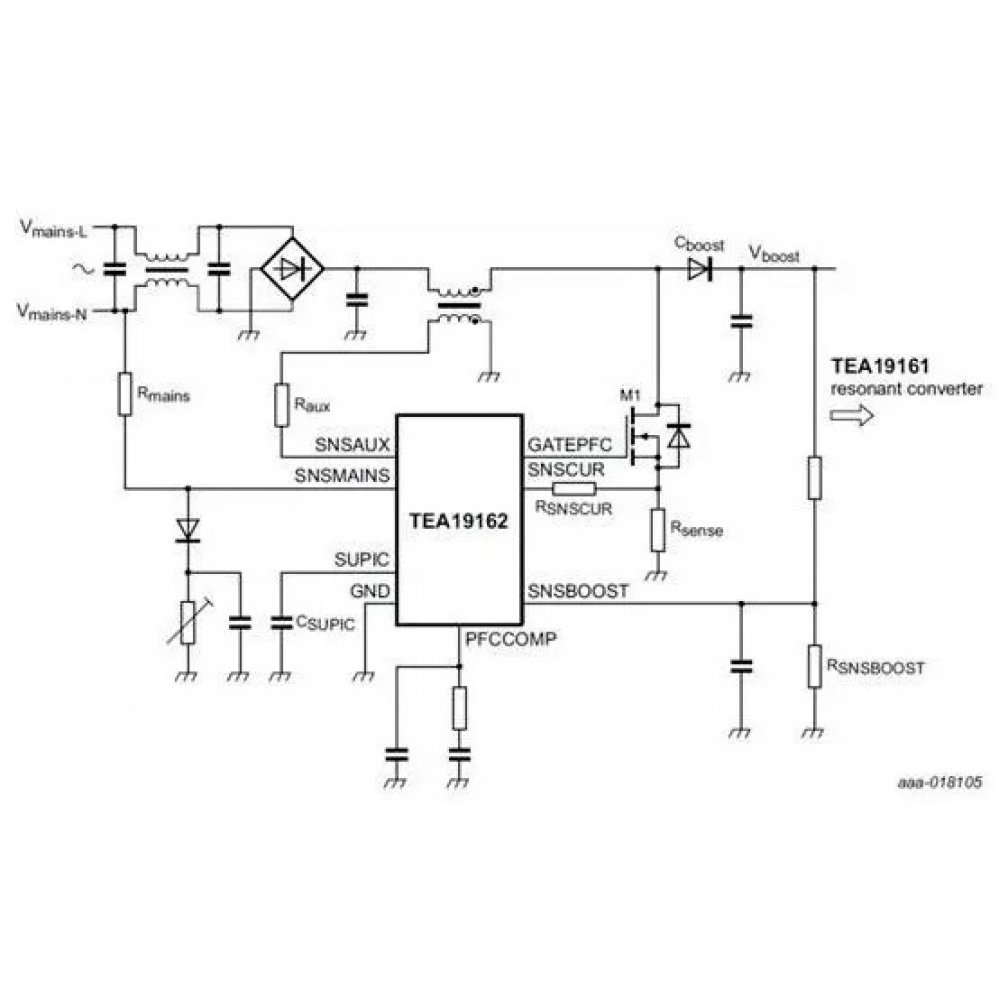

The TEA19162T is a Power Factor Correction (PFC) controller. The IC communicates with theTEA19161T on start-up sequence and protections. It also enables a fast latch reset mechanism. To maximize the overall system efficiency, the TEA19161T allows setting the TEA19162T PFC to burst mode at a low output power level.

The TEA19162HT/2 is recommended for applications that require high-power factor performance, like energy star 80 gold, platinum or titanium.
Less

Features

Distinctive features:
- Complete ality as TEA19161T/TEA19162T combo
- Integrated X-capacitor discharge without additional external components
- Universal mains supply operation (70 V (AC) to 276 V (AC))
- Integrated soft start and soft stop
- Accurate boost voltage regulation
Green features:
- Valley/zero voltage switching for minimum switching losses
- Frequency limitation to reduce switching losses
- Reduced supply current (200 -A) when in burst mode
Protection features:
- Safe restart mode for system fault conditions
- Continuous mode protection with demagnetization detection
- Accurate OverVoltage Protection (OVP)
- Open-Loop Protection (OLP)
- Short-Circuit Protection (SCP)
- Internal and external IC OverTemperature Protection (OTP)
- Low and adjustable OverCurrent Protection (OCP) trip level
- Adjustable brownin/brownout protection
- Supply Undervoltage Protection (UVP)

Maiores detalhes de TEA19162T no site do fabricante:
https://www.nxp.com/products/power-management/ac-dc-solutions/ac-dc-controllers-

Tags de TEA19162T: TEA19162T/3J, TEA19162T, TEA19162, EA19162, 19162, TEA19161, TEA19161T, Switching Controllers Resonant power supply control IC, PMIC - Power Management ICs, Digital controller for high-efficiency resonant power supply, TEA1995T dual LLC resonant SR controller, TEA19162, ci PFC de fonte ATX, Ci para PFC fonte ATX, CI PFC, PFC ic, TEA1995T, NXP Semiconductor
