TFS761HG Ci conversor de tensão Forward Flyback 383W

Power Supply Controllers with Integrated High Voltage MOSFETs / eSIP-16B

TFS761HG Ci conversor de tensão Forward Flyback 383W

*As imagens podem ser ilustrativas

Ci conversor de tensão Forward Flyback 383W

em estoque, envio imediato

R$ 59,00

à vista no Pix ou Boleto

ou R$ 62,11 em 1x no cartão (via site)

ou R$ 65,56 no cartão em até 10x sem juros (apenas na loja física)

R$ 59,00

à vista no Pix ou Boleto

R$ 62,11
em 1x no cartão (via site)

R$ 65,56 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem antiestática

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 59,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar TFS761HG

TFS761HG Ci conversor de tensão Forward Flyback 383W
Power Supply Controllers with Integrated High Voltage MOSFETs / eSIP-16B

Condição de TFS761HG: Novo em embalagem antiestática

Garantia de TFS761HG: 3 meses direto com a Net Computadores

Key Benefits
Single chip solution for two-switch forward main and flyback standby
High integration allows smaller form factor and higher power density designs
Incorporates control, gate drivers, and three power MOSFETS
Level shift technology eliminates need for pulse transformer
Protection features include: UV, OV, OTP, OCP, and SCP
Transformer reset control
Prevents transformer saturation under all conditions
Allows >50% duty cycle operation
Reduces primary side RMS currents and conduction losses
Standby supply provides built-in overload power compensation
Up to 434 W total output power in a highly compact package
Up to 550 W peak
High efficiency solution easily enables design to meet stringent efficiency specifications
>90% efficiency at full load
No-load regulation and low losses at light-load
Simple clip mounting to heat sink without need for insulation pad
Halogen free and RoHS compliant

Applications
PC Printer
LCD TV
Video game consoles
High-power adapters
Industrial and appliance high-power adapters

Manufacturer:	Power Integrations
Product Category:	Switching Controllers

Number of Outputs:	1 Output
Switching Frequency:	66 kHz
Duty Cycle - Max:	73 %
Output Voltage:	100 V to 400 V
Mounting Style:	Through Hole

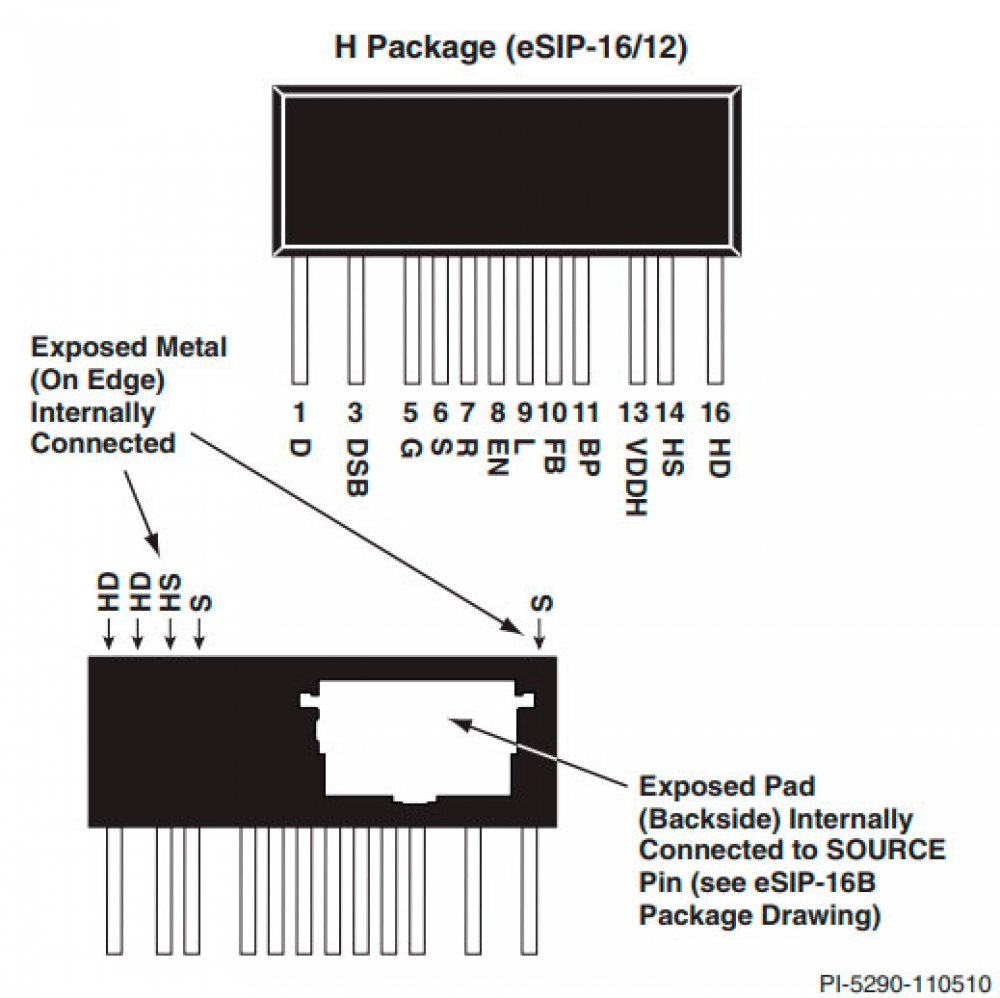

Package / Case:	eSIP-16B
Packaging:	Tube
Brand:	Power Integrations
Output Power:	383 W
Product:	Voltage Converters
Product Type:	Switching Controllers
Series:	HiperTFS-2

Tags de TFS761HG: TFS757-764HG, Tfs761hg, Tfs 761hg, Tfs761 Hg, Esip12, eSIP-16B, Power Integrations

TFS761HG Ci conversor de tensão Forward Flyback 383W Power Supply Controllers with Integrated High Voltage MOSFETs / eSIP-16B

Condição de TFS761HG:
Novo em embalagem antiestática

Garantia de TFS761HG:
3 meses direto com a Net Computadores

Manufacturer:	Power Integrations
Product Category:	Switching Controllers

Number of Outputs:	1 Output
Switching Frequency:	66 kHz
Duty Cycle - Max:	73 %
Output Voltage:	100 V to 400 V
Mounting Style:	Through Hole
Package / Case:	eSIP-16B
Packaging:	Tube
Brand:	Power Integrations
Output Power:	383 W
Product:	Voltage Converters
Product Type:	Switching Controllers
Series:	HiperTFS-2
