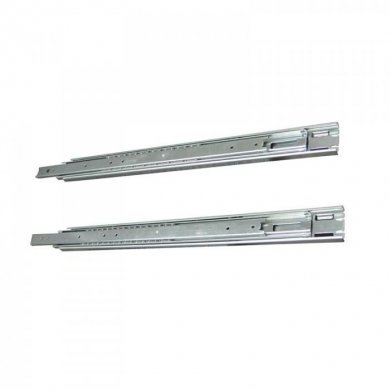

TGC-03A TGC Kit Trilho Chassis Server Rack 600mm

TGC-03A TGC Kit Trilho Chassis Server Rack 600mm Para Chassis de 2U a 5U por 600mm

Condição de TGC-03A:
Novo em embalagem comercial

Garantia  de  TGC-03A:
3 meses direto com a Net Computadores

• 2U to 5U height, 26 3-sections Ball Bearing Slide Rail.
• Heavy-Duty 15 gauge cold rolled steel inner, intermediate and outer member, compare to third-party‘s 10-12 gauge.
• Ball bearings provide precise linear motion with smooth, silent travel.
• Lock-open to secure the chassis in position for easy access, more tapped screw holes on outer member, easy-mount, quick-disconnect design.
• Load rating up to 130 Lbs.
• W/additional dia. 4.4 x 35mm slotted mounting holes (5x), mountable to most chassis (chassis width <= 430mm)
• Standard screws #10-32 & Metric screws M4x6, M5x12 included.
• Extendable to 38 depth.
• Weight 11 lb
• 26L x 1.79H x 0.5 Thickness

• Materail: Metal , 600mm
• Supporting: Universal Slide-rails for U-Style server (TGC models)
• Section: 3
• Max loading: 35kgs
