Fontes de Alimentação / Fonte para Servidores / Não Redundante / 2U / TGC-SG2U700

Fontes de Alimentação / Fonte para Servidores

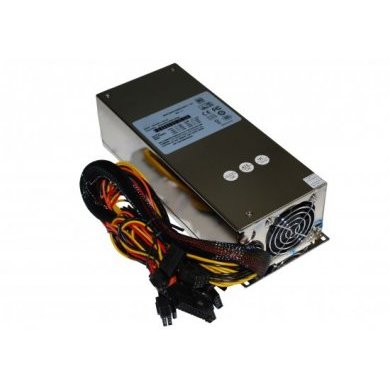

TGC-SG2U700 Fonte 2U 600W TGC 80 PLUS PFC

Name: TGC-SG2U700 Fonte 2U 600W TGC 80 PLUS PFC
Brand: TGC
SKU: TGC-SG2U700
Price: 856.00 BRL
Availability: InStock

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 856,00

à vista no Pix ou Boleto

ou R$ 900,23 em 1x no cartão (via site)

ou R$ 950,25 no cartão em até 10x sem juros (apenas na loja física)

R$ 856,00

à vista no Pix ou Boleto

R$ 900,23
em 1x no cartão (via site)

R$ 950,25 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

6 meses direto com a Net Computadores

NCM:

84733011

Condição:
Novo em embalagem comercial

Garantia:
6 meses direto com a Net Computadores

NCM: 84733011

Cotação PJ mais de uma unidade

Indicar TGC-SG2U700

TGC-SG2U700 Fonte 2U 600W TGC 80 PLUS PFC

Condição de TGC-SG2U700: Novo em embalagem comercial

Garantia de TGC-SG2U700: 6 meses direto com a Net Computadores

FEATURES：
Compliance 80PLUS
Comply with 2U IPC Industrial PC specifications
Rated watts is 600W continuous power output. Peak Watts 700W
90-264VAC Wide voltage input
Low noise, low ripple, high efficiency (80% minimum)
Pass O ~ 50 ℃ Environment temperature test
Product Dimensions:240mm x 100mm x 70.5mm
Double Convection fan：6025mm*1;6020mm*1 Dual ball-bearing silent fan
Life cycle: ≥ 100KH hours
Active Power Factor Correction (PFC> 99%)
complete protection functions: over-current, over voltage, under voltage,
Passed safety certification: CE, FCC, CB
SPECIFICATIONS:
Output Wattage Rated, 600W continuous, Peak Watts 700W.
PFC (Power Factor Correction) Active PFC
Efficiency > 80% (at full load)
P. G signal 100-500 ms
Hold-up Time 16ms Minimum
weight 1.3 KG
Color: Metallic Silver
Fans: Dual Ball-bearing fans (6025*1；6020*1)
Product Dimensions: 240mm (L) x 100mm(W) x 70.5mm(H)
Protection: Over current protection, over voltage protection, under voltage protection, over power protection, short circuit protection

Output Interface:
Output voltage and Amps：
+3.3v 20A
+5v 30A
+12v 25A rail 1
+12v 25A rail 2
+5VSB 2.5A
-12v 0.5A
Output Plugs and cables：
4 x Molex-4Pin, 35cm - 65cm
5 x SATA, 35cm - 65cm
1 x 24Pin, 45cm
2 x (4 Pin + 4 Pin) or 2 x 8 Pin EPS, 1 x 35cm 1 x 45cm

Maiores detalhes de TGC-SG2U700 no site do fabricante:
http://www.tgcipc.com/pt/product.php?mod=detail&id=10

Tags de TGC-SG2U700: TGC-SG2U700, SG2U700, TGC-2308, TGC 2308, TGC2308, SG2U700, SG2U700S, TGC-SG2U700S, TGC
