Rede / Switch até 20 Portas / TL2-FG142

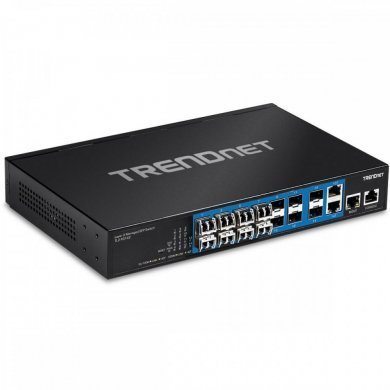

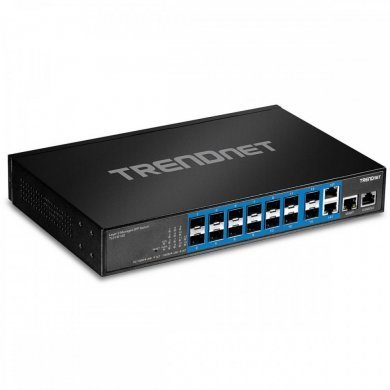

TL2-FG142 Trendnet Switch Gigabit 14 portas SFP

Name: TL2-FG142 Trendnet Switch Gigabit 14 portas SFP
Brand: TRENDnet
SKU: TL2-FG142
Price: 4852.00 BRL
Availability: InStock

+ 2 portas RJ45 gigabit compartilhada

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 4.852,00

à vista no Pix ou Boleto

ou R$ 5.106,85 em 1x no cartão (via site)

ou R$ 5.390,57 no cartão em até 10x sem juros (apenas na loja física)

R$ 4.852,00

à vista no Pix ou Boleto

R$ 5.106,85
em 1x no cartão (via site)

R$ 5.390,57 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

85176239

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85176239

Cotação PJ mais de uma unidade

Indicar TL2-FG142

TL2-FG142 Trendnet Switch Gigabit 14 portas SFP
+ 2 portas RJ45 gigabit compartilhada

Condição de TL2-FG142: Novo em embalagem comercial

Garantia de TL2-FG142: 12 meses Assist. Técnica do Fabricante

Standards	ITU-T G.8013/Y.1731 IEEE 802.1ag IEEE 802.3ah IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.1ad IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3az (RJ-45 ports only) IEEE 802.3ab IEEE 802.1ax IEEE 802.3z
Device Interface	12 x SFP slots (100/1000Mbps) 2 x Shared Gigabit ports (RJ-45 or SFP slots) 1 x RJ-45 management port (in-band) 1 x RJ-45 console port (out-of-band) Ground point LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switching capacity: 28Gbps RAM buffer: 128MB MAC address table: 8K entries Jumbo frames: 9.6KB (configurable per port) Forwarding mode: store and forward Forwarding rate: 20.8Mpps (64-byte packet size)
Management	CLI (Console / Telnet / SSHv2) HTTP / HTTPS web based GUI SNMP v1, v2c, v3 SNMP trap RMON groups 1/2/3/9 LLDP/LLDP-MED with optional TLVs ICMPv4/ICMPv6 IPv4/IPv6 IPv6 neighbor discovery DNS proxy Network time protocol (NTP) Green Ethernet/EEE or 802.3az per port Dual image
Monitoring	CPU load IP interfaces/routing table Internal system logging External syslog Port traffic statistics QoS queue counters QCL control list Port mirror (One to one, many to one) EVC (Ethernet Virtual Connection) statistics MAC address table Digital diagnostics monitoring (DDM) for SFP modules RFC2544 support SFlow statistics
MIB	MIB II RFC 1213 Bridge MIB IEEE8021-Q RMON (Group 1,2,3,9) RFC 2819 Interface group MIB using SMIv2 RFC 2863 Multicast group membership discovery MIB RFC 5519 SNMP management frameworks RFC 3411 User-based security model for SNMPv3 RFC 3414 View-based access control model for SNMP RFC 3415 Ethernet-like MIB RFC 3635 802.3 MAU MIB RFC 3636 Entity MIB v3 RFC 4133 Bridge MIB RFC 4188 IP MIB RFC 4293 RADIUS authentication client MIB RFC 4668 RADIUS accounting MIB RFC 4670 LLDP-MIB IEEE802.1AB PAE MIB IEEE802.1X
Spanning Tree	Spanning tree protocol (STP) Rapid spanning tree protocol (RSTP) Multiple spanning tree protocol (MSTP)
Link Aggregation	Static link aggregation and 802.3ad dynamic LACP (Up to 15 groups)
Quality of Service (QoS)	Class of service (CoS) Set default drop precedence (DPL), priority code point (PCP), drop eligible indicator (DEI) Differentiated Services Code Point (DSCP) classification and translation Set egress port scheduler, port shaping, port tag marking Bandwidth control per port/rate limiting Queue scheduling: strict priority (SP), deficit weighted round robin (DWRR)
Storm Control	Broadcast (Min. limit: 1pps) Multicast (Min. limit: 1pps) Unicast (Min. limit: 1pps)
VLAN	802.1Q tagged VLAN 802.1ad VLAN Q-in-Q Group VLAN Registration Protocol (GVRP) MAC-based VLAN Protocol-based VLAN VLAN ID range 1-4095 Private VLAN/port isolation Voice VLAN (16 user defined OUIs) VLAN port to group and VID translation
Carrier Ethernet / OAM	IEEE 802.1ag Connectivity Fault Management (CFM) IEEE 802.3ah Link OAM Per port per queue dual leaky bucket service policers with PCP or DSCP marking per service point Statistics and tagging options per service point Y.1731 Fault Management (AIS, RDI, LCK) Y.1731 Performance Management (LM, DM) RFC2544 support Link OAM statistics, port status, event status Link state tracking Link OAM MIB Retrieval Maintenance entity point (MEP)
Link Protection	ITU-T G.8032/Y.1344 Ethernet ring protection switching (ERPS) ITU-T G.8031/Y.1342 Ethernet linear protection switching
L3 Features	IPv4 / IPv6 static routing IPv4 interfaces: Up to 8 IPv6 interfaces: Up to 8 Routing table entries: Up to 32 (IPv4 / IPv6) ARP table (up to 1024 entries) DHCP IPv4 server, relay, option 82 Inter-VLAN routing
Multicast	IGMP snooping v1, v2, v3 IGMP fast leave Static multicast entries MLD Snooping v1, v2 Multicast VLAN Registration (MVR) Up to 1K multicast groups
Access Control	User account control with privilege level management Access management control Port Security/MAC address learning restriction (Up to 64 entries per port) 802.1X port-based/single/multiple or MAC-based authentication RADIUS (Up to 5 servers) TACACS (Up to 5 servers) RADIUS assigned QoS/VLAN/Guest VLAN Local dial in user authentication DHCP IPv4 snooping Loopback detection/prevention IP Source Guard Static/dynamic ARP inspection Create ACLs based on rate limit/EVC profile
Power	Input: 100 - 240V AC, 50/60 Hz Max. Consumption: 36W
Fan/Acoustics	Fanless design
MTBF	118,034 hours
Operating Temperature	0 - 50 C (32 - 122 F)
Operating Humidity	Max. 95% non-condensing
Dimensions	280 x 185 x 44.45mm (11.02 x 7.28 x 1.75 in.) Rack mountable 1U height Wall mountable
Weight	1.6 kg (3.52 lbs.)
Certifications	CE FCC UL

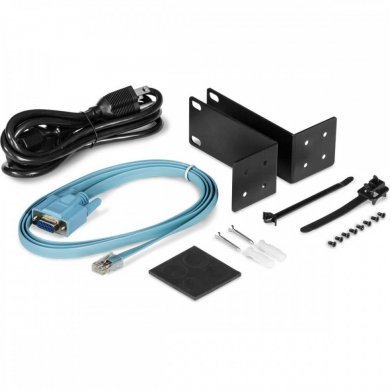

PACKAGE CONTENTS

TL2-FG142
Quick Installation Guide
Power cord
RJ-45 to RS-232 console cable (1.5m / 5 ft.)
Wall mount and Rackmount kit

Tags de TL2-FG142: TL2-FG142, TL2FG142, TL2 FG142, switch 14 portas, switch gigabit, switch trendnet, trendnet switch, switch, switches, switch de 14 portas, switch gigabit 14 portas, TRENDnet
