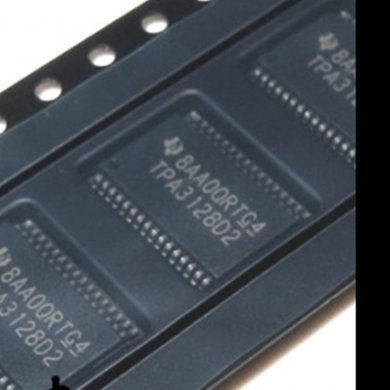

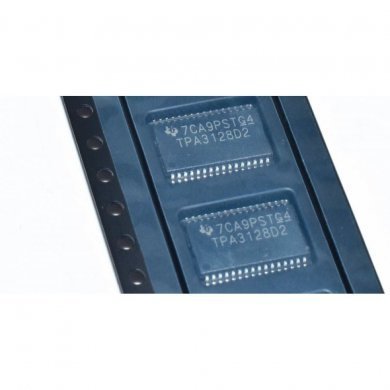

TPA3128D2 Ci amplificador Classe D 30W stereo 60W mono

Name: TPA3128D2 Ci amplificador Classe D 30W stereo 60W mono
Brand: Texas Instruments
SKU: TPA3128D2
Price: 44.00 BRL
Availability: InStock

4.5V to 26V

clique para ampliar

*As imagens podem ser ilustrativas

envio de 20 a 40 dias uteis

R$ 44,00

à vista no Pix ou Boleto

ou R$ 45,39 em 1x no cartão (via site)

ou R$ 47,91 no cartão em até 10x sem juros (apenas na loja física)

R$ 44,00

à vista no Pix ou Boleto

R$ 45,39
em 1x no cartão (via site)

R$ 47,91 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 44,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar TPA3128D2

TPA3128D2 Ci amplificador Classe D 30W stereo 60W mono
4.5V to 26V

Condição de TPA3128D2: Novo em embalagem antiestática

Garantia de TPA3128D2: 3 meses direto com a Net Computadores

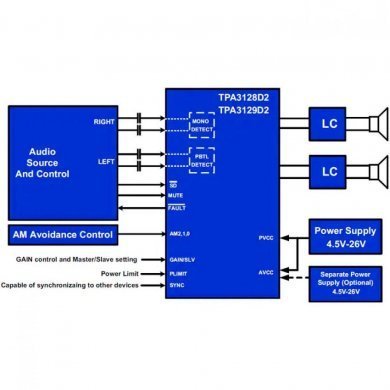

Texas Instruments TPA3128D2/TPA3129D2 Class-D Amplifiers have low idle power loss. This feature helps to extend the battery life of Bluetooth/Wireless speakers and other battery-powered audio systems.
The high efficiency of the TPA3128D2 device allows it to do 2x 30W without external heat sink on a dual layer PCB. The high efficiency of the TPA3129D2 device allows it to do 2x 15W without external heat sink on a dual layer PCB. Each device includes an efficiency boost Mode, which can dynamically reduce the current ripple of the external LC filter and the idle current. The TPA3128D2/TPA3129D2 advanced oscillator/PLL circuit employs a multiple switching frequency option.

This option allows the device to avoid AM interferences, which is achieved together with an option of either master or slave option making it possible to synchronize multiple devices.

FEATURES

Supports Multiple Output Configurations
- 230W Into a 8- BTL Load at 24V (TPA3128D2)
- 215W Into a 8- BTL Load at 15V (TPA3129D2)
Wide Voltage Range: 4.5V to 26V
Efficient Class-D Operation
- Very Low Idle Current: <23mA for recommended LC filter configurations
- Greater than 90% Power Efficiency Combined With Low Idle Loss Greatly Eliminates Need for Heat Sink
- Adaptive Modulation Schemes based on Output Power
- Smart Amplifier Drivers to Reduce the Requirement for RC Snubbers
Multiple Switching Frequencies
- AM Avoidance
- Master and Slave Synchronization
- 300KHz to 1.2MHz Switching Frequency

Feedback Power-Stage Architecture With High PSRR Reduces PSU Requirements
Programmable Power Limit
Parallel BTL Mode and Mono-Channel Mode Support
Supports Both Single and Dual Power Supply Modes
Integrated Self-Protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DC-Detect, and Short Circuit With Error Reporting
Thermally Enhanced Packages

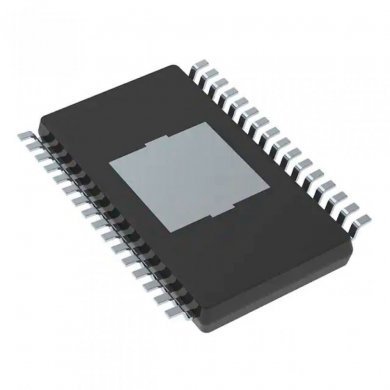

DAP (32-Pin HTSSOP Pad Down for TPA3128D2 and TPA3129D2)

APPLICATIONS

Bluetooth/Wireless Speakers
Soundbars
Mini-Micro Component, Docks
LCD-LED TVs
Home Theaters

Maiores detalhes de TPA3128D2 no site do fabricante:
https://www.ti.com/lit/ds/symlink/tpa3128d2.pdf?ts=1654260914679&ref_url=https%2

Tags de TPA3128D2: TPA3129D2, tpa3128, tpa3128d2, ci de audio charge4, ci audio charge4, jbl charge4 ci de audio, jbl chage 4 ci de audio, ci de audio jbl charge 4, 3128D2, Texas Instruments
