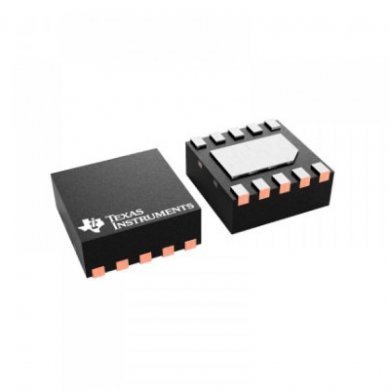

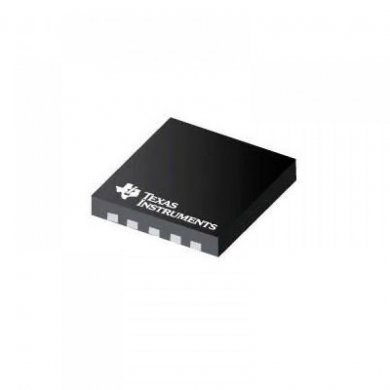

TPS51206 Ci regulador com VTTREF para DDR2/DDR3/DDR3L/DDR4

Name: TPS51206 Ci regulador com VTTREF para DDR2/DDR3/DDR3L/DDR4
Brand: Texas Instruments
SKU: TPS51206
Price: 16.00 BRL
Availability: InStock

input 3.1 to 6.4V 2A / WSON-10

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 16,00

à vista no Pix ou Boleto

ou R$ 15,99 em 1x no cartão (via site)

ou R$ 16,88 no cartão em até 10x sem juros (apenas na loja física)

R$ 16,00

à vista no Pix ou Boleto

R$ 15,99
em 1x no cartão (via site)

R$ 16,88 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 16,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar TPS51206

TPS51206 Ci regulador com VTTREF para DDR2/DDR3/DDR3L/DDR4
input 3.1 to 6.4V 2A / WSON-10

Condição de TPS51206: Novo em embalagem comercial

Garantia de TPS51206: 3 meses direto com a Net Computadores

Outros PNs para este item: TPS51206DSQR

2A Peak Sink/Source DDR Termination Regulator with VTTREF Buffered Reference for DDR2/3/3L/4
Power Management Specialized - PMIC 2A Peak Sink/Source DDR Term Reg

Description for the TPS51206
The TPS51206 device is a sink and source double date rate (DDR) termination regulator with VTTREF buffered reference output. It is specifically designed for low-input voltage, low-cost, low-external component count systems where space is a key consideration. The device maintains fast transient response and only requires 1 10-F of ceramic output capacitance. The device supports a remote sensing and all power requirements for DDR2, DDR3 and Low-Power DDR3 (DDR3L), and DDR4 VTT bus. The VTT current capability is 2-A peak. The device supports all of the DDR power states, putting VTT to High-Z in S3 state (suspend to RAM) and discharging VTT and VTTREF in S4 or S5 state (suspend to disk).

The TPS51206 device is available in 10-Pin, 2 mm 2 mm SON (DSQ) PowerPAD package and specified from 40C to 105C

Features for the TPS51206

Supply Input Voltage: Supports 3.3-V Rail and 5-V Rail
VLDOIN Input Voltage Range: VTT 0.4 V to 3.5 V
VTT Termination Regulator
- Output Voltage Range: 0.5 V to 0.9 V
- 2-A Peak Sink and Source Current
- Requires Only 10-F MLCC Output Capacitor
- 20 mV Accuracy
VTTREF Buffered Reference
- VDDQ/2 1% Accuracy
- 10-mA Sink and Source Current
Supports High-Z in S3 and Soft-Stop in S4 and S5 with S3 and S5 Inputs
Overtemperature Protection
10-Pin, 2 mm 2 mm SON (DSQ) Package

Maiores detalhes de TPS51206 no site do fabricante:
https://www.ti.com/product/TPS51206/part-details/TPS51206DSQR?utm_source=googlee

Tags de TPS51206: TPS1206, TPS51206DSQR, TPS51206, ci 1206, ic 1206 6AK, TPS51206EVM-745, CI REGULADOR DE TENSAO PARA MEMORIA, PMIC TPS51206, Texas Instruments

TPS51206 Ci regulador com VTTREF para DDR2/DDR3/DDR3L/DDR4 input 3.1 to 6.4V 2A / WSON-10

Condição de TPS51206:
Novo em embalagem comercial

Garantia de TPS51206:
3 meses direto com a Net Computadores

Outros PNs para este componente: TPS51206DSQR

Supply Input Voltage: Supports 3.3-V Rail and 5-V Rail
VLDOIN Input Voltage Range: VTT 0.4 V to 3.5 V
VTT Termination Regulator
- Output Voltage Range: 0.5 V to 0.9 V
- 2-A Peak Sink and Source Current
- Requires Only 10-F MLCC Output Capacitor
- 20 mV Accuracy
VTTREF Buffered Reference
- VDDQ/2 1% Accuracy
- 10-mA Sink and Source Current
Supports High-Z in S3 and Soft-Stop in S4 and S5 with S3 and S5 Inputs
Overtemperature Protection
10-Pin, 2 mm 2 mm SON (DSQ) Package
