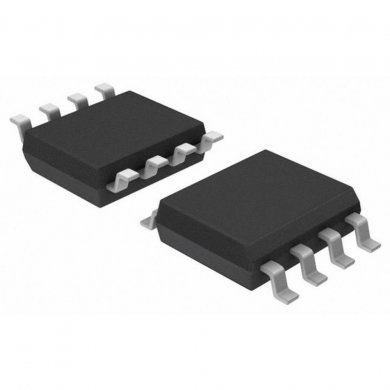

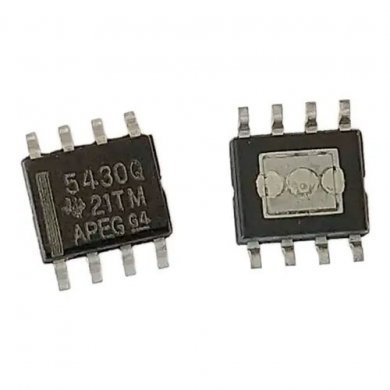

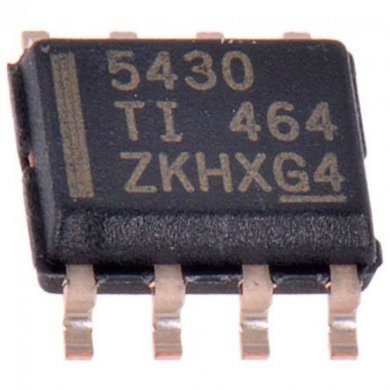

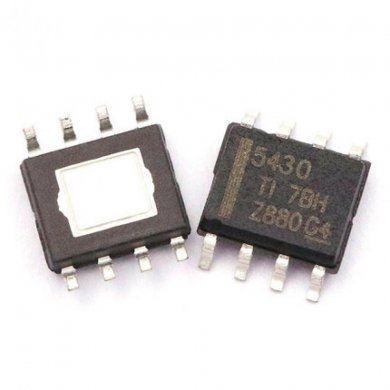

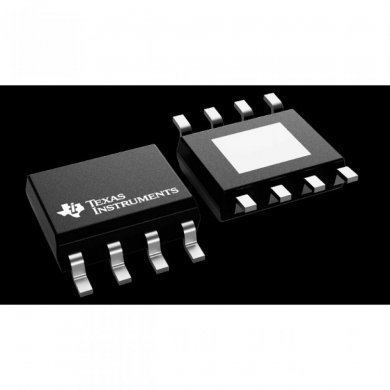

TPS5430DDAR 5.5V to 36V Input, 3A 500kHz Step-Down Converter

Name: TPS5430DDAR 5.5V to 36V Input, 3A 500kHz Step-Down Converter
Brand: Texas Instruments
SKU: TPS5430DDAR
Price: 19.00 BRL
Availability: InStock

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 19,00

à vista no Pix ou Boleto

ou R$ 19,47 em 1x no cartão (via site)

ou R$ 20,56 no cartão em até 10x sem juros (apenas na loja física)

R$ 19,00

à vista no Pix ou Boleto

R$ 19,47
em 1x no cartão (via site)

R$ 20,56 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 19,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar TPS5430DDAR

TPS5430DDAR 5.5V to 36V Input, 3A 500kHz Step-Down Converter

Condição de TPS5430DDAR: Novo em embalagem comercial

Garantia de TPS5430DDAR: 3 meses direto com a Net Computadores

Outros PNs para este item: 5430, TPS5430DDARG4

Switching Voltage Regulators 5.5 to 36V Input 3A Step Dwn Converter

Product Category:	Switching Voltage Regulators
RoHS:
Mounting Style:	SMD/SMT
Package / Case:	SO-PowerPad-8
Topology:	Buck
Output Voltage:	Adjustable
Output Current:	3 A
Number of Outputs:	1 Output
Input Voltage, Min:	5.5 V
Input Voltage, Max:	36 V
Quiescent Current:	18 uA
Switching Frequency:	500 kHz
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	125 C
Series:	TPS5430
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Input Voltage:	5.5 V to 36 V
Operating Supply Current:	3 mA
Product:	Voltage Regulators
Product Type:	Switching Voltage Regulators

Features
- Wide Input Voltage Range: - TPS5430: 5.5 V to 36 V - TPS5431: 5.5 V to 23 V
- Up to 3-A Continuous (4-A Peak) Output Current
- High Efficiency up to 95% Enabled by 110-m- Integrated MOSFET Switch
- Wide Output Voltage Range: Adjustable Down to 1.22 V with 1.5% Initial Accuracy
- Internal Compensation Minimizes External Parts Count
- Fixed 500 kHz Switching Frequency for Small Filter Size
- Improved Line Regulation and Transient Response by Input Voltage Feed Forward
- System Protected by Overcurrent Limiting, Overvoltage Protection and Thermal Shutdown
- -40C to 125C Operating Junction Temperature Range
- Available in Small Thermally Enhanced 8-Pin SO PowerPAD- Package
- Create a Custom Design Using the TPS5430 With the WEBENCH Power Designer 2 Applications
- Consumer: Set-top Box, DVD, LCD Displays
- Industrial and Car Audio Power Supplies
- Battery Chargers, High Power LED Supply
- 12-V/24-V Distributed Power Systems

Maiores detalhes de TPS5430DDAR no site do fabricante:
https://www.ti.com/lit/ds/symlink/tps5430.pdf?ts=1653466151863

Tags de TPS5430DDAR: TPS5430, TPS5430DDAR, 5430, CI 5430, IC 5430, mosfet 5430, TPS5430DDARG4, Texas Instruments
