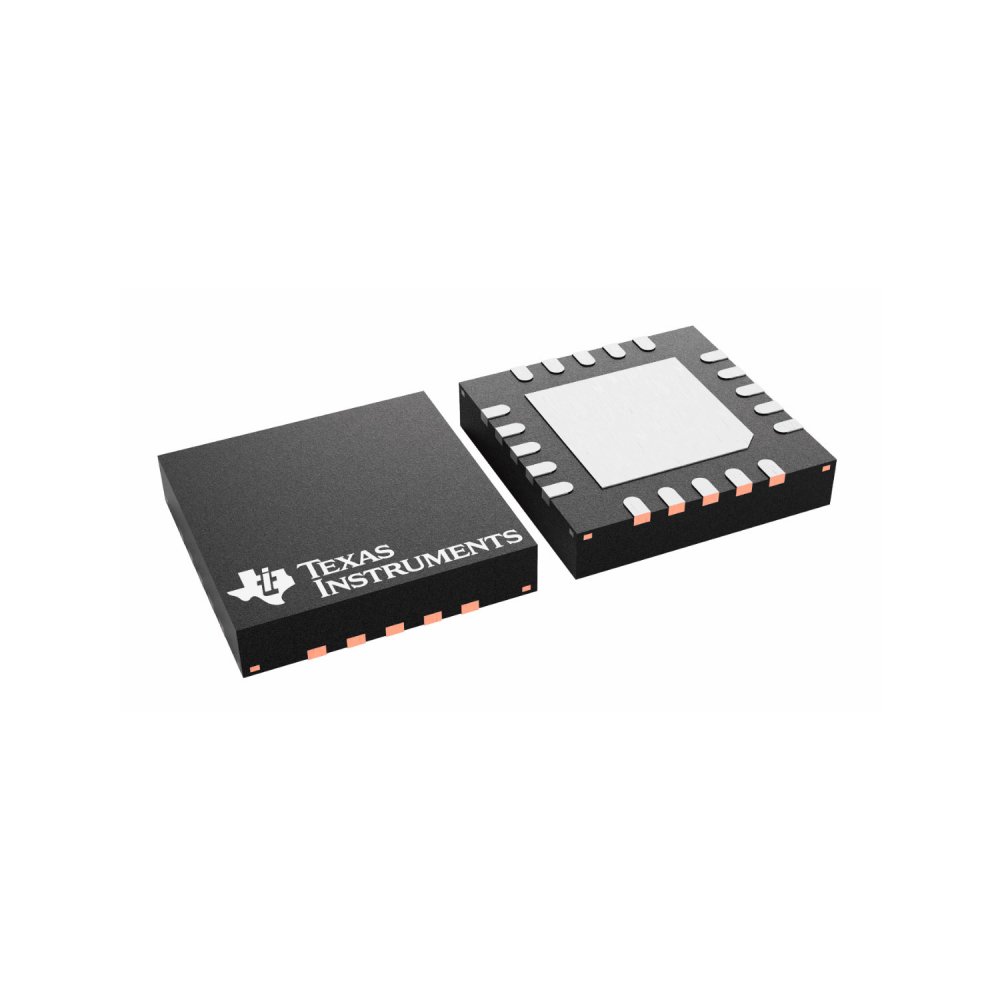

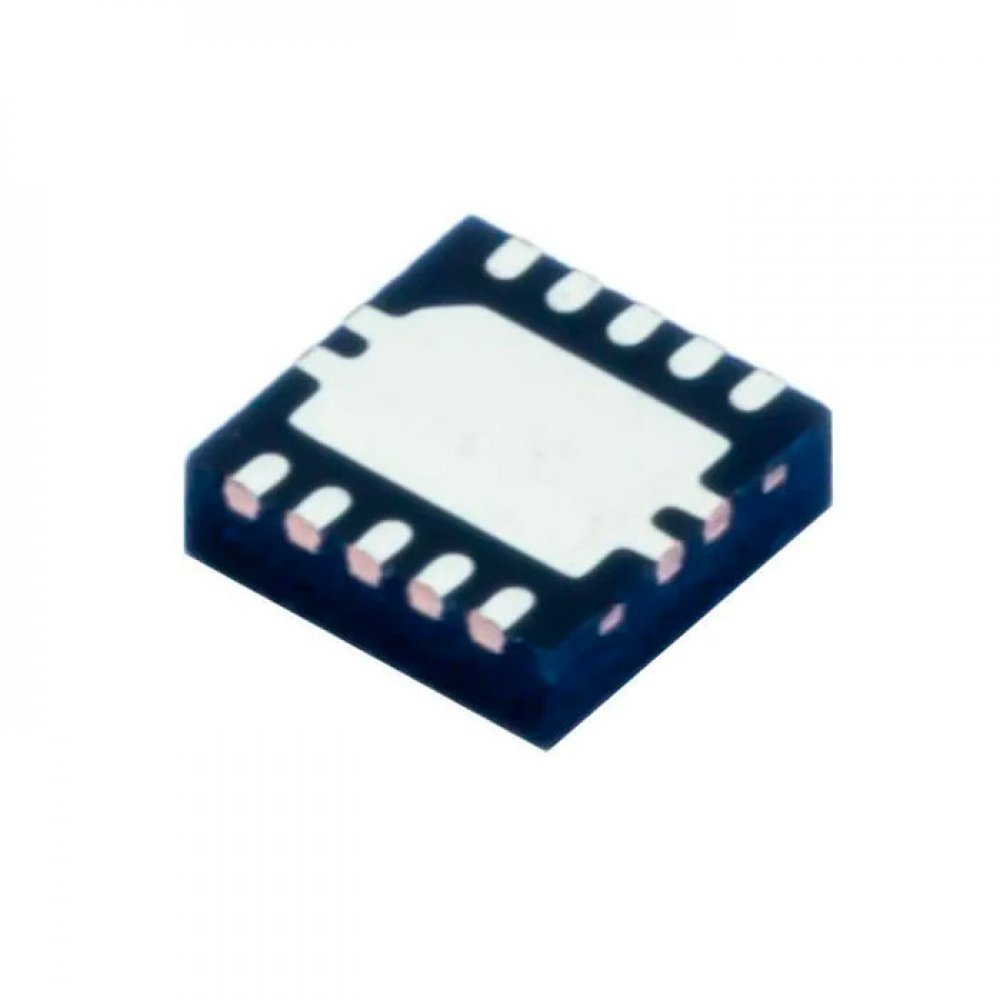

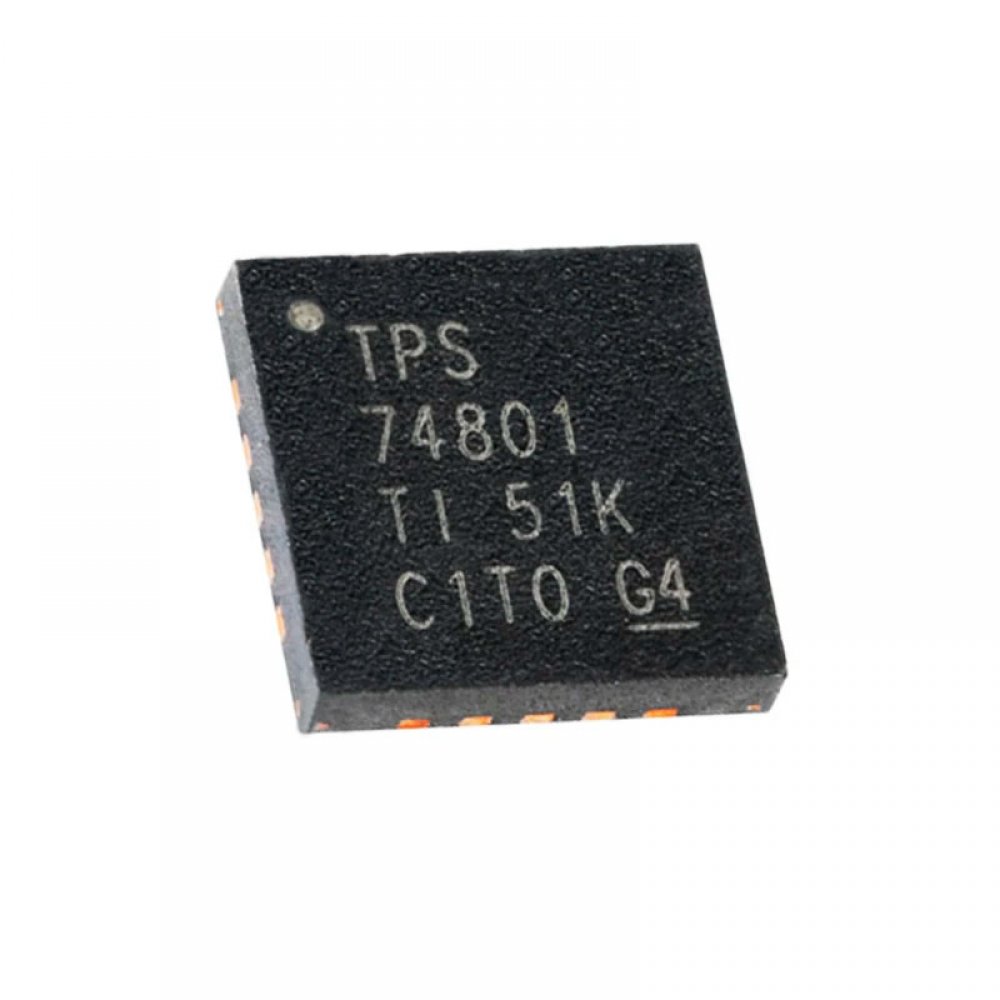

TPS74801 Ci TPS74801DRCR Ci LDO Ajustavel 1.5A Soft Start

TPS74801 Ci TPS74801DRCR Ci LDO Ajustavel 1.5A Soft Start marcação de lote no componente: BTO 01I CJRS

Condição de TPS74801:
Novo em embalagem comercial

Garantia  de  TPS74801:
7 dias troca. Sem garantia após soldado

Outros PNs para este componente:     TPS74801DRCR

• VOUT Range: 0.8 V to 3.6 V
• Ultralow VIN Range: 0.8 V to 5.5 V
• VBIAS Range 2.7 V to 5.5 V
• Low Dropout: 60 mV Typical at 1.5 A, VBIAS  5 V
• Power Good (PG) Output Allows Supply Monitoring or Provides a Sequencing Signal for Other Supplies
• 2% Accuracy Over Line, Load, and Temperature
• Programmable SoftStart Provides Linear Voltage Startup
• VBIAS Permits Low VIN Operation With Good Transient Response
• Stable With Any Output Capacitor 2.2 F

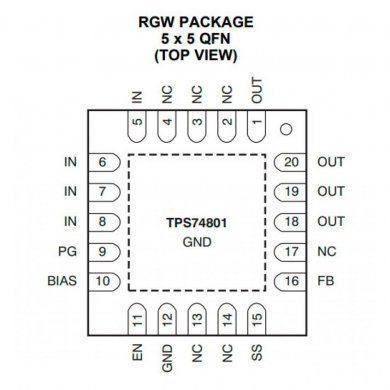

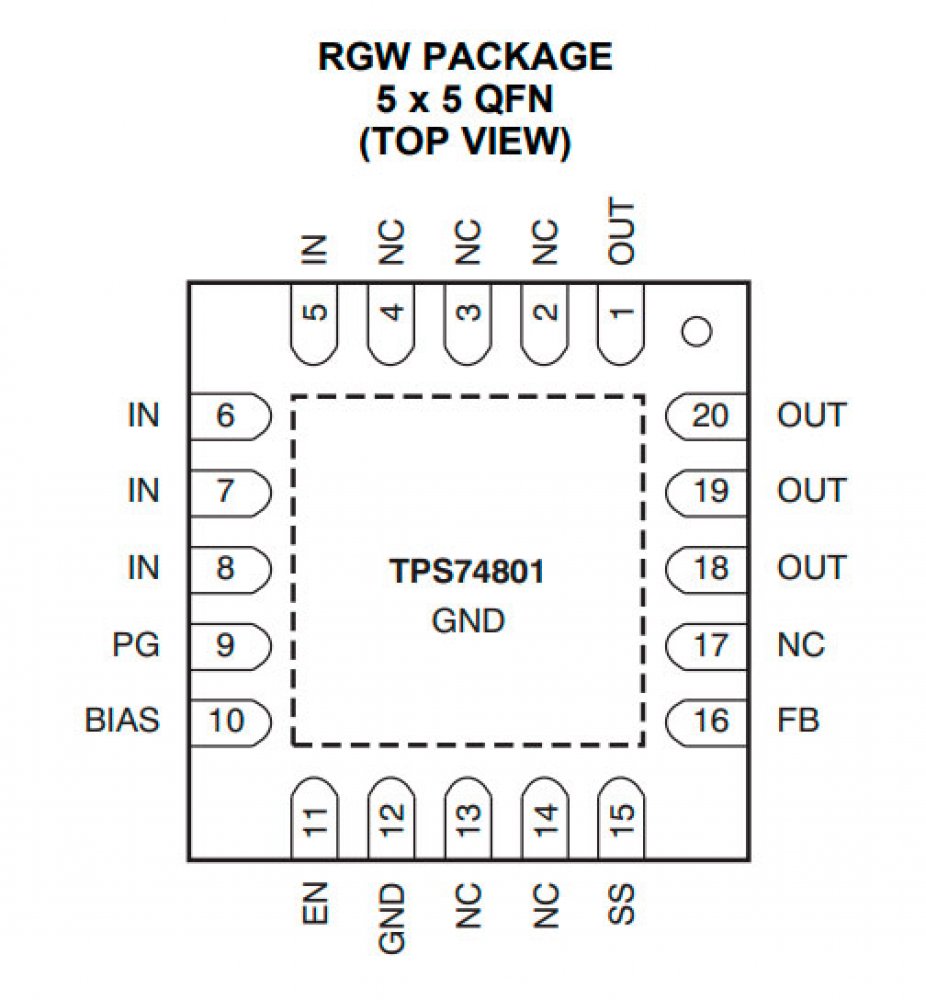

• Available in a Small, 3mm 3mm 1mm VSON10 and 5 5 QFN20 Packages

Maiores detalhes de TPS74801 no site do fabricante:
https://www.ti.com/lit/ds/symlink/tps74801-q1.pdf?ts=1678185015737eref_url=https

Tags de TPS74801: TPS74801DRCR, TPS74801, TPS74801D, TPS74801DR, ci 74801, BTO 01I CJRS, IC BTO 01I CJRS, CI BTO 01I CJRS, CI BTO 01i CJRS, Texas Instruments
