TS5A3159AYZPR Ci Analog Switch SPDT 1-5V 2:1 SPDT 1 channel

Name: TS5A3159AYZPR Ci Analog Switch SPDT 1-5V 2:1 SPDT 1 channel
Brand: Texas Instruments
SKU: TS5A3159AYZPR
Price: 10.00 BRL
Availability: InStock

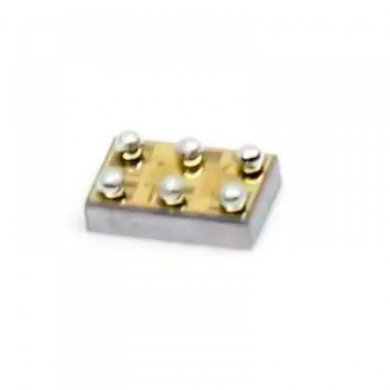

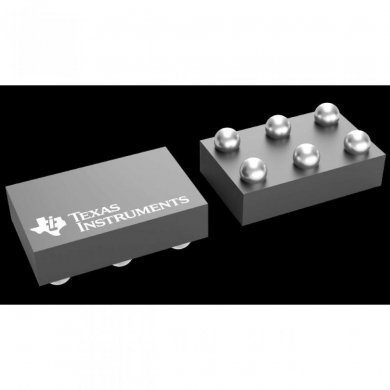

TS5A3159 6-DSBGA (1.39x.89mm)

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 10,00

à vista no Pix ou Boleto

ou R$ 10,32 em 1x no cartão (via site)

ou R$ 10,89 no cartão em até 10x sem juros (apenas na loja física)

R$ 10,00

à vista no Pix ou Boleto

R$ 10,32
em 1x no cartão (via site)

R$ 10,89 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85423190

R$ 10,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar TS5A3159AYZPR

TS5A3159AYZPR Ci Analog Switch SPDT 1-5V 2:1 SPDT 1 channel
TS5A3159 6-DSBGA (1.39x.89mm)

Condição de TS5A3159AYZPR: Novo em embalagem comercial

Garantia de TS5A3159AYZPR: 7 dias troca. Sem garantia após soldado

Outros PNs para este item: TS5A3159

1 5V 2:1 SPDT, 1 channel general purpose analog switch with powered off protection

Features for the TS5A3159A

Specified Break-Before-Make Switching
Isolation in Power-Down Mode, V 0
Terminal Compatible With TS5A3159 Device
Low ON-State Resistance (1 )
Control Inputs are 5.5-V Tolerant
Low Charge Injection
Excellent On-State Resistance Matching
Low Total Harmonic Distortion (THD)
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Performance Tested Per JESD
- 2000-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	900mOhm
Channel-to-Channel Matching (eDelta;Ron)	50mOhm
Voltage - Supply, Single (V )	1.65V ~ 5.5V
Voltage - Supply, Dual (V)	-
Switch Time (Ton, Toff) (Max)	30ns, 20ns
-3db Bandwidth	100MHz
Charge Injection	-20pC
Channel Capacitance (CS(off), CD(off))	18pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-64dB @ 1MHz
Operating Temperature	-40C ~ 85C (TA)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, DSBGA
Supplier Device Package	6-DSBGA (1.39x.89)
Base Product Number	TS5A3159

Maiores detalhes de TS5A3159AYZPR no site do fabricante:
https://www.ti.com/product/TS5A3159A/part-details/TS5A3159AYZPR
