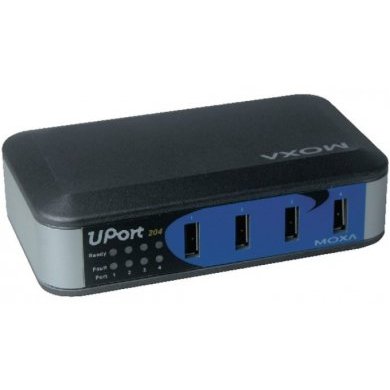

UPORT-204 HUB USB MOXA entry-level 4 Portas 2.0

Hi-Speed USB 2.0 for up to 480 Mbps

UPORT-204 - MOXA
UPORT-204 HUB USB MOXA entry-level 4 Portas 2.0
UPORT-204 HUB USB MOXA entry-level 4 Portas 2.0
clique para ampliar
*As imagens podem ser ilustrativas
UPORT-204 HUB USB MOXA entry-level 4 Portas 2.0

R$ 893,00

à vista no Pix ou Boleto

ou R$ 939,06 em 1x no cartão (via site)

ou R$ 991,23 no cartão em até 10x sem juros (apenas na loja física)

R$ 893,00

à vista no Pix ou Boleto

R$ 939,06
em 1x no cartão (via site)

R$ 991,23 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
85176254

R$ 893,00

à vista no pix

Condição:
Novo em embalagem antiestática

Garantia:
12 meses direto com a Net Computadores

NCM: 85176254

UPORT-204 HUB USB MOXA entry-level 4 Portas 2.0
Hi-Speed USB 2.0 for up to 480 Mbps

Condição de UPORT-204:    Novo em embalagem antiestática

Garantia  de  UPORT-204:     12 meses direto com a Net Computadores



Features and Benefits

Hi-Speed USB 2.0 for up to 480 Mbps of USB transmission
USB-IF certification
15 kV ESD Level 4 protection for all USB ports
Comprehensive diagnostic LEDs
Full 500 mA of power per port
Choose bus power or external power (UPort 204 only)


Introduction

The UPort 204 and UPort 207 are entry-level USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. The UPort 204/207 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB Plug e Play spec and provide a full 500 mA of power per port, ensuring that your USB devices will properly. The UPort 204/207 hubs support of 12-40 VDC power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

USB-IF Certification
The UPort 204/207 USB 2.0 entry-level USB hubs have passed USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the Hi-Speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort 204/207 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, is enough power for devices to , and provides for a successful transition back to high-speed operation from the suspend state.

ESD Level 4 Protection
Electrostatic discharge (ESD) could be as severe as having more than one thousand volts of ESD with a high rise time (dv/dt) through the junction layer of protective devices. In order to avoid serious damage, Moxas UPort 204/207 USB hubs provide ESD level 4 (contact 8 KV, air 15 KV) protection, which increases the quality and value of the users end-product.
Compliance
USB 1.1/2.0 compliant

Upstream
1 USB port, Type B connector

Downstream
UPort 204 4 USB ports, Type A connectors
UPort 207 7 USB ports, Type A connectors

Speed
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Operating Temperature
0 to 60C (32 to 140F)

Input Voltage
12 to 40 VDC external power

Power Consumption
UPort 204 1210 mA @ 12 VDC, 610 mA @ 24 VDC, 430 mA @ 36 VDC
UPort 207 2170 mA @ 12 VDC, 1070 mA @ 24 VDC, 730 mA @ 36 VDC


Maiores detalhes de UPORT-204 no site do fabricante:
http://www.moxa.com/doc/specs/UPort_204_207.pdf


Tags de UPORT-204: UPort-204, Hub USB 2.0, Hub Moxa UPort-204, Moxa UPort 204, Moxa UPort204, HUB MOXA UPort204, HUB MOXA UPort 204, UPort 204, HUB, UPort-207, UPort207, UPort 207, MOXA

UPORT-204 HUB USB MOXA entry-level 4 Portas 2.0 Hi-Speed USB 2.0 for up to 480 Mbps

Condição de UPORT-204:
Novo em embalagem antiestática

Garantia  de  UPORT-204:
12 meses direto com a Net Computadores


Features and Benefits

Hi-Speed USB 2.0 for up to 480 Mbps of USB transmission
USB-IF certification
15 kV ESD Level 4 protection for all USB ports
Comprehensive diagnostic LEDs
Full 500 mA of power per port
Choose bus power or external power (UPort 204 only)


Introduction

The UPort 204 and UPort 207 are entry-level USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. The UPort 204/207 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB Plug e Play spec and provide a full 500 mA of power per port, ensuring that your USB devices will properly. The UPort 204/207 hubs support of 12-40 VDC power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

USB-IF Certification
The UPort 204/207 USB 2.0 entry-level USB hubs have passed USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the Hi-Speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort 204/207 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, is enough power for devices to , and provides for a successful transition back to high-speed operation from the suspend state.

ESD Level 4 Protection
Electrostatic discharge (ESD) could be as severe as having more than one thousand volts of ESD with a high rise time (dv/dt) through the junction layer of protective devices. In order to avoid serious damage, Moxas UPort 204/207 USB hubs provide ESD level 4 (contact 8 KV, air 15 KV) protection, which increases the quality and value of the users end-product.
Compliance
USB 1.1/2.0 compliant

Upstream
1 USB port, Type B connector

Downstream
UPort 204 4 USB ports, Type A connectors
UPort 207 7 USB ports, Type A connectors

Speed
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Operating Temperature
0 to 60C (32 to 140F)

Input Voltage
12 to 40 VDC external power

Power Consumption
UPort 204 1210 mA @ 12 VDC, 610 mA @ 24 VDC, 430 mA @ 36 VDC
UPort 207 2170 mA @ 12 VDC, 1070 mA @ 24 VDC, 730 mA @ 36 VDC


Maiores detalhes de UPORT-204 no site do fabricante:
http://www.moxa.com/doc/specs/UPort_204_207.pdf


Tags de UPORT-204: UPort-204, Hub USB 2.0, Hub Moxa UPort-204, Moxa UPort 204, Moxa UPort204, HUB MOXA UPort204, HUB MOXA UPort 204, UPort 204, HUB, UPort-207, UPort207, UPort 207, MOXA
