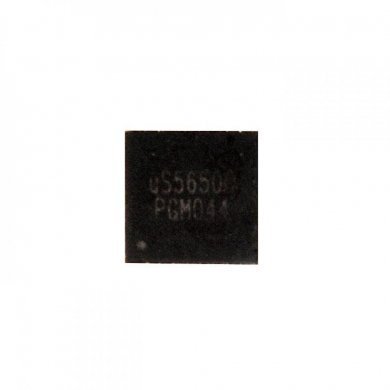

US5650Q IC ADC Prefilter with Analog Multiplexer QFN-32

US5650Q IC ADC Prefilter with Analog Multiplexer QFN-32 ADC Prefilter with Analog Multiplexer Shunt Controller

Condição de US5650Q:
Novo em embalagem comercial

Garantia  de  US5650Q:
3 meses direto com a Net Computadores

Outros PNs para este componente:     US5650QQKI

• Differential to SingleEnded TransConductance Amplifier
• 2*4to1 (1 for Bus, 1 for Shunt) Analog Multiplexer with Single Bit for MUX Select
• SingleEnded to Differential Converter with Buffered Input Reference Voltages
• Strap Selectable to Operate the Device by Itself or in a Pair
• Enable Input that Enables Active Devices and Controls an Internal FET to Ground
• Operating Shunt Voltage: 5V to 30V
• Max Bus Voltage: 30V
• Power Supply Operation: 2.8V to 3.8V

• Computers
• Power Management
• Telecom Equipment
• Battery Chargers
• Power Supplies
• Test Equipment

Maiores detalhes de US5650Q no site do fabricante:
https://www.upi-semi.com/upisemi/products/ic/power-monitoring-protection/power-m
