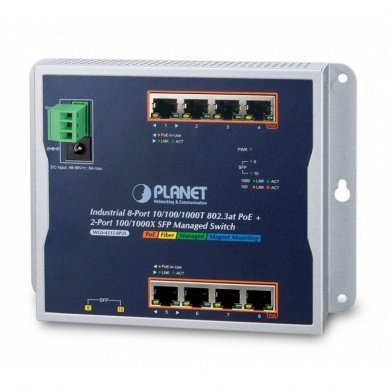

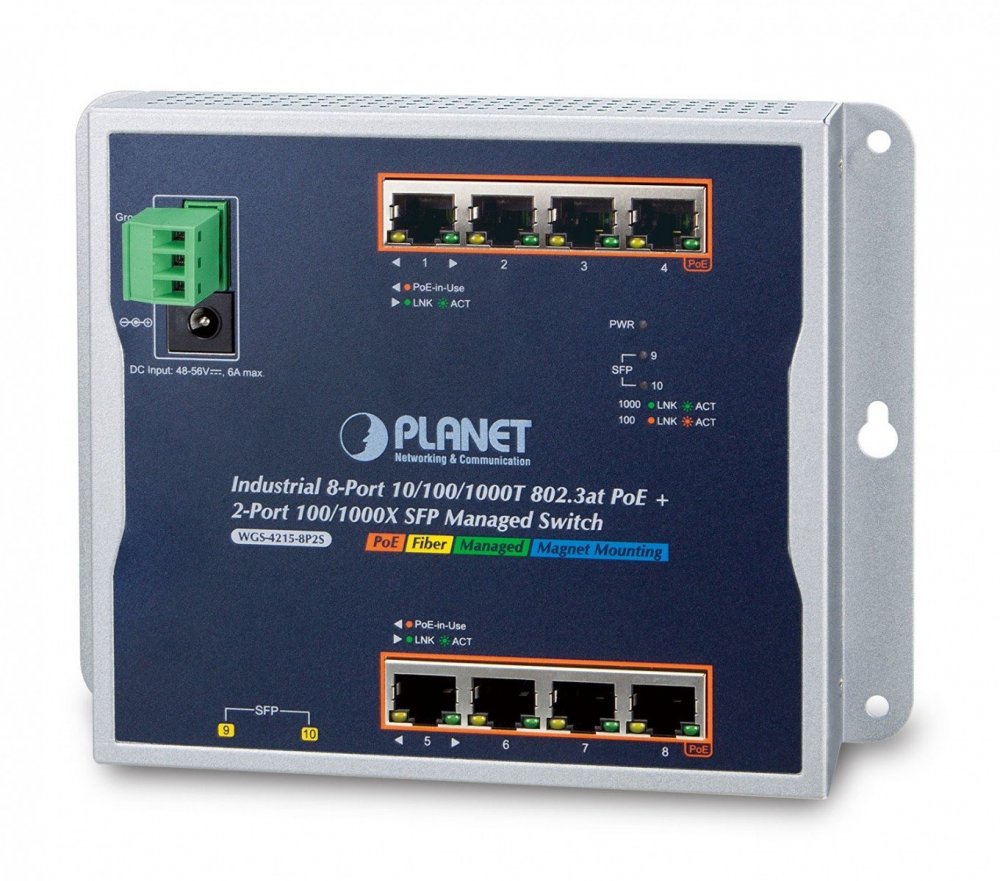

WGS-4215-8P2S Planet switch industrial 8 portas gigabit POE+ 2x SFP 802.3at gerenciável layer 2 IP30 metal
Condição de WGS-4215-8P2S:
Novo em embalagem comercial
Garantia de WGS-4215-8P2S:
12 meses Assist. Técnica do Fabricante
Physical Port
8 10/100/1000BASE-T Gigabit RJ45 copper ports with IEEE 802.3at PoE+ injector
2 100/1000BASE-X mini-GBIC/SFP ports
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 8 ports of IEEE 802.3af/802.3at devices powered
200-watt PoE budget
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters in standard mode and 250m in extend mode
PoE management:
- Total PoE power budget control
- Per port PoE enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive check
- PoE schedule
Industrial Case and Installation
Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
IP30 metal case
Supports -40 to 75 degrees C operating temperature
Supports ESD 8KV DC Ethernet protection
Dual power input design:
- 48V~56V DC wide power input with reverse polarity protection
- 3-pin terminal block or DC jack connector
Switching
Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
10K jumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol
Layer 2 Features
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Protocol VLAN
- Voice VLAN
- Private VLAN (Protected port)
- Management VLAN
- GVRP
Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)
Quality of Service
Ingress/Egress Rate Limit per port bandwidth control
Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
Supports IPv4 IGMP snooping v2, v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering
Security
Storm Control support
- Broadcast/Unknown unicast/Unknown multicast
Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Option 82
- RADIUS/TACACS+ authentication
Access Control List
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
MAC Security
- Static MAC
- MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention
Management
IPv4 and IPv6 dual stack management
Switch Management Interface
- Web switch management
- Telnet Command Line Interface
- SNMP v1 and v2c switch management
- SSHv2, TLSv1.2 and SNMP v3 secure access
SNMP Management
- SNMP trap for interface Link Up and Link Down notification
- Four RMON groups (history, statistics, alarms and events)
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
Static and DHCP for IP address assignment
System Maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through HTTP/TFTP
- Dual images
- Hardware reset button for system reboot or reset to factory default
SNTP Network Time Protocol
Network Diagnostic
- Cable diagnostics
- ICMPv6/ICMPv4 Remote Ping
- SFP-DDM (Digital Diagnostic Monitor)
Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
Event message logging to remote syslog server
PLANET Smart Discovery Utility for deployment management
PLANET NMS system and CloudViewer for deployment management
