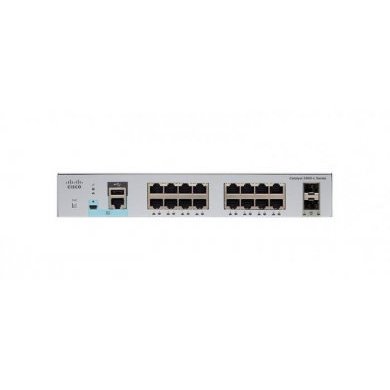

WS-C2960L-16TS-LL CISCO SWITCH CATALYST 2960L 16 PORTAS 16x 10/100/1000Mbps, 2x 1G SFP, LAN Lite (O serviço CON-SNT-WSC2966L ou superior e recomendado para
Condição de WS-C2960L-16TS-LL:
Novo em embalagem comercial
Garantia de WS-C2960L-16TS-LL:
3 meses direto com a Net Computadores
Capacity
Type: MAC addresses
Value: 8000
Type: VLANs supported
Value: 4094
Type: Active VLANs
Value: 64
Type: SPAN bidirectional sessions
Value: 1
Dimensions e Weight
Depth: 8.5 in
Height: 1.7 in
Weight: 4.54 lbs
Width: 10.6 in
Environmental Parameters
Humidity Range Operating: 5 - 90%
Humidity Range Storage: 5 - 95%
Max Operating Temperature: 131 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 23 °F
Min Storage Temperature: -13 °F
Flash Memory
Installed Size: 256 MB
Header
Brand: Cisco
Compatibility: PC
Manufacturer: Cisco Systems
Model: 2960L-16TS-LL
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Connector Type: RJ-45
Qty: 16
Type: 1000Base-T
Qty: 1
Type: Console
Connector Type: Type B
Type: Console (mini-USB)
Connector Type: Type A
Type: USB
Comments: Uplink
Connector Type: SFP
Qty: 2
Type: 1000Base-X
Miscellaneous
Authentication Method: Kerberos , RADIUS , Secure Shell (SSH) , TACACS
Color Category: Gray
Compliant Standards: AS/NZS 60950-1 , AS/NZS CISPR22:2004 Class A , CAN/CSA C22.2 No. 60950-1 Second Edition , CISPR 22 Class A , CISPR 24 , EN 300386 , EN 60950-1 Second Edition , EN55022 Class A , EN55024 , FCC CFR47 Part 15 B Class A , ICES-003 Class A , IEC 60950-1 Second Edition , KN24 , RoHS 2011/65/EU , UL 60950-1 , VCCI Class A
MTBF: 2,416,689 hours
Networking
Compliant Standards: IEEE 802.1D , IEEE 802.1p , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ad (LACP) , IEEE 802.3ah , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z
Features: Access Control List (ACL) support , ARP support , Bridge protocol data unit (BPDU) , Cisco EnergyWise technology , DHCP snooping , Dynamic ARP Inspection (DAI) , Dynamic Trunking Protocol (DTP) support , Dynamic VLAN Support (GVRP) , Fanless , IGMP filtering , Layer 2 switching , Link Aggregation Control Protocol (LACP) , MAC Address Notification , Multiple Spanning Tree Protocol (MSTP) support , Network Timing Protocol (NTP) , Per-port broadcast throttling , Per-VLAN Rapid Spanning Tree (PVRST) , Port Aggregation Protocol (PAgP) support , RADIUS support , Rapid Spanning Tree Protocol (RSTP) support , SNMP support , Spanning-tree Root Guard (STRG) , Trivial File Transfer Protocol (TFTP) support , Uni-Directional Link Detection (UDLD) , VLAN Trunking Protocol (VTP)
Form Factor: Desktop , Rack-mountable
Jumbo Frame Support: 10240 bytes
Manageable: Yes
Ports Qty: 16
Remote Management Protocol: CLI , SNMP 3
Routing Protocol: IGMP
Status Indicators: Link/speed , PoE , Status , System
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Performance
Type: Switching bandwidth
Value: 36 Gbps
Type: Forwarding bandwidth
Value: 18 Gbps
Ports
Qty: 16
Type: 10/100/1000
Ports (2nd)
Qty: 2
Type: Gigabit SFP (uplink)
Power Device
Frequency Required: 50 - 60 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply
Processor
Clock Speed: 800 MHz
Type: ARM7
RAM
Installed Size: 512 MB
Software
Type: Cisco IOS LAN Lite
