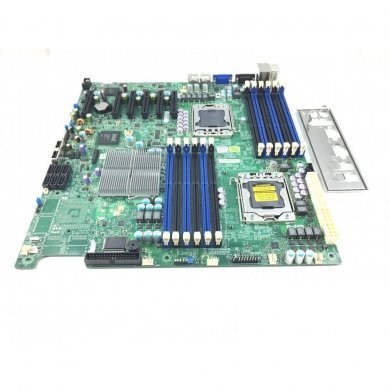

X8DTE-F Supermicro placa-mãe servidor Dual Xeon LGA 1366

Name: X8DTE-F Supermicro placa-mãe servidor Dual Xeon LGA 1366
Brand: SUPERMICRO
SKU: X8DTE-F
Price: 597.00 BRL
Availability: InStock

LGA1366, 12x slots DDR3 até 192GB, 6 slots PCI-E, Dual Gigabit, RAID 0 1 5 10, E-ATX

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 597,00

à vista no Pix ou Boleto

ou R$ 627,84 em 1x no cartão (via site)

ou R$ 662,72 no cartão em até 10x sem juros (apenas na loja física)

R$ 597,00

à vista no Pix ou Boleto

R$ 627,84
em 1x no cartão (via site)

R$ 662,72 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Seminovo testado e pronto para uso!

Garantia:

3 meses direto com a Net Computadores

NCM:

84733041

Condição:
Seminovo testado e pronto para uso!

Garantia:
3 meses direto com a Net Computadores

NCM: 84733041

Cotação PJ mais de uma unidade

Indicar X8DTE-F

X8DTE-F Supermicro placa-mãe servidor Dual Xeon LGA 1366
LGA1366, 12x slots DDR3 até 192GB, 6 slots PCI-E, Dual Gigabit, RAID 0 1 5 10, E-ATX

Condição de X8DTE-F: Seminovo testado e pronto para uso!

Garantia de X8DTE-F: 3 meses direto com a Net Computadores

Outros PNs para este item: MBD-X8DTE-F-O

Physical Stats
Form Factor
Extended ATX
Dimensions
12 x 13 (30.5cm x 33cm)

Processor/Cache
CPU
Dual 1366-pin LGA Sockets
Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
Intel®
Xeon®Processor 5600 Series (Westmere)
Intel®
Xeon®Processor 5500 Series (Nehalem-EP)
QPI
up to 6.4 GT/s

System Memory
Memory Capacity
12x 240-pin DIMM slots
Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
Memory Mirroring supported
Memory Type
1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage
1.5 V / 1.35V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset
Intel® 5520 (Tylersburg) chipset
ICH10R IOH-36D
SATA
Intel ICH10R SATA 3.0Gbps Controller
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Winbond® WPCM450 BMC
Network Controllers
2x Intel® 82574L Gigabit Ethernet Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
Matrox G200eW 16 MB DDR2
Super I/O
Winbond 83827HF chip

Input / Output
Serial ATA
Six Serial ATA ports
Six SATA hard drives supported
Floppy
1 Floppy controller; 1.44 MB
LAN
2x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
4x USB rear ports
2x USB on-board (TypeA)
4x USB internal headers
Total 8 USB 2.0 Compliant
VGA
1x VGA Port
Keyboard / Mouse
PS/2 keyboard and mouse ports
Serial Port / Header
1 Fast UART 16550 serial port
1 Fast UART 16550 serial header (Option)

Chassis ( Optimized for X8DTE-F )
1U Chassis
CSE-812L-600CB
2U Chassis
CSE-213LTQ-R720LPB
CSE-826A-R1200LPB
CSE-826E1-R800LPB
CSE-826E16-R1200LPB
CSE-826E2-R800LP
CSE-826E26-R1200LPB
CSE-826TQ-R800LPB
3U Chassis
CSE-836E1-R800B
CSE-836E16-R1200B
CSE-836E2-R800B
CSE-836E26-R1200B
CSE-836TQ-R800B
CSE-933E1-R760B
CSE-933E2-R760B
CSE-933T-R760B
CSE-936E1-R900
CSE-936E16-R1200B
CSE-936E26-R1200B
Tower / 4U Rackmount
CSE-842TQ-865B
CSE-846E1-R900B
CSE-846E2-R900
CSE-846E26-R1200B
CSE-846TQ-R900B
CSE-847A-R1400LPB
Important Chassis Notes
To support the new generation Intel® Xeon® processor-based motherboards, a Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details.

Expansion Slots
PCI-Express
4 (x8) PCI-E 2.0 slots
1 (x4) PCI-E 2.0 slot
1 (x4) PCI-E slot

System BIOS
BIOS Type
32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support

Management
Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
SuperDoctor® III
Power Configurations
ACPI / ACPM Power Management

PC Health Monitoring
Voltage
Monitors for CPU Cores, 1.8V, 3.3V, 5V, 12V, 3.3V Standby, 5V Standby, VBAT, Memory, Chipset Voltages.
6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
Total of eight fan headers supporting up to 8 fans
Eight 4-pin fan headers
8x fans with tachometer status monitoring
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
PECI
Other Features
Chassis intrusion detection
Chassis intrusion header

Operating Environment
Environmental Spec.
Operating Temperature: 10° to 35° C (50° to 95°F)
Non-operating Temperature: -40° to 70° C (-40° to 158° F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5 to 95% (non-condensing)

Maiores detalhes de X8DTE-F no site do fabricante:
https://www.supermicro.com/products/motherboard/archive/QPI/5500/X8DT6-F.cfm?IPM
