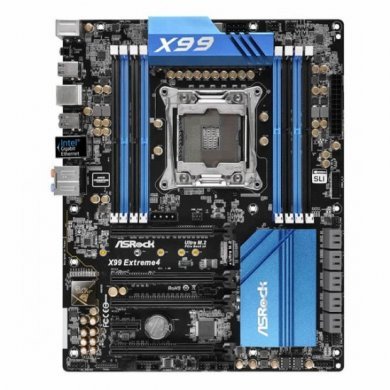

X99-Extreme4 Placa Mãe ASRock X99 Intel LGA 2011-v3

X99-Extreme4 Placa Mãe ASRock X99 Intel LGA 2011-v3 Core i7, 4x Slots DDR4 (maximo 128GB), 10x SATA 6Gb/s, RAID 0/1/5/10 and Intel Rapid Storage 13, Re

Condição de X99-Extreme4:
Novo em embalagem comercial

Garantia  de  X99-Extreme4:
12 meses Assist. Técnica do Fabricante

Model
• Brand: ASRock
• Model: X99 Extreme4

Supported CPU
• CPU Socket Type: LGA 2011-v3
• CPU Type: Core i7 (LGA2011-v3)
• Supported CPU Technologies: Turbo Boost Technology 2.0

Chipsets
• Chipset: Intel X99

Memory
• Number of Memory Slots: 8×288pin
• Memory Standard: DDR4 3000+(OC) / 2933+(OC) / 2800(OC) / 2400(OC) / 2133 / 1866 / 1600 / 1333 / 1066
• Maximum Memory Supported: 128GB
• Channel Supported: Quad Channel

Expansion Slots
• PCI Express 3.0 x16: 3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode)*
*If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE4 will work at x16/x8/x4 and 3-Way SLI is not supported. To support 3-Way SLI,

please install CPU with 40 lanes.
• PCI Express 2.0 x16: 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x4 mode)
• PCI Express x1: 1 x PCI Express 2.0 x1 Slot

Storage Devices
• SATA 6Gb/s: 10 x SATA 6Gb/s
• M.2: 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• SATA RAID: RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13

Onboard Video
• Onboard Video Chipset: None

Onboard Audio
• Audio Chipset: Realtek ALC1150
• Audio Channels: 7.1 Channels

Onboard LAN
• LAN Chipset: Intel I218V
• Max LAN Speed: 10/100/1000Mbps

Rear Panel Ports
• PS/2: 1x PS/2 Mouse Port / 1x PS/2 Keyboard Port
• RJ45: 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• USB 3.0: 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• USB 1.1/2.0: 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• eSATA: 1 x eSATA Connector
• S/PDIF Out: 1 x Optical
• Audio Ports: HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Internal I/O Connectors
• Onboard USB: 2 x USB 3.0 + 4 x USB 2.0
• Other Connectors:
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x HDD Saver Connector
- 1 x PCIe Power Connector
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector

Physical Spec
• Form Facto: ATX
• Power Pin: 24 Pin

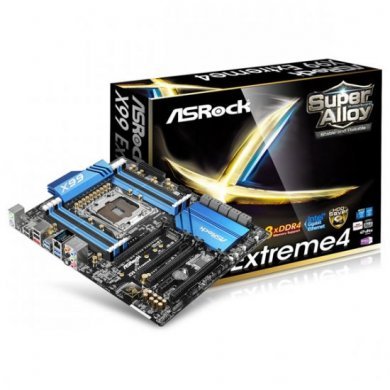

Package Contents
• 1 x ASRock SLI_Bridge_2S Card
• 1 x ASRock 3-Way SLI-2S1S Bridge Card
• Quick Installation Guide, Support CD, I/O Shield
• 4 x SATA Data Cables
• 1 x HDD Saver Cable
• 1 x Screw for Ultra M.2 Socket

Maiores detalhes de X99-Extreme4 no site do fabricante:
http://www.asrock.com/mb/Intel/X99%20Extreme4/
