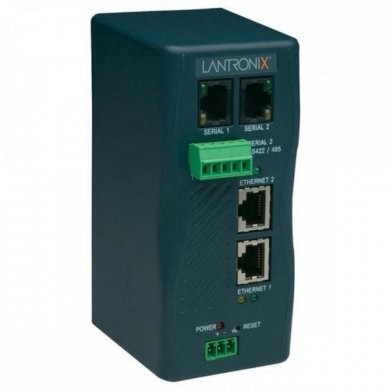

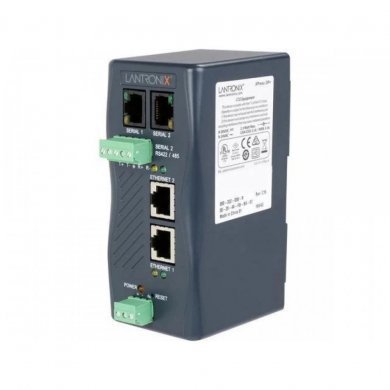

XSDR22000-01 Lantronix XPress DR Device Server Industrial
2x RJ45 10Base-T/100Base-TX Ethernet 2x Serial

Condição de XSDR22000-01: Novo em embalagem comercial

Garantia de XSDR22000-01: 12 meses direto com a Net Computadores

Connect enterprise systems (ERP,MES) to factory floor devices without disturbing existing control networks
Cascade multiple devices from a single network connection
Supports industrial protocols
Enables remote firmware upgrades, saving time and money
Configurable serial interface supports RS-232, RS-422, or RS-485
Maximizes flexibility with an internal 2-Port 10Base-T/100Base-TX Ethernet switch
15kV serial ESD protection and 2.5kV Ethernet isolation
Wide -40- 70C operational temperature range
RoHS compliant
Non-incendive for use in Class I Division2 , Groups A , B, C, and D Hazardous (Classified) locations
- Serial Interface
2 RJ45 RS-232 Serial Ports
Baud rate selectable from 300 to 230 Kbps
1 screw terminal RS-422/485 interface on Serial Port 2 (2 and 4-wire support)
LED indicators for TXD and RXD activities
- Serial Line Formats
Characters: 7 or 8 data bits
Stop Bits: 1 or 2
Parity: odd, even, none
- Flow Control
Hardware: RTS/CTS
Software: XON/XOFF
- Modem Control: DTR, DSR
- Network Interface
2 RJ45 10Base-T/100Base-TX Ethernet ports
Embedded, unmanaged, fully compliant 802.3u non-blocking Ethernet switch
Store and forward architecture with 1K MAC address lookup table
Automatic MDI/MDI-X crossover
Full duplex IEEE 802.3x flow control
Half duplex back pressure flow control
IEEE 802.1d spanning tree
- LED Indicators
TX/RX activity per serial
Link/Activity per Ethernet port
Power/System OK
- Management
Internal web server (standard tunneling firmware only)
SNMP (read only)
Serial login
Telnet login
DeviceInstaller software
- Isolation
8 kV direct contact, 15kV air discharge, ESD protection on all Serial ports (IEC 1000-4-2, IEC 61000-4-2)
2 K VAC / 2.8K VDC galvanic isolation between Power Input port to Ethernet ports (except Chassis ground)
2 K VAC / 2.8K VDC galvanic isolation between Power Input port to Serial ports
Transient Voltage protection and ESD with max non-repetitive surge current 800 Amp (8/20 s) (IEC 61000-4-2)
2 K VA / 2.8K VDC galvanic isolation between Ethernet ports (except chassis ground)
2 K VA / 2.8K VDC galvanic isolation between Ethernet ports to Serial ports
40 A (5/50 ns) EFT protection (IEC 61000-4-4), 12 A (8/20 s) lightning protection (IEC 61000-4-5) on all Ethernet ports
- Power Input
Removable screw terminal block connector
9-30 VDC or 9-24 VAC with chassis ground
2.3 Watts maximum
- Environmental (Operating)
Temperature: -40C to +70C (-40 to 158F)
Humidity: 20% to 90% relative humidity, noncondensing
- Agency Approvals
UL, CSA, FCC, CE, TUV, CTick, VCCIs
Non-incendive for use in Class I Division2 , Groups A , B, C, and D Hazardous (Classified) locations
- Protocols Supported: ARP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, and HTTP
- Installable Industrial Application Protocols: ModBus TCP, ModBus ASCII/RTU
- CPU: Lantronix DSTNI-EX 48 MHz clock, 256 KB SRAM Internal CPU Memory
- Flash Memory: 2 MB Flash
- EEPROM: 2 KB
- Reset: Front panel recessed push button
