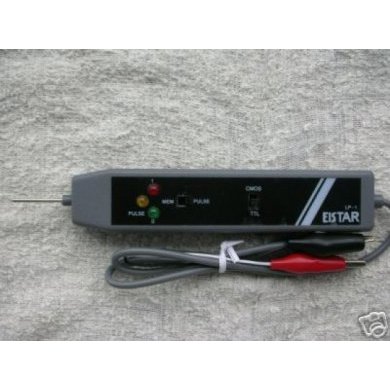

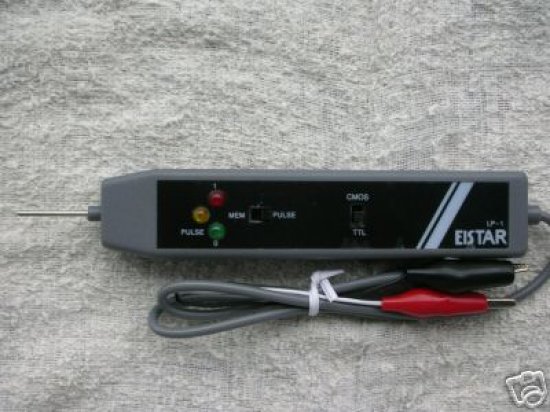

Ponta de Prova Analizador Lógico

de Circuitos DTL, TTL e CMOS ( Pulse Memory Function ) LP-1 Eistar

120457634878 - OEM
120457634878 Ponta de Prova Analizador Lógico
Ponta de Prova Analizador Lógico
*Imagens ilustrativas

120457634878

Ponta de Prova Analizador Lógico

de Circuitos DTL, TTL e CMOS ( Pulse Memory Function ) LP-1 Eistar

Garantia:
6 meses direto com a Net Computadores

NCM:
90303990

envio de 20 a 40 dias uteis

R$ 89,50

À vista já com 5% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou no cartão de crédito por R$ 94,21

Condição exclusiva para o site. Parcelas serão exibidas na tela de pagamento.

R$ 89,50

À vista já com 10% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou R$ 99,44 no cartão de crédito em até 10x sem juros

Condição exclusiva para compras presenciais na loja física.

R$ 89,50

à vista no pix

Condição: novo em embalagem antiestática

Garantia: 6 meses direto com a Net Computadores

NCM: 90303990


120457634878 Ponta de Prova Analizador Lógico

Condição de 120457634878: novo em embalagem antiestática

1. connect RED clip to + terminal and BLACK clip to - terminal of the power source of the circuit under test. the supply voltage should not exceed 18v DC.
2.for TTL and DTL,set the upper select switch to the side marked "TTL".  for COMS, set the  upper select switch to the side marked "CMOS". contact the probe pin to the point to be tested, the LEDs will indicate its logic states:
A: ALL LEDs OFF  ---- HIGH IMPEDANCE
B: RED LED ON  ------HIGH STATE [ 1 ]
C: GREEN LED ON --- LOW STATE [0 ]
D: ORANGE LED ON  -- PULSE
3.  for detecting and storing pulse or level transition set lower select switch to side marked " PULSE"  first. contact the probe pin to the point to be tested. the LEDs will indicate its basic state.
then set the lower select  switch to side marked " MEM", the  orange LED will light when any pulse or level tansition is detected. teh pulse direction, in comparison with teh original basic state, can be determined.
after use,reset logic probe by setting the lower select switch back to the side marked " PULSE".

120457634878 Ponta de Prova Analizador Lógico


Condição de 120457634878: novo em embalagem antiestática

Tags de 120457634878: Ponta lógica, Eistar, TTL, CMOS, DTL, Logic Probe, LP-1 Eistar, Ferramentas de Rede, Ferramentas para Rede, Probe Pulser DTL, OEM, OEM
