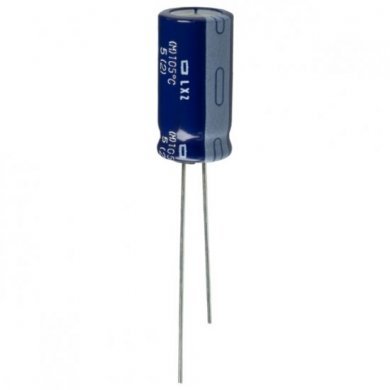

1500UF-6.3V-105-LXZ-NCC Nichicon LXZ capacitor eletrolítico 1500uf x 6.3v

105oC LXZ Series High Reliability

1500UF-6.3V-105-LXZ-NCC - NIPPON CHEMI-CON

1500UF-6.3V-105-LXZ-NCC Nichicon LXZ capacitor eletrolítico 1500uf x 6.3v

*As imagens podem ser ilustrativas

Nichicon LXZ capacitor eletrolítico 1500uf x 6.3v

em estoque, envio imediato

R$ 1,47

à vista no Pix ou Boleto

ou R$ 1,55 em 1x no cartão (via site)

ou R$ 1,63 no cartão em até 10x sem juros (apenas na loja física)

R$ 1,47

à vista no Pix ou Boleto

R$ 1,55
em 1x no cartão (via site)

R$ 1,63 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85043119

R$ 1,47

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85043119

Cotação PJ mais de uma unidade

Indicar 1500UF-6.3V-105-LXZ-NCC

1500UF-6.3V-105-LXZ-NCC Nichicon LXZ capacitor eletrolítico 1500uf x 6.3v
105oC LXZ Series High Reliability

Condição de 1500UF-6.3V-105-LXZ-NCC: Novo em embalagem comercial

Garantia de 1500UF-6.3V-105-LXZ-NCC: 3 meses direto com a Net Computadores

Nippon Chemi-Con (NCC) is the first class capacitor made in Japan.
This is the Premium grade capacitor for Power Supply Output Filter.This series is the BEST in Nippon Chemi-Con (NCC) for Power Supply Output Filter capacitor.The LXZ Series is High Reliability.

FEATURES
?Innovative electrolyte and internal architecture are employed
?Very low impedance at high frequency
?Endurance with ripple current: 2,000 to 8,000 hours at 105C
Nippon Chemi-Con (NCC) LXZ series 6.3V 1500UF Low Impedance Capacitors.This is Nichicon LXZ series

	Units	Performance
Appearance		Radial Lead
Series		LXZ
Rated Voltage	(V)	6.3,DC
Rated Capacitance	(µF)	1500
Tolerance	(%)	-20 to 20
Category Temperature Range	(degC)	-55 to 105
Life Time	(h)	5000
Size(Diameter)	(mm)	10
Size(Length)	(mm)	20
Impedance1(20degC/100Hz)	(m?)	0.052
Impedance2 (-10degC/100Hz)	(m?)	0.104
Rated Ripple Current1	(mA r.m.s.)	1220 (Ctgy Temp(Max),100kHz)
Rated Ripple Current2	(mA r.m.s.)
Leakage Current1	(µA)
Leakage Current2	(µA)
Dissipation Factor	(DF)
Lead Pitch	(mm)	6
Weight	(g)
Enviroment
Features		105degC Very low impedance

Tags de 1500UF-6.3V-105-LXZ-NCC: 1500uf 6.3v, 1500uf x 6,3v, Capacitor Eletrolitico, Capacitor para Fonte, Capacitor LXZ, Eletrolitico, Componentes Eletronicos, NIPPON CHEMI-CON, NIPPON CHEMI-CON

1500UF-6.3V-105-LXZ-NCC Nichicon LXZ capacitor eletrolítico 1500uf x 6.3v 105oC LXZ Series High Reliability

Condição de 1500UF-6.3V-105-LXZ-NCC:
Novo em embalagem comercial

Garantia de 1500UF-6.3V-105-LXZ-NCC:
3 meses direto com a Net Computadores

Nippon Chemi-Con (NCC) is the first class capacitor made in Japan.
This is the Premium grade capacitor for Power Supply Output Filter.This series is the BEST in Nippon Chemi-Con (NCC) for Power Supply Output Filter capacitor.The LXZ Series is High Reliability.

FEATURES
-Innovative electrolyte and internal architecture are employed
-Very low impedance at high frequency
-Endurance with ripple current: 2,000 to 8,000 hours at 105C
Nippon Chemi-Con (NCC) LXZ series 6.3V 1500UF Low Impedance Capacitors.This is Nichicon LXZ series

	Units	Performance
Appearance		Radial Lead
Series		LXZ
Rated Voltage	(V)	6.3,DC
Rated Capacitance	(µF)	1500
Tolerance	(%)	-20 to 20
Category Temperature Range	(degC)	-55 to 105
Life Time	(h)	5000
Size(Diameter)	(mm)	10
Size(Length)	(mm)	20
Impedance1(20degC/100Hz)	(m-)	0.052
Impedance2 (-10degC/100Hz)	(m-)	0.104
Rated Ripple Current1	(mA r.m.s.)	1220 (Ctgy Temp(Max),100kHz)
Rated Ripple Current2	(mA r.m.s.)
Leakage Current1	(µA)
Leakage Current2	(µA)
Dissipation Factor	(DF)
Lead Pitch	(mm)	6
Weight	(g)
Enviroment
Features		105degC Very low impedance
