2D42

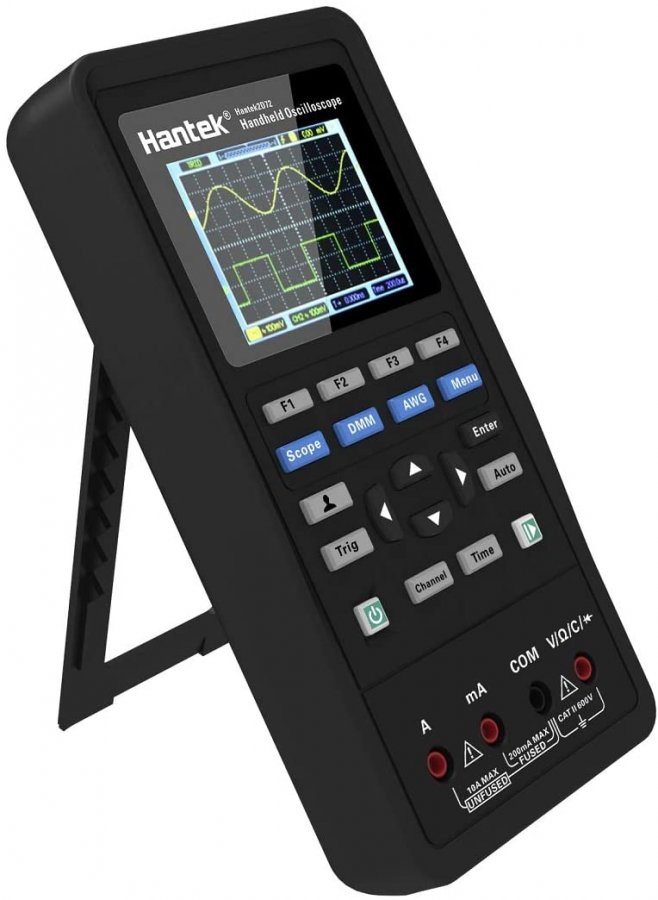

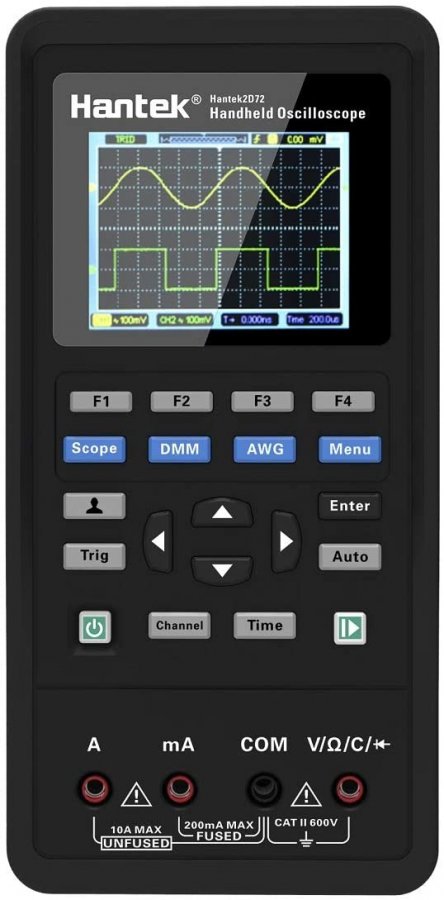

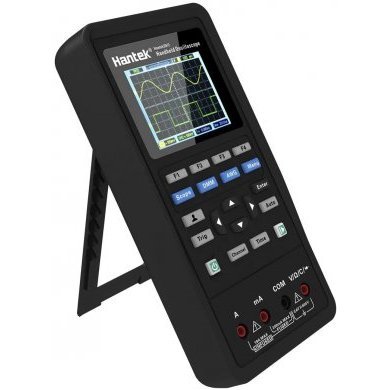

Osciloscopio Digital Hantek 2D42 40Mhz

Osciloscopio, Gerador de onda e Multímetro, 2 CH/AFG/DMM

2D42 Osciloscopio Digital Hantek 2D42 40Mhz

*Imagens ilustrativas

2D42

Osciloscopio Digital Hantek 2D42 40Mhz

Osciloscopio, Gerador de onda e Multímetro, 2 CH/AFG/DMM

Condição:

novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

90302010

envio de 20 a 40 dias uteis

Site
Loja Física

R$ 3.456,50

À vista já com 5% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou no cartão de crédito por R$ 3.638,42

Condição exclusiva para o site. Parcelas serão exibidas na tela de pagamento.

R$ 3.456,50

À vista já com 10% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou R$ 3.840,56 no cartão de crédito em até 10x sem juros

Condição exclusiva para compras presenciais na loja física.

Preço e prazo desatualizados, solicite revisão antes de comprar

Adicionar ao carrinho

Comprar agora

Preço e prazo desatualizados, solicite revisão antes de comprar

R$ 3.456,50

à vista no pix

Comprar

Condição: novo em embalagem comercial

Garantia: 12 meses direto com a Net Computadores

NCM: 90302010

cotar mais de 1 peça de 2D42
indicar a um amigo 2D42

Net Computadores

desde 1998, atua como revenda de equipamentos para informática com foco em hardware para TI empresarial.

saiba mais

2D42 Osciloscopio Digital Hantek 2D42 40Mhz

Condição de 2D42: novo em embalagem comercial

Oscilloscope Waveform Generator Multimeter: This multi-purpose station own three universal test instrument s. It is outgoing right-hand product for engineers.
Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow charging, using, very convenient and handy;
Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;
Large-capacity lithium battery power supply: Tesla style 18650 replaceable lithium battery power system, free from replace battery;
5V/2A charger Type C charging cable: Type C power data transfer interface, can share the charger and data cable with your mobile phone;
AUTO one-key test: Magic tool and essential for test newbie;
Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;
One key page out, quick compare two groups of reference waveforms 6 groups of waveforms storage, simple and effective;
Digital voltmeter : automatic frequency and amplitude measurement, convenient and worry-free;
Its cursor measurement supports time and voltage manual measurement, and measure the required waveforms accurately;
One-click switching its Chinese and English language menu;
Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;
Minimalist keyboard design simplify operation, convenient to use;
Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;
Self-calibration : free from level drift after long time unused;
Universal multimeter : voltage, current, resistance, diode, capacitor, on-off test;
Waveform generator output : output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;

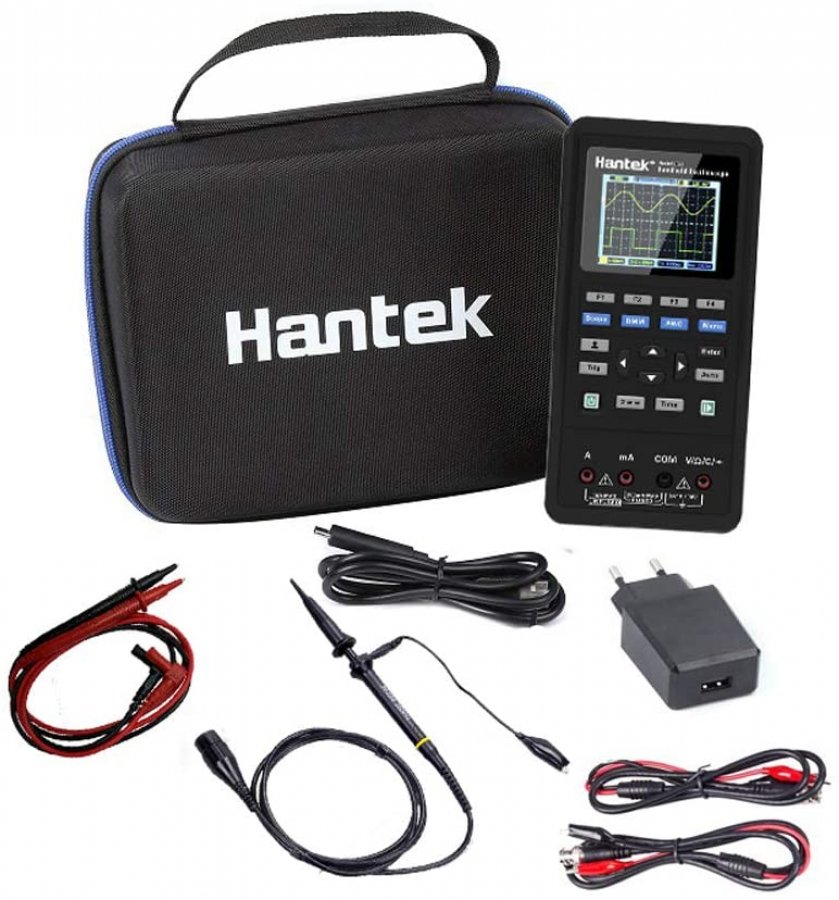

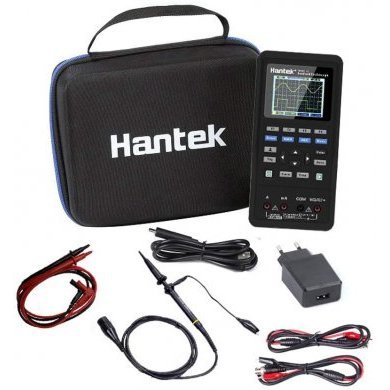

Package includes:
Main body: x1
Probe: x1
Clip Probe: x2
Type Charging Cable: x1
Power Adapter: x1
Multimeter Probe: x1
Bag: x1

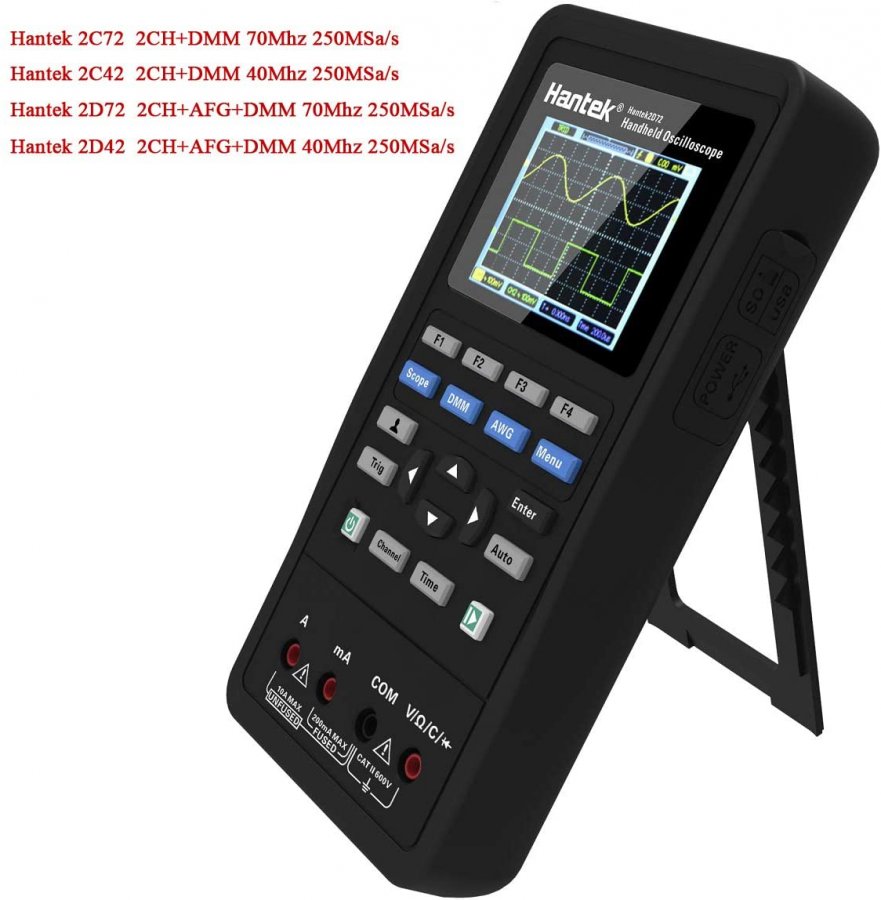

Model	Hantek2D72	Hantek2D42	Hantek2C72	Hantek2C42
Oscilloscope Mode
Bandwidth	70MHz	40MHz	70MHz	40MHz
Channel	2CH DMM AWG	2CH DMM AWG	2CH DMM	2CH DMM

Horizontal
Sample Rate Range	250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation	(sin x)/x
Record Length	Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range	5ns/div~500s/div 1, 2, 5 sequence
Vertical
A/D Converter	8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range	10mV/div~10V/divat input BNC
Bandwidth Limit, typical	20MHz

Low Frequency Response (-3db)	10Hz at BNC
Rise Time at BNC, typical	5ns
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes	Normal
Trigger
Type	Edge
Mode	Auto, Normal, single
Level	±4 divisions from center of screen
Trigger Level Accuracy	0.2div × volts/div within ±4 divisions from center of screen
Slope	Rising, Falling, Rising e Falling
Source	CH1/CH2

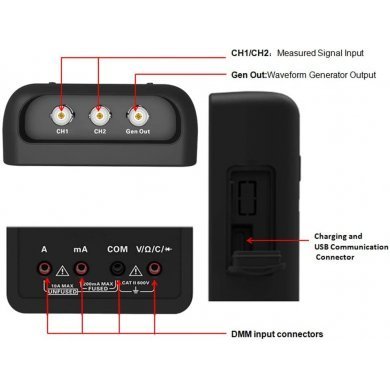

Input
Coupling	DC, AC or GND
Input Impedance,	25pF±3 pF, 1M-±2%
DC coupled
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factors	1X, 10X, 100X, 1000X
Maximum Input Voltage	150VRMS
Measurement
Cursor	Voltage difference between cursors: -V
	Time difference between cursors: -T
Automatic Measurements	Frequency, Amplitude
Arbitrary Waveform Generator Mode
Waveform Frequency	Sine: 1Hz~25MHz		-	-
	Square: 1Hz~10MHz		-	-
	Ramp: 1Hz~1MHz		-	-
	EXP: 1Hz~5MHz		-	-
Sampling	250MSa/s		-	-
Amplitude	2.5Vpp(50-)		-	-
	5Vpp(High impedance)		-	-
Frequency Resolution	0.10%		-	-
Channel	1CH waveform output		-	-
Waveform Depth	512Sa		-	-
Vertical Resolution	12 bit		-	-
Output Impedance	<50		-	-
DMM
Maximum Resolution	4000 Counts
DMM Testing Modes	Voltage,Current,Resistance,Capacitance,Diode
