90MB1H60-M0EAY0 Asus placa mãe AMD Prime A520M-R AM4 mATX

Name: 90MB1H60-M0EAY0 Asus placa mãe AMD Prime A520M-R AM4 mATX
Brand: Asus
SKU: 90MB1H60-M0EAY0
Price: 499.00 BRL
Availability: InStock

DDR4 até 64GB, HDMI, M.2, Chipset A520

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 499,00

à vista no Pix ou Boleto

ou R$ 525,26 em 1x no cartão (via site)

ou R$ 554,44 no cartão em até 10x sem juros (apenas na loja física)

R$ 499,00

à vista no Pix ou Boleto

R$ 525,26
em 1x no cartão (via site)

R$ 554,44 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

84733041

R$ 499,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 84733041

Cotação PJ mais de uma unidade

Indicar 90MB1H60-M0EAY0

90MB1H60-M0EAY0 Asus placa mãe AMD Prime A520M-R AM4 mATX
DDR4 até 64GB, HDMI, M.2, Chipset A520

Condição de 90MB1H60-M0EAY0: Novo em embalagem comercial

Garantia de 90MB1H60-M0EAY0: 12 meses Assist. Técnica do Fabricante

Outros PNs para este item: A520M-R

Características:
- Marca: ASUS
- Modelo:PRIME A520M-R

Especificações:
- Notícias e Updates: Socket AM4

CPU:
- AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors*
- Refer to www.asus.com for CPU support list.

Chipset:
- AMD A520 Chipset

Memória
- 2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*
- Dual channel memory architecture
- ECC memory (ECC mode) support varies by CPU.
- Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit xx//www.asus.com/support/.

Gráficos:
- 1 x HDMI port**
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- Supports 4K@60Hz as specified in HDMI 2.1.

Slots de Expansão:
- AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop
Processors
- 1 x PCIe 3.0 x16 slot (supports x16 mode)
- AMD A520 Chipset
- 1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to xx//www.asus.com/support/ for the list of supported peripherals.

Rede:
- 1 x Realtek 1Gb Ethernet

USB:
- Rear USB (Total 6 ports)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Áudio:
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

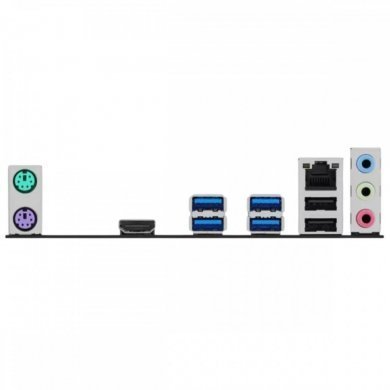

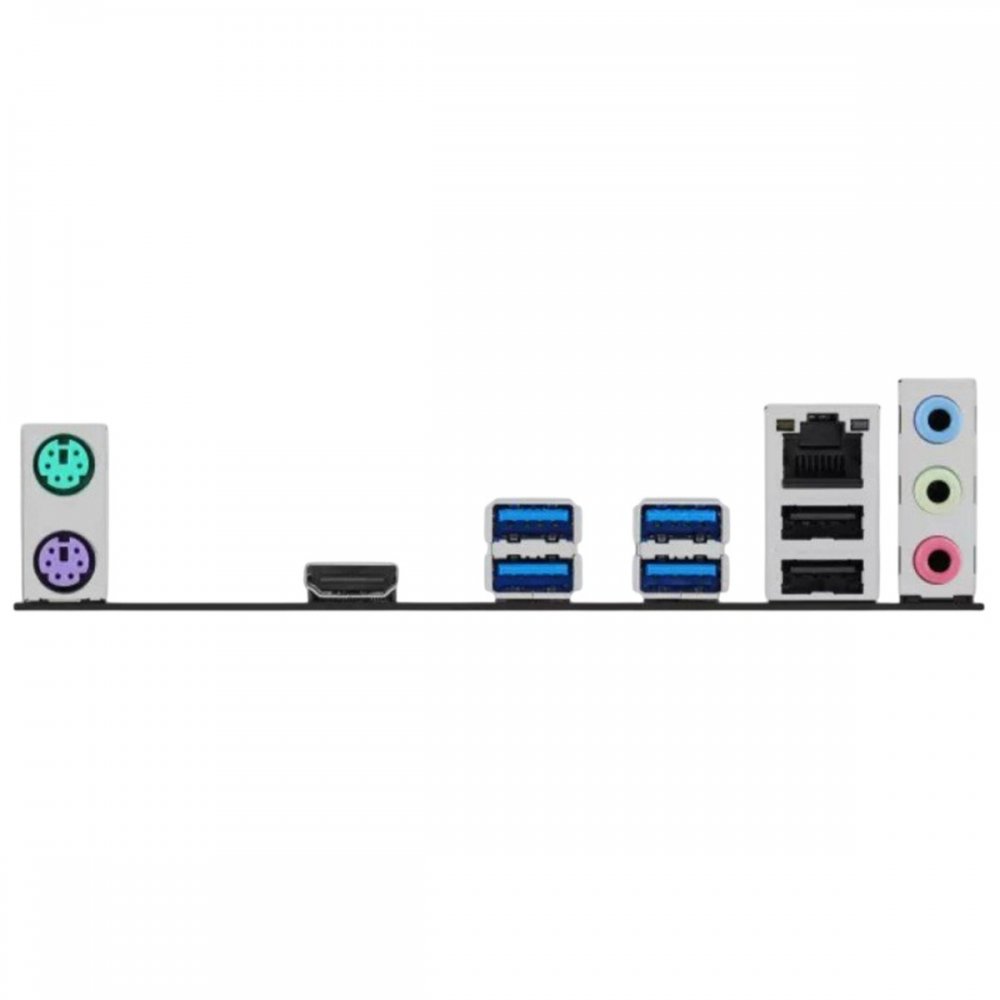

Portas I/O no painel Traseiro
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x HDMI port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 keyboard (purple) port
- 1 x PS/2 mouse (green) port

Painel Interno:
Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
Power Related
- 1 x 24-pin Main Power connector
- 1 x 4-pin +12V Power connector
Storage Related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
USB
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header

Recursos Especiais:
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
- ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
- ASUS Thermal Solution
- Aluminum heatsink design

Recursos de Software:
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
- EPU
- DIGI+ VRM
- Fan Xpert
- EZ update
- PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS:
- 128 Mb Flash ROM, UEFI AMI BIOS

Gerenciamento:
- WOL by PME, PXE

Acessórios
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O shield
- 1 x M.2 anchor

Documentation
- 1 x Quick start guide

Sistema Operacional:
- Windows 11, Windows 10 64-bit

Formato
- micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )

Conteúdo Da Embalagem:
- Placa-Mãe ASUS PRIME A520M-R

Maiores detalhes de 90MB1H60-M0EAY0 no site do fabricante:
https://www.asus.com/br/motherboards-components/motherboards/prime/prime-a520m-r
