Condição de ADM2PX4: novo em embalagem comercial

Manufacturer/Supplier: Addonics Technologies
Manufacturer Part Number: ADM2PX4
Manufacturer Website Address:
Brand Name: Addonics
Product Model: ADM2PX4

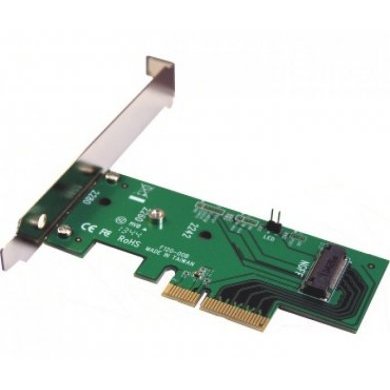

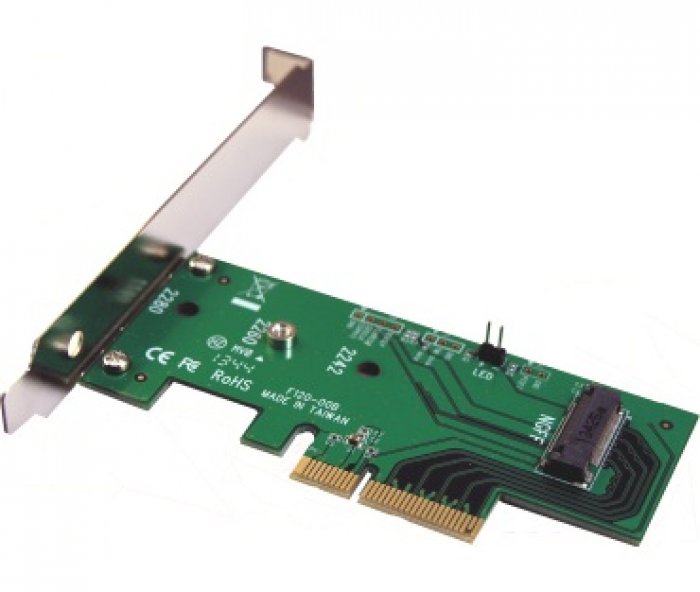

Product Name: M2 PCIe SSD - PCIe 3.0 4-Lane Adapter
Marketing Information: This M2 PCIe SSD adapter enable installing the M2 PCI SSD into a PCIe 4 lane slot of any Desktop system or server. Designed to accommodate M2 PCIe SSD in 42, 60 or 80 mm length, the SATA - M2 SSD adapter is a simple economical solution to replace a mechanical hard drive with a low power, shock resistant and high performance Solid State Drive. Once installed, the M2 PCIe SSD becomes a high-speed solid state drive to the OS.


Install M2 PCIe or NVMe SSD* into PCIe 4-Lane slot
Support M2 PCIe Gen3 and PCIe Gen2 SSD in length of 30, 42, 60 and 80 mm

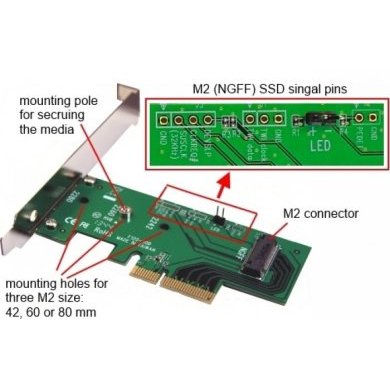

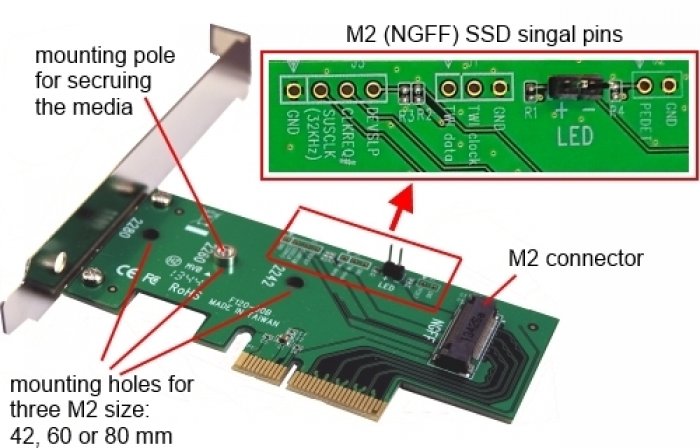

Supports dual-sided SSD module with 1.5mm component height on the top and bottom side
Support PCIe 1.0, 2.0 or 3.0 slot
Maximum transfer rate depends on the speed of the M2 PCIe SSD and the type of PCIe slot
Installable in standard height or low profile system (low profile bracket included)
Replace any SATA hard drive in Desktop or server equipment with a low power and shock resistant M2 PCIe SSD
M2 PCIe SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
Industrial operating temperature: -40 °C to + 80 °C
OS requirement:
M2 PCIe SSD - OS independent. No software driver required.
M2 NVMe SSD - Supported under Windows 10, Windows 7 and Windows server 2008 R2
Windows 10 - no driver required
Windows 7 and Windows Server 2008 R2 require following update from Microsoft- (xx//support.microsoft.com/en-us/kb/2990941)
All other OS, please see more information at the following web page xx//en.wikipedia.org/wiki/NVM_Express.


*Note:

M2 PCIe or NVMe SSD are not the same as the M2 SATA SSD. M2 SATA SSD can be installed into this adapter but will not be operable. The M2 PCIe SSD communicates via PCIe BUS and the data throughput depends on the speed of the M2 media and the PCIe BUS. A 4-Lane PCIe 1.0 slot has a maximum speed limit of 10 Gbps whereas a 4-Lane PCIe 3.0 slot supports a maximum speed of 40 Gbps.

The M2 PCIe and NVMe SSD communicates via PCIe BUS and the data throughput depends on the speed of the M2 media and the PCIe BUS. A 4-Lane PCIe 1.0 slot has a maximum speed limit of 10 Gbps whereas a 4-Lane PCIe 3.0 slot supports a maximum speed of 40 Gbps.

NVMe SSD installation:

BIOS in some older system may not support NVMe Express. System with UEFI BIOS may be required. Please verify with your system manufacturer to confirm the support of NVMe Express in the PCIe slot.
Software driver is required for installing 2.5 NVMe U.2 SSD. You may contact the SSD manufacturer web site to download the necessary driver for your OS

ADM2PX4 Adaptador Addonics M2 para PCIe 3.0 SSD

Maiores detalhes de ADM2PX4 no site do fabricante:
http://www.addonics.com/products/adm2px4.php

Condição de ADM2PX4: novo em embalagem comercial

Tags de ADM2PX4: ADM2PX4, Addonics ADM2PX4, Adaptador Addonics ADM2PX4, Placa SSD PARA M2, Adaptador M2, Conector M2, Adaptador M2 para PCI Express, Addonics Technologies, Addonics Technologies
