CONVMBHS24K6G Blackmagic Design Conversor HDMI to SDI 6G

4K HDMI Input, 2 x 6G-SDI Outputs

CONVMBHS24K6G Blackmagic Design Conversor HDMI to SDI 6G

*As imagens podem ser ilustrativas

Blackmagic Design Conversor HDMI to SDI 6G

envio de 30 a 60 dias uteis

R$ 0,00

à vista no Pix ou Boleto

ou R$ 0,00 em 1x no cartão (via site)

ou R$ 0,00 no cartão em até 10x sem juros (apenas na loja física)

R$ 0,00

à vista no Pix ou Boleto

R$ 0,00
em 1x no cartão (via site)

R$ 0,00 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85437039

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85437039

Cotação PJ mais de uma unidade

Indicar CONVMBHS24K6G

CONVMBHS24K6G Blackmagic Design Conversor HDMI to SDI 6G
4K HDMI Input, 2 x 6G-SDI Outputs

Condição de CONVMBHS24K6G: Novo em embalagem comercial

Garantia de CONVMBHS24K6G: 12 meses direto com a Net Computadores

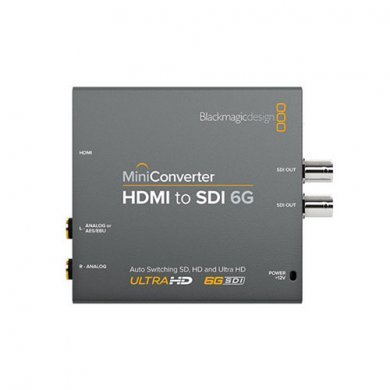

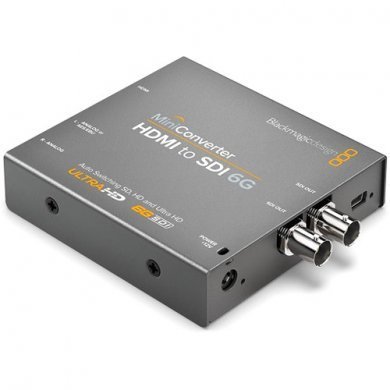

Blackmagic Design CONVMBHS24K6G Overview The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4 input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.

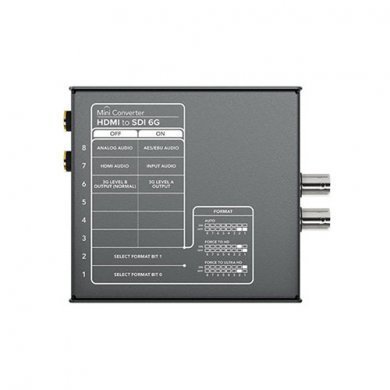

The Mini Converters settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Designs website. The USB port also enables the firmware to be updated.
The device is powered by an included 12V power supply and includes international socket adapters.
Additional Features

4:2:2 Sampling and color precision
HD scaler and SD down-conversion
24-bit, 48 kHz audio sampling
Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards

Video Input	1 x HDMI, Type A
Video Output	2 x 6G-SDI
Multi-Rate Support	Auto detection of SD, HD, 3G, or 6G-SDI signals
Reclocking	Yes
Audio Input	Analog: 2 channels with 1 x 1/4 jack per channel AES/EBU: 4 channels with 1 x 1/4 jack
Format Support	DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50
SDI Compliance	SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601
SDI Video Rates	Switchable between SD, HD, Ultra HD and DCI 4K
SDI Video Sampling	4:2:2
SDI Color Precision	4:2:2
SDI Color Space	YUV
SDI Audio Sampling	24-bit, 48 kHz
SDI Auto Switching	Automatically detects SD, HD, or 6G-SDI
HDMI Format Support	UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50
HDMI Color Space	YUV and RGB
HDMI Color Precision	4:2:2 4:4:4
HDCP Compliance	No. HDMI input is unable to capture from copy-protected HDMI sources
Format Conversion	HD down-conversion
Settings Control	Mini switches or USB software
Firmware Upgradeable	Via USB
Power Supply	12 VDC
Power Consumption	4.44 W
Operational Voltage Range	12 to 31 VDC
Operating Temperature	32 to 104°F / 0 to 40 °C
Storage Temperature	-4 to 113°F / -20 to 45 °C
Relative Humidity	0 to 90% non-condensing
Dimensions	4.49 x 3.63 x 0.90 / 11.40 x 9.22 x 2.29 cm
Weight	8.6 oz / 243.8 g

Tags de CONVMBHS24K6G: CONVMBHS24K6G, Blackmagic Design CONVMBHS24K6G, Blackmagic Design Mini Conversor, Black Magic, Conversor HDMI para SDI, Conversor HDMI, Conversor SDI, Blackmagic Design

CONVMBHS24K6G Blackmagic Design Conversor HDMI to SDI 6G 4K HDMI Input, 2 x 6G-SDI Outputs

Condição de CONVMBHS24K6G:
Novo em embalagem comercial

Garantia de CONVMBHS24K6G:
12 meses direto com a Net Computadores

Blackmagic Design CONVMBHS24K6G Overview

The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4 input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.
The Mini Converters settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Designs website. The USB port also enables the firmware to be updated.
The device is powered by an included 12V power supply and includes international socket adapters.

Additional Features

4:2:2 Sampling and color precision
HD scaler and SD down-conversion
24-bit, 48 kHz audio sampling
Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards

Video Input	1 x HDMI, Type A
Video Output	2 x 6G-SDI
Multi-Rate Support	Auto detection of SD, HD, 3G, or 6G-SDI signals
Reclocking	Yes
Audio Input	Analog: 2 channels with 1 x 1/4 jack per channel AES/EBU: 4 channels with 1 x 1/4 jack
Format Support	DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50
SDI Compliance	SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601
SDI Video Rates	Switchable between SD, HD, Ultra HD and DCI 4K
SDI Video Sampling	4:2:2
SDI Color Precision	4:2:2
SDI Color Space	YUV
SDI Audio Sampling	24-bit, 48 kHz
SDI Auto Switching	Automatically detects SD, HD, or 6G-SDI
HDMI Format Support	UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50
HDMI Color Space	YUV and RGB
HDMI Color Precision	4:2:2 4:4:4
HDCP Compliance	No. HDMI input is unable to capture from copy-protected HDMI sources
Format Conversion	HD down-conversion
Settings Control	Mini switches or USB software
Firmware Upgradeable	Via USB
Power Supply	12 VDC
Power Consumption	4.44 W
Operational Voltage Range	12 to 31 VDC
Operating Temperature	32 to 104°F / 0 to 40 °C
Storage Temperature	-4 to 113°F / -20 to 45 °C
Relative Humidity	0 to 90% non-condensing
Dimensions	4.49 x 3.63 x 0.90 / 11.40 x 9.22 x 2.29 cm
Weight	8.6 oz / 243.8 g
