CONVMBSH4K6G Blackmagic Design Conversor SDI to HDMI 6G

2 x 4K SDI Input, 1 x HDMI Type A and 1 x SDI Output

CONVMBSH4K6G Blackmagic Design Conversor SDI to HDMI 6G

*As imagens podem ser ilustrativas

Blackmagic Design Conversor SDI to HDMI 6G

envio de 30 a 60 dias uteis

R$ 3.173,00

à vista no Pix ou Boleto

ou R$ 3.339,11 em 1x no cartão (via site)

ou R$ 3.524,61 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.173,00

à vista no Pix ou Boleto

R$ 3.339,11
em 1x no cartão (via site)

R$ 3.524,61 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85437039

R$ 3.173,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85437039

Cotação PJ mais de uma unidade

Indicar CONVMBSH4K6G

CONVMBSH4K6G Blackmagic Design Conversor SDI to HDMI 6G
2 x 4K SDI Input, 1 x HDMI Type A and 1 x SDI Output

Condição de CONVMBSH4K6G: Novo em embalagem comercial

Garantia de CONVMBSH4K6G: 12 meses direto com a Net Computadores

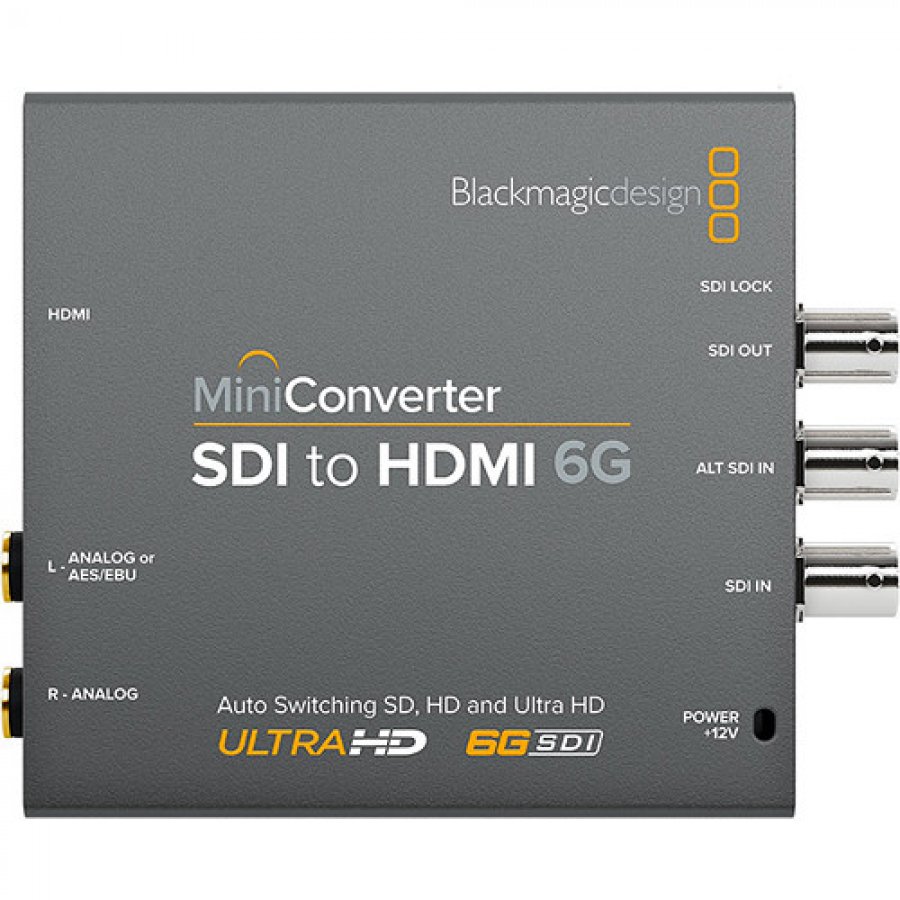

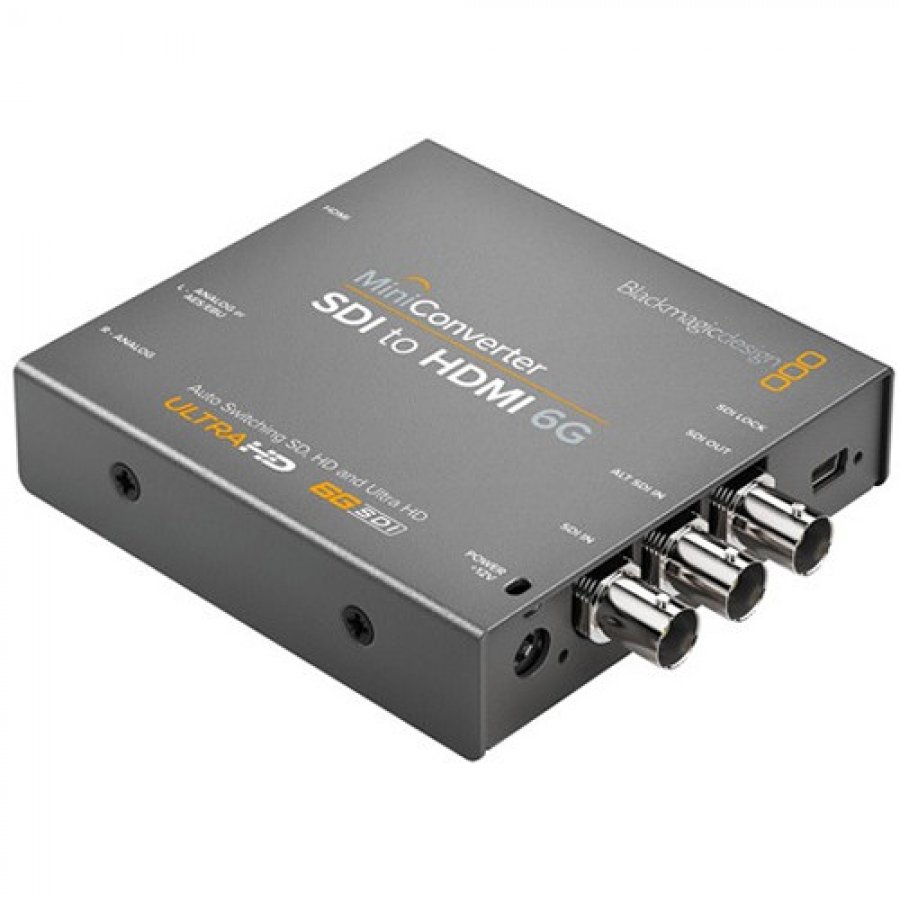

The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output.
The Mini Converters settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Designs website. The USB port also enables the firmware to be updated.
The device is powered by an included 12V power supply and includes international socket adapters.
Additional Features

4:2:2 Sampling and color precision
HD scaler and SD down-conversion
24-bit, 48 kHz audio sampling
Compliant with SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, and SMPTE ST-2081 standards
Down-conversion for monitoring Ultra HD on HD monitors
Built-in 3D LUTs

HDMI instant lock for instant video display when an SDI input is connected

Blackmagic Design CONVMBSH4K6G Specs

Video Input	2 x 6G-SDI
Video Output	1 x HDMI type A 1 x 6G-SDI
Multi-Rate Support	Auto detection of SD, HD, or 4K signals
Reclocking	Yes
Audio Output	Analog: 2 channels with 1 x 1/4 jack per channel AES/EBU: 4 channels with 1 x 1/4 jack
Format Support	DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50
SDI Compliance	SMPTE 259M/292M/296M/372M/424M/425M Level A or Level B/SMPTE ST-2081
SDI Video Rates	SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI.
SDI Video Sampling	4:2:2 4:4:4
SDI Color Precision	4:2:2 4:4:4
SDI Color Space	YUV RGB
SDI Audio Sampling	24-bit, 48 kHz
SDI Auto Switching	Automatically detects SD, HD, or 6G-SDI
HDMI Format Support	UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50
HDMI Color Space	YUV and RGB
HDMI Color Precision	4:2:2 4:4:4
Format Conversion	HD down-conversion
Settings Control	Mini switches or USB software
Firmware Upgradeable	Via USB
Power Supply	12 VDC
Power Consumption	5.2 W
Operational Voltage Range	12 to 31 VDC
Operating Temperature	32 to 104F / 0 to 40 C
Storage Temperature	-4 to 113F / -20 to 45 C
Relative Humidity	0 to 90% non-condensing
Dimensions	4.49 x 3.63 x 0.90 / 11.40 x 9.22 x 2.29 cm
Weight	9.06 oz / 256.85 g
