CPC1002NTR RELE DE ESTADO SOLIDO CPC1002N 0-60V 700mA

SINGLE POLE NORMALLY OPEN RELAY SPST-NO 700MA 0-60V 400MW 4-SOP

CPC1002NTR RELE DE ESTADO SOLIDO CPC1002N 0-60V 700mA

*As imagens podem ser ilustrativas

RELE DE ESTADO SOLIDO CPC1002N 0-60V 700mA

Você pode comprar e retirar este item na loja física da Net Computadores ou também pelo site, entregamos em todo Brasil

em estoque, envio imediato

R$ 2,45

à vista no Pix ou Boleto

ou R$ 2,58 em 1x no cartão (via site)

ou R$ 2,72 no cartão em até 10x sem juros (apenas na loja física)

R$ 2,45

à vista no Pix ou Boleto

R$ 2,58
em 1x no cartão (via site)

R$ 2,72 no cartão
em até 10x sem juros
(apenas na loja física)

Adicionar ao carrinho

Condição:

novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85412920

cotar CPC1002NTR

indicar CPC1002NTR

R$ 2,45

à vista no pix

Comprar

Condição:
novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 85412920

CPC1002NTR RELE DE ESTADO SOLIDO CPC1002N 0-60V 700mA
SINGLE POLE NORMALLY OPEN RELAY SPST-NO 700MA 0-60V 400MW 4-SOP

Condição de CPC1002NTR: novo em embalagem comercial

Garantia de CPC1002NTR: 7 dias troca. Sem garantia após soldado

Outros PNs para este componente: CPC1002, CPC1002N

Description:

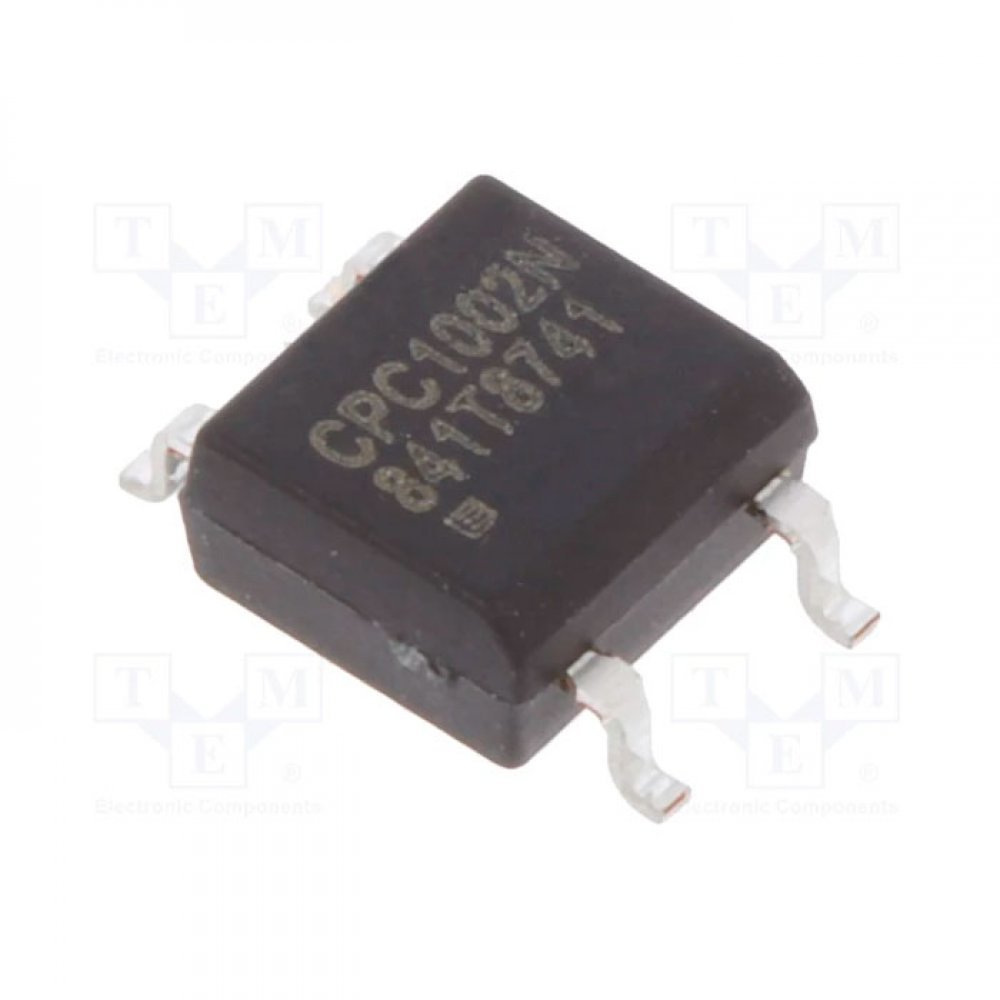

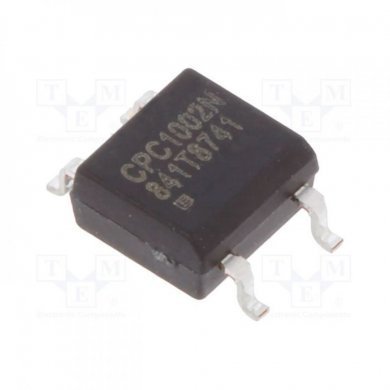

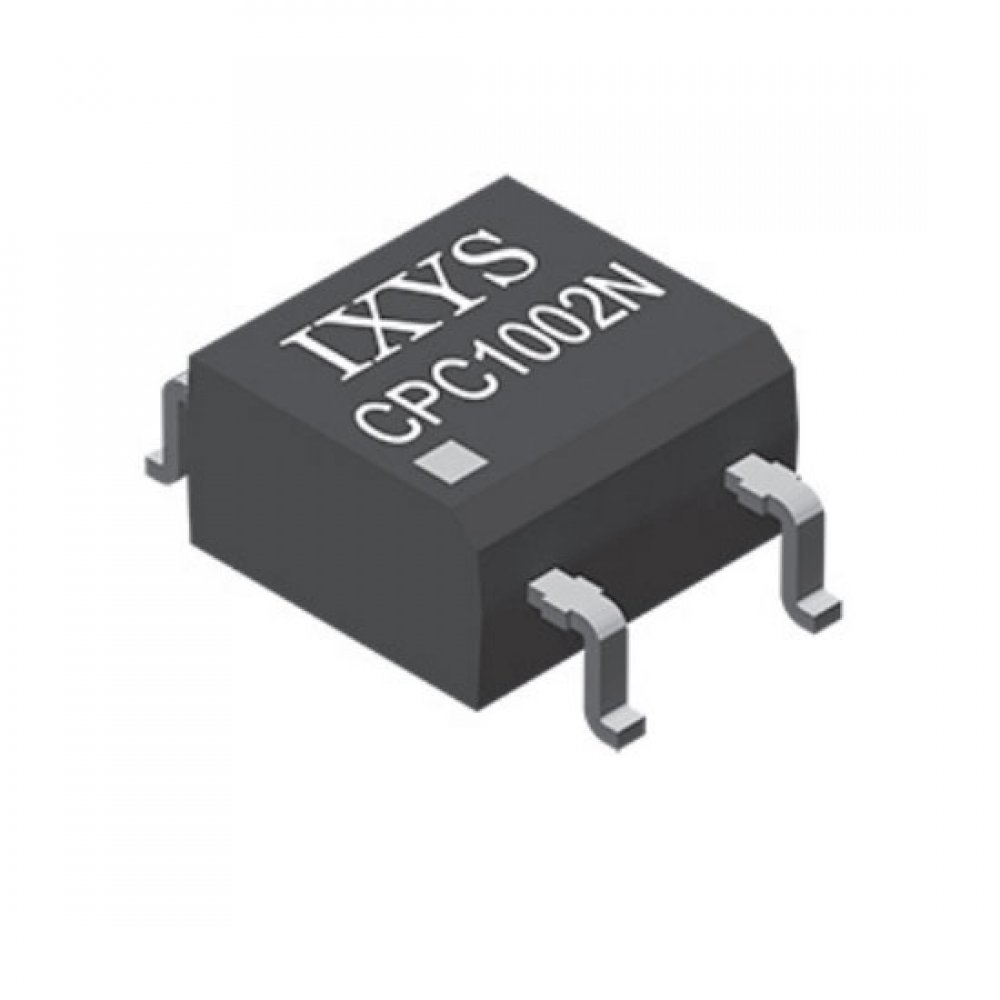

The CPC1002N is a miniature single-pole, normally-open (1-Form-A) solid state relay in a 4-pin SOP package that employs optically coupled MOSFET technology to provide 1500Vrms of input to output isolation. The super-efficient MOSFET switches and photovoltaic die use IXYS Integrated Circuits Division-s patented OptoMOS architecture the optically coupled output is controlled by a highly efficient infrared LED. IXYS Integrated Circuits Division-s state of the art double-molded vertical construction packaging enables CPC1002N to be one of the world-s smallest relays. It offers board space savings of at least 20% over the competitor-s larger 4-pin SOP relay

Features:
- Designed for Use in Security Systems Complying with EN50130-4
- Only 2mA of LED Current Required to Operate
- 1500Vrms Input/Output Isolation
- High Reliability
- No EMI/RFI Generation
- Immune to Radiated EM Fields
- Halogen Free
- Tape e Reel Version Available
- Small 4-Pin SOP Package
- Flammability Rating UL 94 V-0

Applications:
Security
- Passive Infrared Detectors (PIR)
- Data Signalling
- Sensor Circuitry
- Instrumentation
- Multiplexers
- Data Acquisition
- Electronic Switching
- I/O Subsystems
- Meters (Watt-Hour, Water, Gas)
- Medical Equipment-Patient/Equipment Isolation
- Industrial Controls

Manufacturer:	IXYS
Product Category:	Solid State Relays - PCB Mount

Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Mounting Style:	PCB Mount
Load Current Rating:	700 mA
Load Voltage Rating:	60 VDC
Relay Contact Form:	1 Form A (SPST-NO)
Control Voltage Range:	900 mVDC to 1.4 VDC
Package / Case:	SOP-4
Output Type:	MOSFET
Input Current:	50 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Length:	4.089 mm
Width:	3.81 mm
Height:	2.184 mm
Series:	CPC1002
Brand:	IXYS Integrated Circuits
Contact Form:	SPST (1 Form A)
Input to Output Isolation Method:	Optocoupler
Moisture Sensitive:	Yes
Pd - Power Dissipation:	400 mW
Product:	Solid State Relays
Product Type:	SSR - Solid State Relays

Maiores detalhes de CPC1002NTR no site do fabricante:
https://www.ixysic.com/home/pdfs.nsf/www/CPC1002N.pdf/$file/CPC1002N.pdf

Tags de CPC1002NTR: Solid State Relays, SPST-NO, CPC1017NTR, CPC1017, acoplador optico, acoplador otico, Solid State Relay, SSR SPST-NO, CPC1002NTR, iXYS

CPC1002NTR RELE DE ESTADO SOLIDO CPC1002N 0-60V 700mA SINGLE POLE NORMALLY OPEN RELAY SPST-NO 700MA 0-60V 400MW 4-SOP

Condição de CPC1002NTR:
novo em embalagem comercial

Garantia de CPC1002NTR:
7 dias troca. Sem garantia após soldado

Outros PNs para este componente: CPC1002, CPC1002N

Manufacturer:	IXYS
Product Category:	Solid State Relays - PCB Mount

Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Mounting Style:	PCB Mount
Load Current Rating:	700 mA
Load Voltage Rating:	60 VDC
Relay Contact Form:	1 Form A (SPST-NO)
Control Voltage Range:	900 mVDC to 1.4 VDC
Package / Case:	SOP-4
Output Type:	MOSFET
Input Current:	50 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Length:	4.089 mm
Width:	3.81 mm
Height:	2.184 mm
Series:	CPC1002
Brand:	IXYS Integrated Circuits
Contact Form:	SPST (1 Form A)
Input to Output Isolation Method:	Optocoupler
Moisture Sensitive:	Yes
Pd - Power Dissipation:	400 mW
Product:	Solid State Relays
Product Type:	SSR - Solid State Relays
