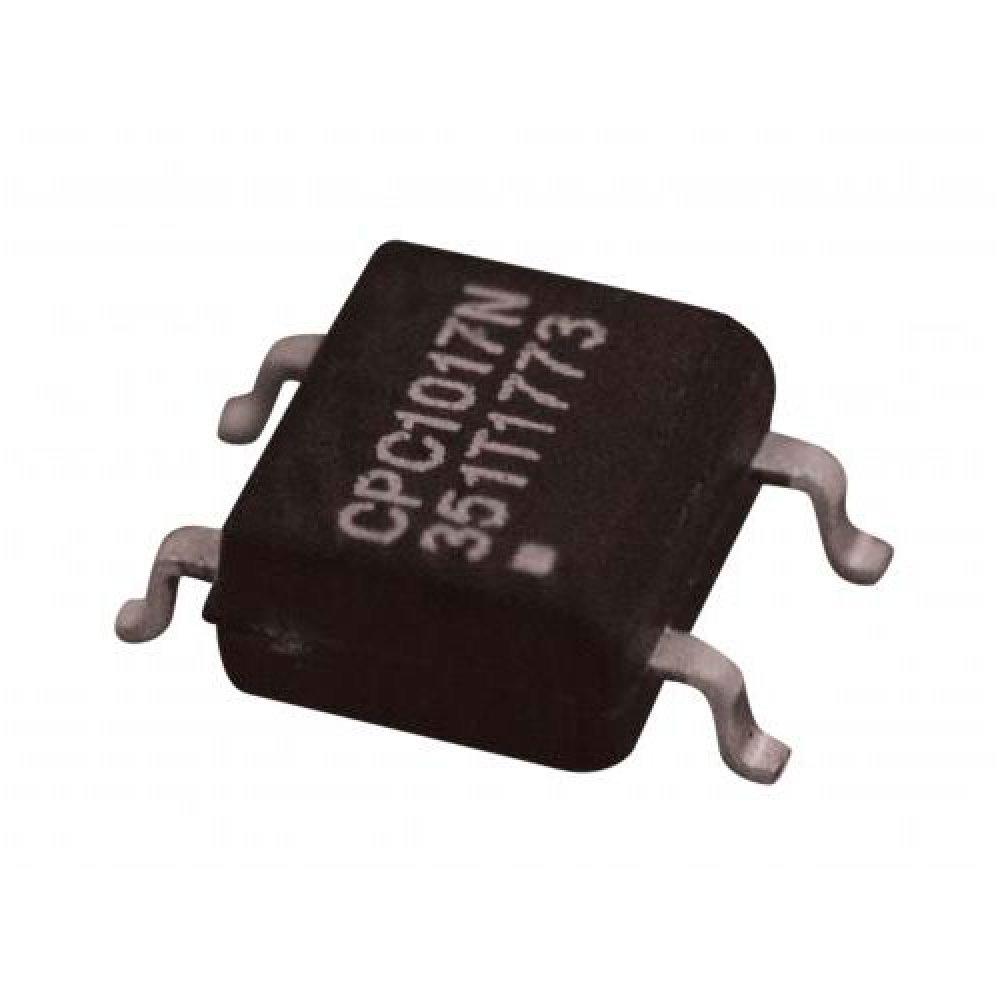

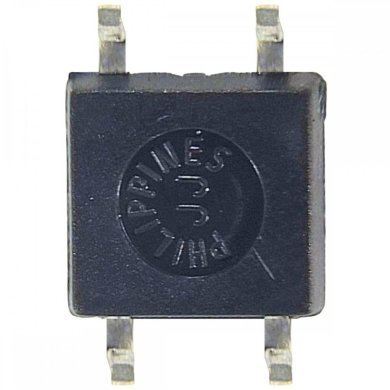

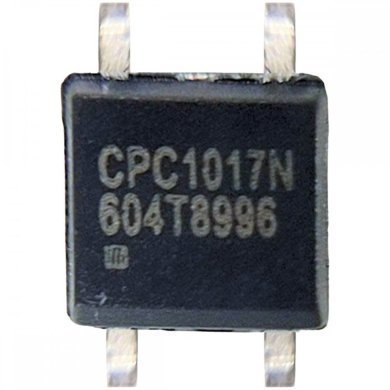

Single Pole, Normally Open 4 Lead SOP OptoMOS Relay
R$ 7,50
à vista no Pix ou Boleto
ou R$ 7,89 em 1x no cartão (via site)
ou R$ 8,33 no cartão em até 10x sem juros (apenas na loja física)
R$ 7,50
à vista no Pix ou Boleto
R$ 7,89
em 1x no cartão (via site)
R$ 8,33 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 7,50
à vista no pix
Condição:
novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85423190
Condição de CPC1017N: novo em embalagem comercial
Garantia de CPC1017N: 12 meses direto com a Net Computadores
Outros PNs para este componente: CPC1017
| Manufacturer: | IXYS |
| Product Category: | Solid State Relays - PCB Mount |
| RoHS: | |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Mounting Style: | PCB Mount |
| Load Current Rating: | 100 mA |
| Load Voltage Rating: | 60 VDC |
| Relay Contact Form: | 1 Form A (SPST-NO) |
| Control Voltage Range: | 900 mVDC to 1.4 VDC |
| Package / Case: | SOP-4 |
| Output Type: | MOSFET |
| Input Current: | 50 mA |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | 85 C |

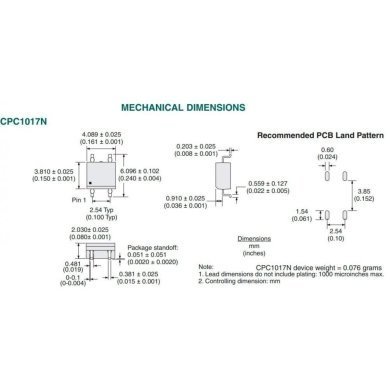

| Length: | 4.089 mm |
| Width: | 3.81 mm |
| Height: | 2.184 mm |
| Series: | CPC1017 |
| Brand: | IXYS Integrated Circuits |
| Contact Form: | SPST (1 Form A) |
| Input to Output Isolation Method: | Optocoupler |
| Moisture Sensitive: | Yes |
| Pd - Power Dissipation: | 400 mW |
| Product: | Solid State Relays |
| Product Type: | SSR - Solid State Relays |
Tags de CPC1017N: CPC1017, 60V 100mA Solid State Relay, OptoMOS Relay, Solid State Relays - PCB Mount 1-Form-A 60V 100mA Solid State Relay, iXYS

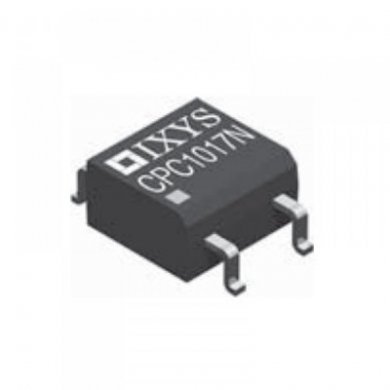

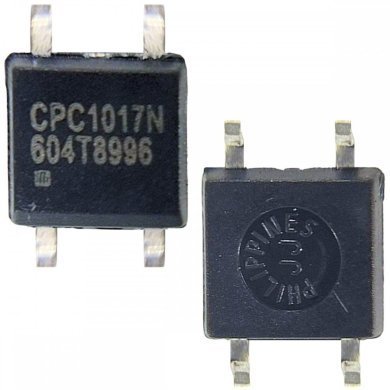

CPC1017N Rele de estado solido 60VDC 100mA 400mW Single Pole, Normally Open 4 Lead SOP OptoMOS Relay
Condição de CPC1017N:
novo em embalagem comercial
Garantia de CPC1017N:
12 meses direto com a Net Computadores
Outros PNs para este componente: CPC1017
| Manufacturer: | IXYS |
| Product Category: | Solid State Relays - PCB Mount |
| RoHS: | |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Mounting Style: | PCB Mount |
| Load Current Rating: | 100 mA |
| Load Voltage Rating: | 60 VDC |
| Relay Contact Form: | 1 Form A (SPST-NO) |
| Control Voltage Range: | 900 mVDC to 1.4 VDC |
| Package / Case: | SOP-4 |
| Output Type: | MOSFET |
| Input Current: | 50 mA |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | 85 C |
| Length: | 4.089 mm |
| Width: | 3.81 mm |
| Height: | 2.184 mm |
| Series: | CPC1017 |
| Brand: | IXYS Integrated Circuits |
| Contact Form: | SPST (1 Form A) |
| Input to Output Isolation Method: | Optocoupler |
| Moisture Sensitive: | Yes |
| Pd - Power Dissipation: | 400 mW |
| Product: | Solid State Relays |
| Product Type: | SSR - Solid State Relays |
Tags de CPC1017N: CPC1017, 60V 100mA Solid State Relay, OptoMOS Relay, Solid State Relays - PCB Mount 1-Form-A 60V 100mA Solid State Relay, iXYS
