PC 1M 100MHz, 2 Channels
R$ 4.078,00
à vista no Pix ou Boleto
ou R$ 4.292,31 em 1x no cartão (via site)
ou R$ 4.530,77 no cartão em até 10x sem juros (apenas na loja física)
R$ 4.078,00
à vista no Pix ou Boleto
R$ 4.292,31
em 1x no cartão (via site)
R$ 4.530,77 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 4.078,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 90303990
Condição de DSO-2250: Novo em embalagem comercial
Garantia de DSO-2250: 12 meses direto com a Net Computadores
|
Channel |
2 Channels |
|
Impedance |
1M? 25pF |
|
Coupling |
AC/DC/GND |
|
Vertical resolution |
8Bit |
|
Gain range |
10mV-5V, 9Steps |
|
DC accuracy |
±3% |
|
Timebase range |
4ns-1h, 38 Steps |
|
Vertical adjustable |
Yes |
|
Input protection |
Diode clamping |
|
X-Y |
Yes |
|
Autoset |
Yes (30Hz to 100MHz) |
|
EXT. input |
Yes |
|
Trigger Mode |
Auto, Normal and Single |
|
Trigger Slope |
/- |
|
Trigger level adjustable |
Yes |
|
Trigger Type |
Rising edge, falling edge |
|
Trigger Source |
CH1, CH2, EXT |
|
Pre/Post trigger |
0-100% |
|
Buffer size |
10K-512KB/Channel |
|
Shot bandwidth |
DC to 100MHz |
|
Max. Sample rate |
250MS/s |
|
Sampling selection |
Yes |
|
Waveform Display |
port/line, waveform average, persistence, intensity |
|
Network |
Open/Close |
|
Vertical mode |
CH1, CH2, Dual, ADD |
|
Cursor measurement |
Yes |
|
Spectrum analyzer |
|
|
Channel |
2 Channels |
|
Math |
FFT, addition, subtraction, multiplication, division. |
|
Bandwidth |
100MHz |
|
Cursor |
Frequency, Voltage |
|
Data Samples |
10K-512K/Channel |
|
Accessories |
S/W CD, probes, manual, USB cord |
Tags de DSO-2250: Osciloscopio, Ociloscopio, DSO-2250, DSO2250, 250ms/s, 250msa/s, Channel, Hantek, Ferramentas de Rede, Ferramentas para Rede, Hantek

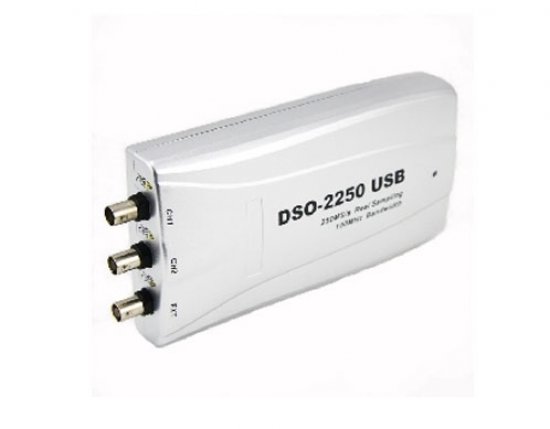

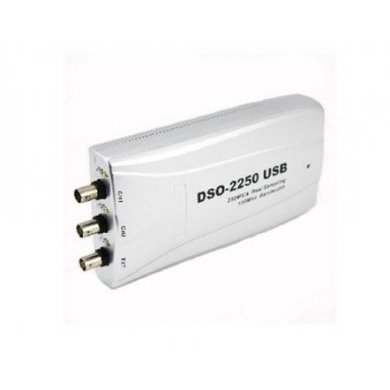

DSO-2250 Osciloscópio Digital HANTEK 250MSa/s USB PC 1M 100MHz, 2 Channels
Condição de DSO-2250:
Novo em embalagem comercial
Garantia de DSO-2250:
12 meses direto com a Net Computadores
|
Channel |
2 Channels |
|
Impedance |
1M- 25pF |
|
Coupling |
AC/DC/GND |
|
Vertical resolution |
8Bit |
|
Gain range |
10mV-5V, 9Steps |
|
DC accuracy |
±3% |
|
Timebase range |
4ns-1h, 38 Steps |
|
Vertical adjustable |
Yes |
|
Input protection |
Diode clamping |
|
X-Y |
Yes |
|
Autoset |
Yes (30Hz to 100MHz) |
|
EXT. input |
Yes |
|
Trigger Mode |
Auto, Normal and Single |
|
Trigger Slope |
/- |
|
Trigger level adjustable |
Yes |
|
Trigger Type |
Rising edge, falling edge |
|
Trigger Source |
CH1, CH2, EXT |
|
Pre/Post trigger |
0-100% |
|
Buffer size |
10K-512KB/Channel |
|
Shot bandwidth |
DC to 100MHz |
|
Max. Sample rate |
250MS/s |
|
Sampling selection |
Yes |
|
Waveform Display |
port/line, waveform average, persistence, intensity |
|
Network |
Open/Close |
|
Vertical mode |
CH1, CH2, Dual, ADD |
|
Cursor measurement |
Yes |
|
Spectrum analyzer |
|
|
Channel |
2 Channels |
|
Math |
FFT, addition, subtraction, multiplication, division. |
|
Bandwidth |
100MHz |
|
Cursor |
Frequency, Voltage |
|
Data Samples |
10K-512K/Channel |
|

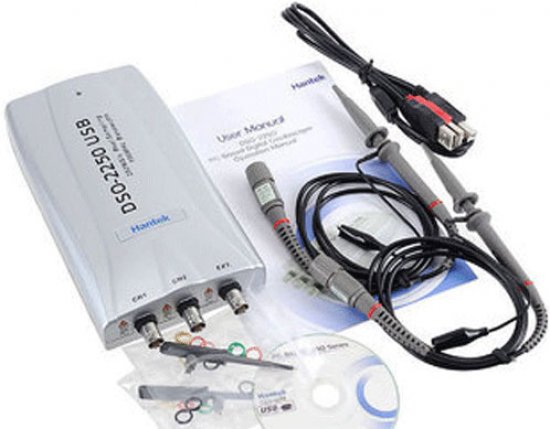

Accessories |
S/W CD, probes, manual, USB cord |
Tags de DSO-2250: Osciloscopio, Ociloscopio, DSO-2250, DSO2250, 250ms/s, 250msa/s, Channel, Hantek, Ferramentas de Rede, Ferramentas para Rede, Hantek
