250MHz 200mW SOT-23-3
R$ 163,00
à vista no Pix ou Boleto
ou R$ 171,23 em 1x no cartão (via site)
ou R$ 180,74 no cartão em até 10x sem juros (apenas na loja física)
R$ 163,00
à vista no Pix ou Boleto
R$ 171,23
em 1x no cartão (via site)
R$ 180,74 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 163,00
à vista no pix
Condição de DTC124ECAT116: Novo em embalagem comercial
Garantia de DTC124ECAT116: 3 meses direto com a Net Computadores
| Product Category: | Bipolar Transistors - Pre-Biased | |
| Manufacturer: | ROHM Semiconductor | |
| RoHS: | Details | |
| Configuration: | Single | |
| Transistor Polarity: | NPN | |
| Typical Input Resistor: | 22 kOhms | |
| Typical Resistor Ratio: | 1 | |
| Mounting Style: | SMD/SMT | |
| Package / Case: | SOT-23-3 | |
| DC Collector/Base Gain hfe Min: | 56 | |
| Maximum Operating Frequency: | 250 MHz | |
| Collector- Emitter Voltage VCEO Max: | 50 V | |
| Continuous Collector Current: | 100 mA | |
| Peak DC Collector Current: | 100 mA | |
| Pd - Power Dissipation: | 200 mW | |
| Maximum Operating Temperature: | 150 C | |
| Series: | DTx | |
| Packaging: | Reel | |
| Brand: | ROHM Semiconductor | |
| Channel Mode: | Enhancement | |
| Maximum DC Collector Current: | 100 mA | |
| Output Voltage: | 100 mV |
Tags de DTC124ECAT116: DTC124ECAT116, NPN 100MA 50V DIGITAL TRANSISTOR, Transistor DTX, SOT-23-3, SOT23-3, SOT23, ROTHCO, ROHM Semiconductor, ROHM Semiconductor

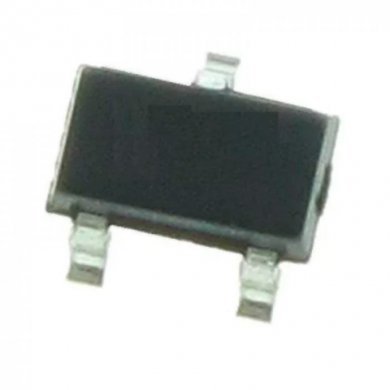

DTC124ECAT116 Transistor Digital NPN 100MA 50V (Kit com 10 peças) 250MHz 200mW SOT-23-3
Condição de DTC124ECAT116:
Novo em embalagem comercial
Garantia de DTC124ECAT116:
3 meses direto com a Net Computadores
| Product Category: | Bipolar Transistors - Pre-Biased | |
| Manufacturer: | ROHM Semiconductor | |
| RoHS: | Details | |
| Configuration: | Single | |
| Transistor Polarity: | NPN | |
| Typical Input Resistor: | 22 kOhms | |
| Typical Resistor Ratio: | 1 | |
| Mounting Style: | SMD/SMT | |
| Package / Case: | SOT-23-3 | |
| DC Collector/Base Gain hfe Min: | 56 | |
| Maximum Operating Frequency: | 250 MHz | |
| Collector- Emitter Voltage VCEO Max: | 50 V | |
| Continuous Collector Current: | 100 mA | |
| Peak DC Collector Current: | 100 mA | |
| Pd - Power Dissipation: | 200 mW | |
| Maximum Operating Temperature: | 150 C | |
| Series: | DTx | |
| Packaging: | Reel | |
| Brand: | ROHM Semiconductor | |
| Channel Mode: | Enhancement | |
| Maximum DC Collector Current: | 100 mA | |
| Output Voltage: | 100 mV |
Tags de DTC124ECAT116: DTC124ECAT116, NPN 100MA 50V DIGITAL TRANSISTOR, Transistor DTX, SOT-23-3, SOT23-3, SOT23, ROTHCO, ROHM Semiconductor, ROHM Semiconductor
