10/100BaseTX RJ45, 100BaseFX (Multi mode SC/ST connector)
R$ 3.507,00
à vista no Pix ou Boleto
ou R$ 3.691,57 em 1x no cartão (via site)
ou R$ 3.896,65 no cartão em até 10x sem juros (apenas na loja física)
R$ 3.507,00
à vista no Pix ou Boleto
R$ 3.691,57
em 1x no cartão (via site)
R$ 3.896,65 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 3.507,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85176294
Condição de EDS-208A-M-SC: Novo em embalagem comercial
Garantia de EDS-208A-M-SC: 12 meses direto com a Net Computadores
| Technology: | |
| Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward, with IEEE802.3x full duplex, non-blocking flow control |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Interface: | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Port(s) | 100BaseFX ports (SC/ST connector, multi-mode) |
| LED Indicators | Power, 10/100M (TP port), and 100M (fiber port) |
| Optical Fiber: | |
| Min. TX Output | -20 dBm |
| Max. TX Output | -14 dBm |
| RX Sensitivity | -34 to -30 dBm |
| Distance | 0 to 5 km, 1300 nm (50/125 gm, 800 MHz*km) 0 to 4 km, 1300 nm (62.5/125 gm, 500 MHz*km) |
| Physical Characteristics: | |
| Housing | Aluminum, IP30 protection |
| Dimensions | EDS-205A: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in) EDS-208A: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in) |
| Installation | DIN-Rail mounting, wall mounting (optional kit) |
| Environmental Limits: | |
| Operating Temperature | -10 to 60C (14 to 140F) |
| Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Power Requirements: | |
| Input Voltage | 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz) |
| Overload Current Protection | 1.1A |
| Connection | Removable 4-contact terminal block |
| Reverse Polarity Protection | Present |
| Regulatory Approvals | |
| Safety | EDS-205A: UL508 (Pending) EDS-208A: UL508 (Pending) |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS) EN61000-4-8 EN61000-4-11 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Product Category | |
| Product Category | Unmanaged Switch |
| Mechanical | |
| Dimensions: WxHxD (mm) | 40mm x 100mm x 86.5mm |
| Mounting | Din Rail |
| IP level | IP30 |
| Enclosure | Plastic |
| Data Rate and Number of Ports | |
| Number of Ports | 8 |
| Fast Ethernet, 10/100 Mbps | 7 |
| Gigabit, 10/100/1000 Mbps | - |
| Interface | |
| Interface Type | 10/100 Mbps RJ45, 100 Mbps Multi-mode SC |
| Fiber connector | 1 Multi-mode SC |
| PoE | - |
| M12 Connector | - |
| SFP | - |
| Digital I/O/Relay | - |
| Console | - |
| Bypass | - |
| Modular Design | - |
| Available Modular | - |
| Power | |
| Power Input Type | Single DC Terminal Block |
| Operating Supply Voltage | 24 VDC |
| Power Consumption | - |
| Reliability | |
| Operating Temperature | -10C to 60C |
| Redundancy and Backup Options | |
| Redundancy Technology | Yes |
| STP/RSTP/PSTP/MSTP | - |
| Automatic Backup Configurator | Yes |
| Certification | |
| Certification | - |
| UL 508 (Industrial Control) | Yes |
| EN 50155 (Rail Industry) | - |
| EN 50121-4 (Rail Industry) | - |
| EN 50121-3-2 (Rail Industry) | - |
| NEMA TS2 (ITS) | - |
| IEC 61850-3 (Power Industry) | - |
| IEEE 1613 (Power Industry) | - |
| IEEE 1588PTP (Power Industry) | - |
| DNV.GL (Marine) | - |
| ABS.LR.NK (Marine) | - |
| C1D2 (Oil e Gas) | Yes |
| ATEX (Oil |
Maiores detalhes de EDS-208A-M-SC no site do fabricante:
https://www.moxa.com/getmedia/2626cb10-a124-4937-a7bd-07ca2103587f/moxa-eds-208a
Tags de EDS-208A-M-SC: EDS-208A-M-SC, EDS208AMSC, EDS 208A M SC, industrial Ethernet switches, switch industrial, Conversor de midia, conversor midia moxa, moxa media converter, conversor de midia multimodo, conversor de fibra, conversor multimodo, EDS 208 AM-SC, switch moxa, =EDS-208A-M-SC, =EDS-208A-M-SC, MOXA

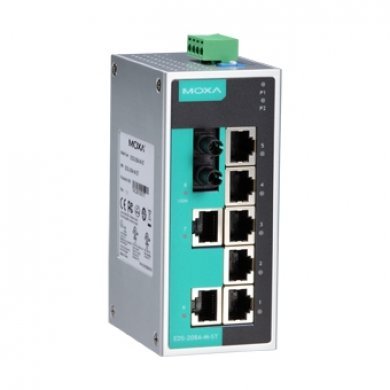

EDS-208A-M-SC Moxa industrial Ethernet switch 8x RJ45 2x SC port 10/100BaseTX RJ45, 100BaseFX (Multi mode SC/ST connector)
