R$ 17,00
à vista no Pix ou Boleto
ou R$ 17,02 em 1x no cartão (via site)
ou R$ 17,97 no cartão em até 10x sem juros (apenas na loja física)
R$ 17,00
à vista no Pix ou Boleto
R$ 17,02
em 1x no cartão (via site)
R$ 17,97 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 17,00
à vista no pix
Condição de FDMC7200: Novo em embalagem comercial
Garantia de FDMC7200: 3 meses direto com a Net Computadores
| Manufacturer: | onsemi |
| Product Category: | MOSFET |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | Power-33-8 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 2 Channel |
| Vds - Drain-Source Breakdown Voltage: | 30 V |
| Id - Continuous Drain Current: | 6 A, 8 A |
| Rds On - Drain-Source Resistance: | 10 mOhms, 19 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 2.3 V |
| Qg - Gate Charge: | 3.1 nC, 7 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | 150 C |
| Pd - Power Dissipation: | 2.2 W |
| Channel Mode: | Enhancement |
| Tradename: | PowerTrench |
| Series: | FDMC7200 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | onsemi / Fairchild |
| Configuration: | Dual |
| Fall Time: | 1.3 ns, 6 ns |
| Forward Transconductance - Min: | 29 S, 56 S |
| Height: | 0.8 mm |
| Length: | 3 mm |
| Product Type: | MOSFET |
| Rise Time: | 3.1 ns, 4 ns |
Maiores detalhes de FDMC7200 no site do fabricante:
https://www.mouser.com/datasheet/2/149/FDMC7200-526738.pdf
Tags de FDMC7200: fdmc7200, fdmc 7200, ic 7200, ci 7200, mosfet duplo canal N, dual mosfet n-Channel, Fairchild Semiconductor

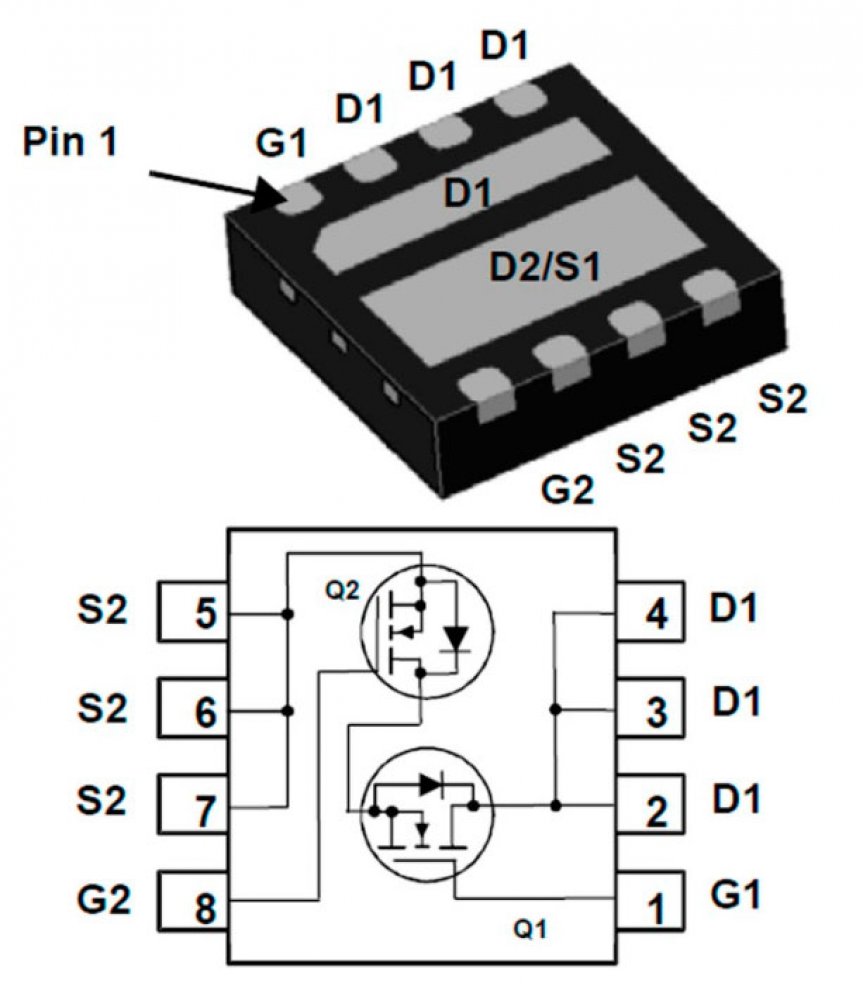

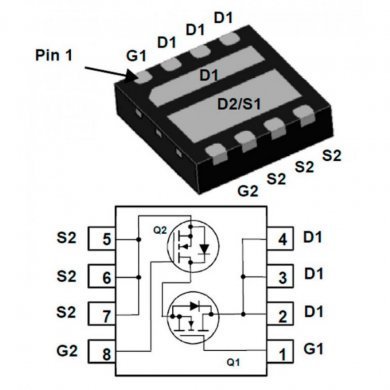

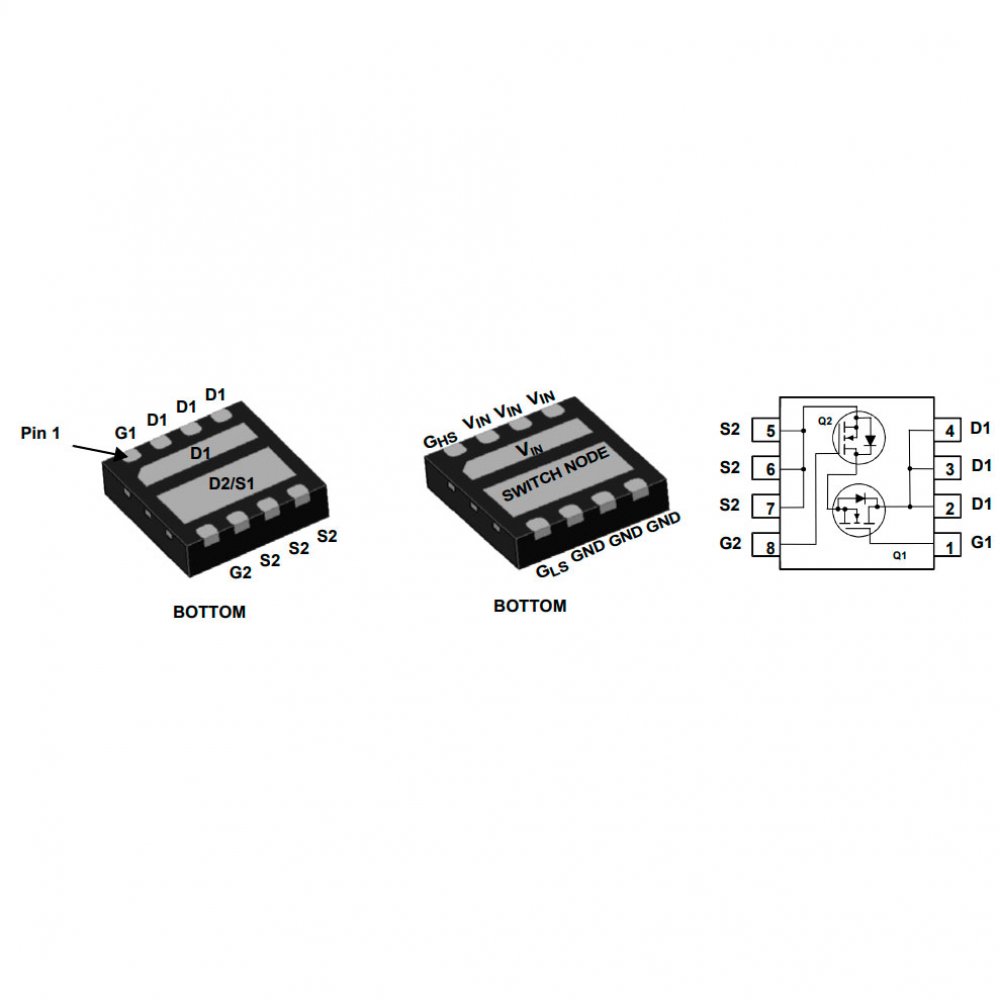

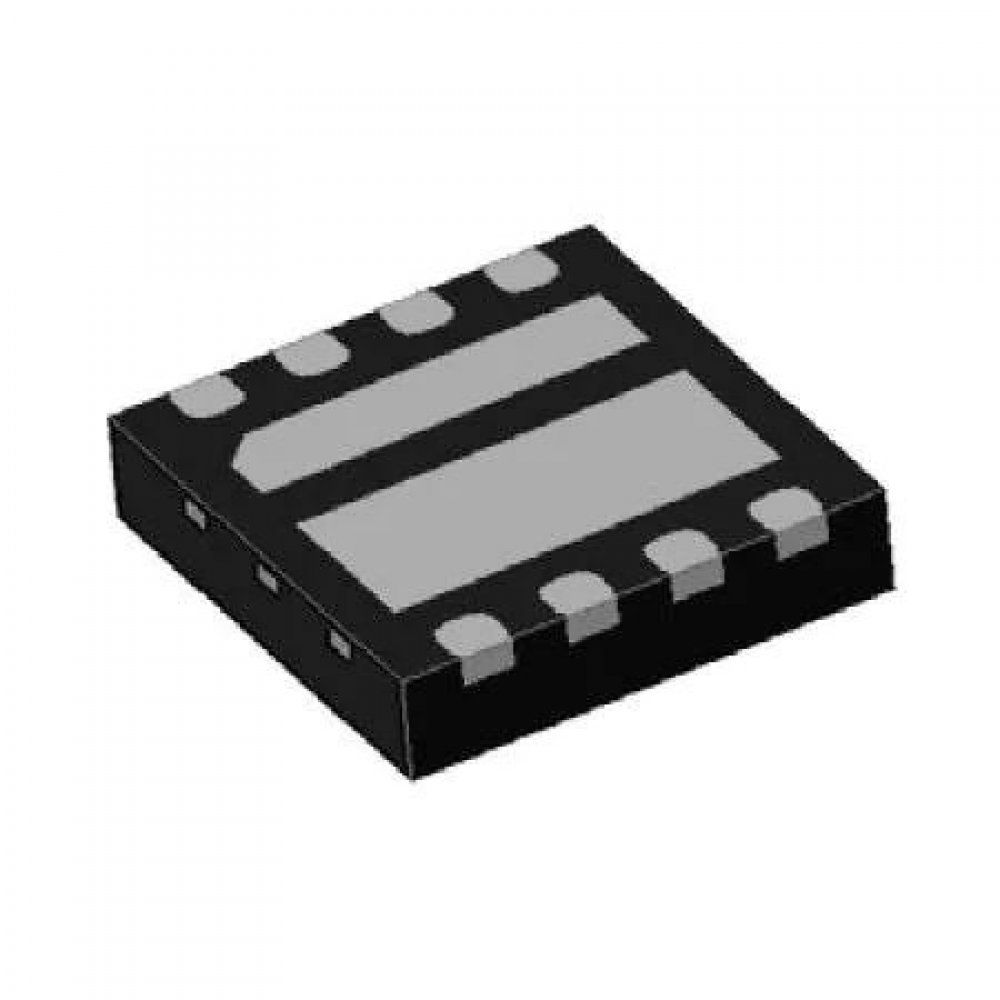

FDMC7200 MOSFET Dual N-Channel PowerTrench 30V 6/8A WDFN8 3x
Condição de FDMC7200:
Novo em embalagem comercial
Garantia de FDMC7200:
3 meses direto com a Net Computadores
| Manufacturer: | onsemi |
| Product Category: | MOSFET |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | Power-33-8 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 2 Channel |
| Vds - Drain-Source Breakdown Voltage: | 30 V |
| Id - Continuous Drain Current: | 6 A, 8 A |
| Rds On - Drain-Source Resistance: | 10 mOhms, 19 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 2.3 V |
| Qg - Gate Charge: | 3.1 nC, 7 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | 150 C |
| Pd - Power Dissipation: | 2.2 W |
| Channel Mode: | Enhancement |
| Tradename: | PowerTrench |
| Series: | FDMC7200 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | onsemi / Fairchild |
| Configuration: | Dual |
| Fall Time: | 1.3 ns, 6 ns |
| Forward Transconductance - Min: | 29 S, 56 S |
| Height: | 0.8 mm |
| Length: | 3 mm |
| Product Type: | MOSFET |
| Rise Time: | 3.1 ns, 4 ns |
Maiores detalhes de FDMC7200 no site do fabricante:
https://www.mouser.com/datasheet/2/149/FDMC7200-526738.pdf
Tags de FDMC7200: fdmc7200, fdmc 7200, ic 7200, ci 7200, mosfet duplo canal N, dual mosfet n-Channel, Fairchild Semiconductor
