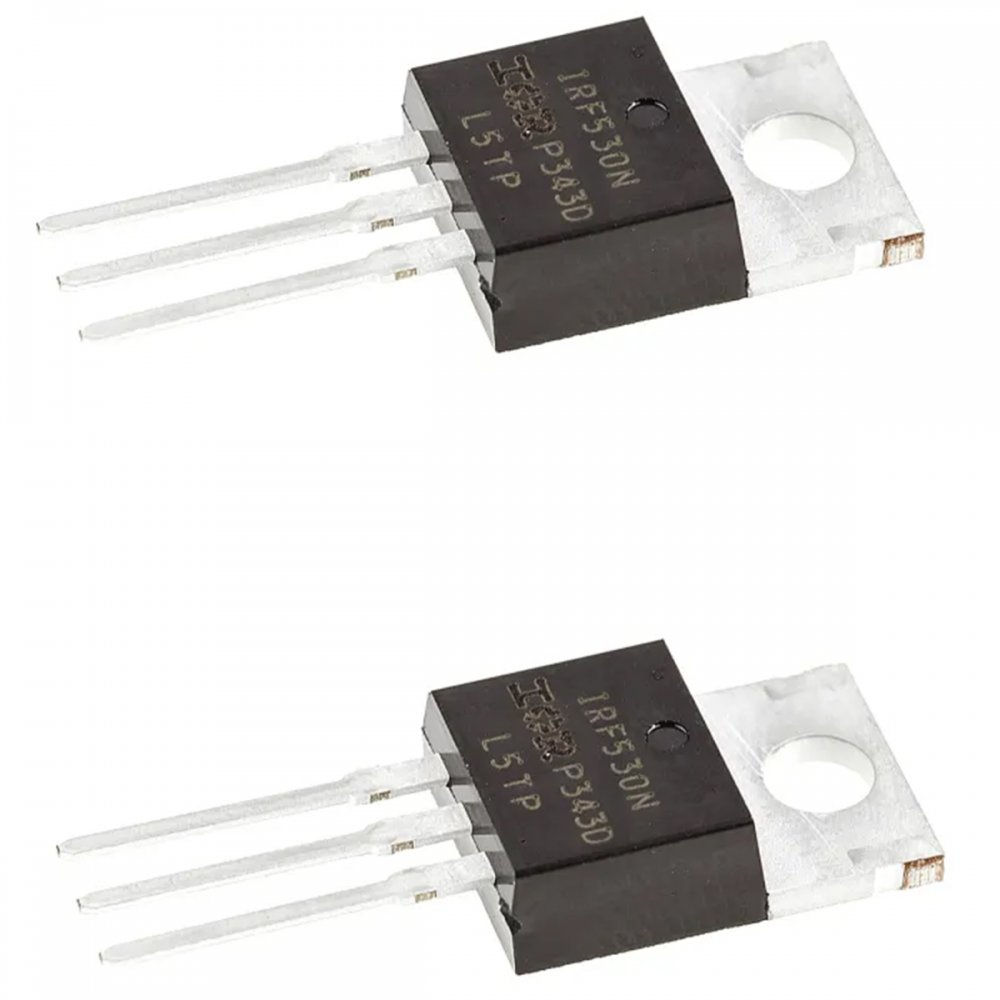

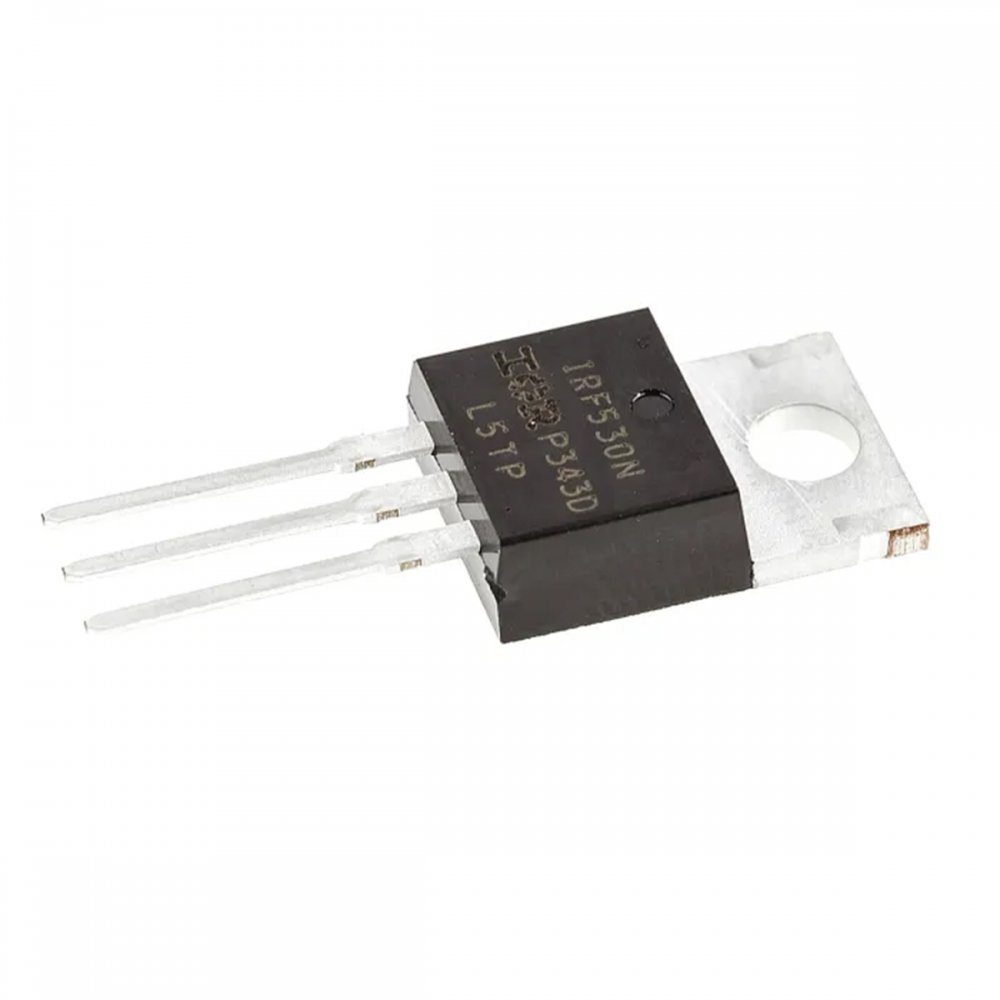

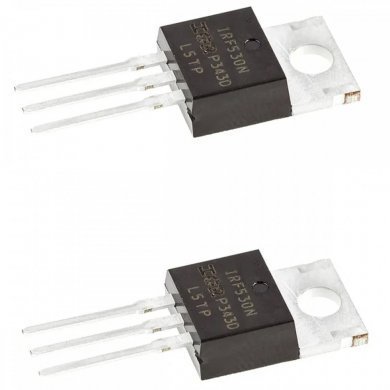

IRF530N Transistor Mosfet IRF530N Canal-N (Kit 2x unidades)

original IOR International Rectifier - 100V 17A TO220AB

IRF530N - IOR - International IOR Rectifier
IRF530N Transistor Mosfet IRF530N Canal-N (Kit 2x unidades)
*As imagens podem ser ilustrativas
Transistor Mosfet IRF530N Canal-N (Kit 2x unidades)Transistor Mosfet IRF530N Canal-N (Kit 2x unidades)Transistor Mosfet IRF530N Canal-N (Kit 2x unidades)

R$ 10,00

à vista no Pix ou Boleto

ou R$ 10,53 em 1x no cartão (via site)

ou R$ 11,11 no cartão em até 10x sem juros (apenas na loja física)

R$ 10,00

à vista no Pix ou Boleto

R$ 10,53
em 1x no cartão (via site)

R$ 11,11 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
30 meses direto com a Net Computadores

NCM:
85423190

R$ 10,00

à vista no pix

Condição:
novo em embalagem comercial

Garantia:
30 meses direto com a Net Computadores

NCM: 85423190

IRF530N Transistor Mosfet IRF530N Canal-N (Kit 2x unidades)
original IOR International Rectifier - 100V 17A TO220AB

Condição de IRF530N:    novo em embalagem comercial

Garantia  de  IRF530N:     30 meses direto com a Net Computadores



Manufacturer: IOR International Rectifier
Product Category: MOSFET
Technology:    Si
Mounting Style:    Through Hole
Package / Case:    TO-220-3
Transistor Polarity:    N-Channel
Number of Channels:    1 Channel
Vds - Drain-Source Breakdown Voltage:    100 V
Id - Continuous Drain Current:    17 A
Rds On - Drain-Source Resistance:    90 mOhms
Vgs - Gate-Source Voltage:    - 20 V, 20 V
Vgs th - Gate-Source Threshold Voltage:    4 V
Qg - Gate Charge:    24.7 nC
Minimum Operating Temperature:    - 55 C
Maximum Operating Temperature:     175 C
Pd - Power Dissipation:    79 W
Channel Mode:    Enhancement
Configuration:    Single
Height:    15.65 mm
Length:    10 mm
Product Type:    MOSFET

Tags de IRF530N: irf530N, irf530NPBF, IRF530, IRF 530, IRF530N, MOSFET MOSFT 100V 17A, IOR - International IOR Rectifier

IRF530N Transistor Mosfet IRF530N Canal-N (Kit 2x unidades) original IOR International Rectifier - 100V 17A TO220AB

Condição de IRF530N:
novo em embalagem comercial

Garantia  de  IRF530N:
30 meses direto com a Net Computadores


Manufacturer: IOR International Rectifier
Product Category: MOSFET
Technology:    Si
Mounting Style:    Through Hole
Package / Case:    TO-220-3
Transistor Polarity:    N-Channel
Number of Channels:    1 Channel
Vds - Drain-Source Breakdown Voltage:    100 V
Id - Continuous Drain Current:    17 A
Rds On - Drain-Source Resistance:    90 mOhms
Vgs - Gate-Source Voltage:    - 20 V, 20 V
Vgs th - Gate-Source Threshold Voltage:    4 V
Qg - Gate Charge:    24.7 nC
Minimum Operating Temperature:    - 55 C
Maximum Operating Temperature:     175 C
Pd - Power Dissipation:    79 W
Channel Mode:    Enhancement
Configuration:    Single
Height:    15.65 mm
Length:    10 mm
Product Type:    MOSFET

Tags de IRF530N: irf530N, irf530NPBF, IRF530, IRF 530, IRF530N, MOSFET MOSFT 100V 17A, IOR - International IOR Rectifier
