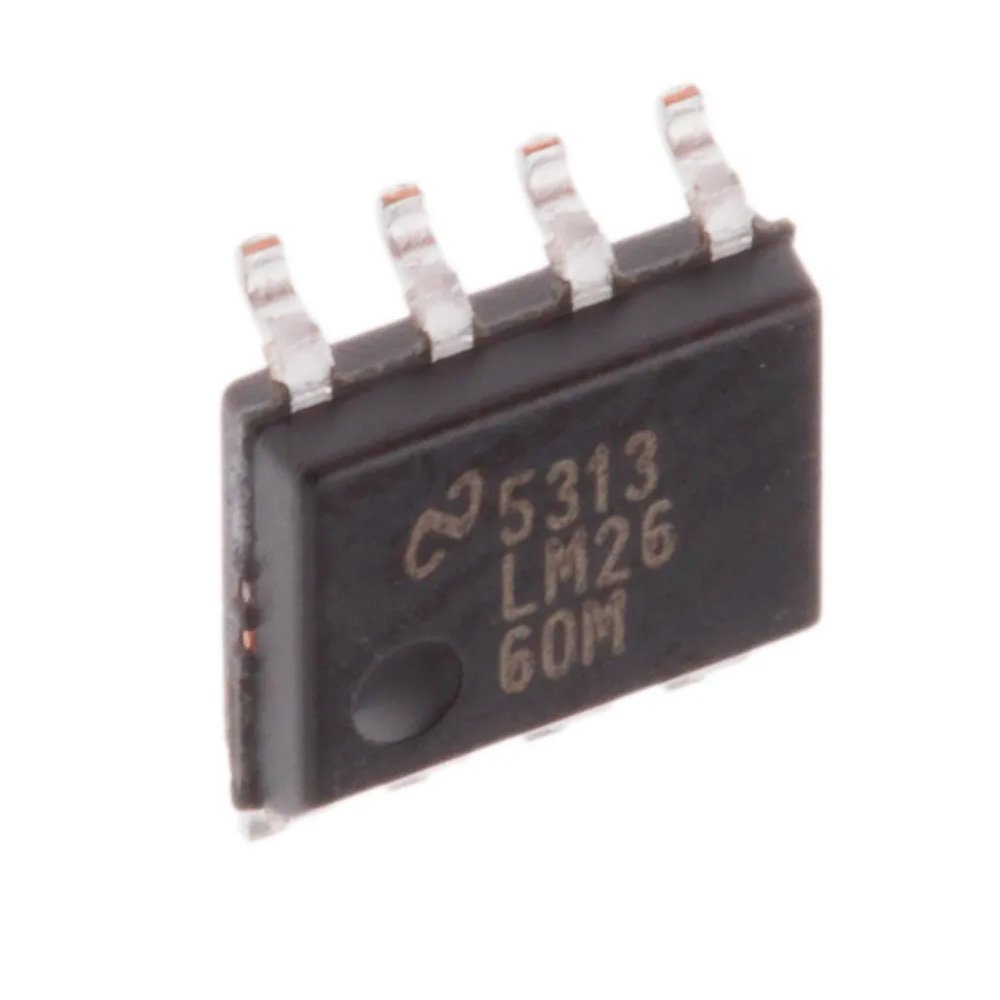

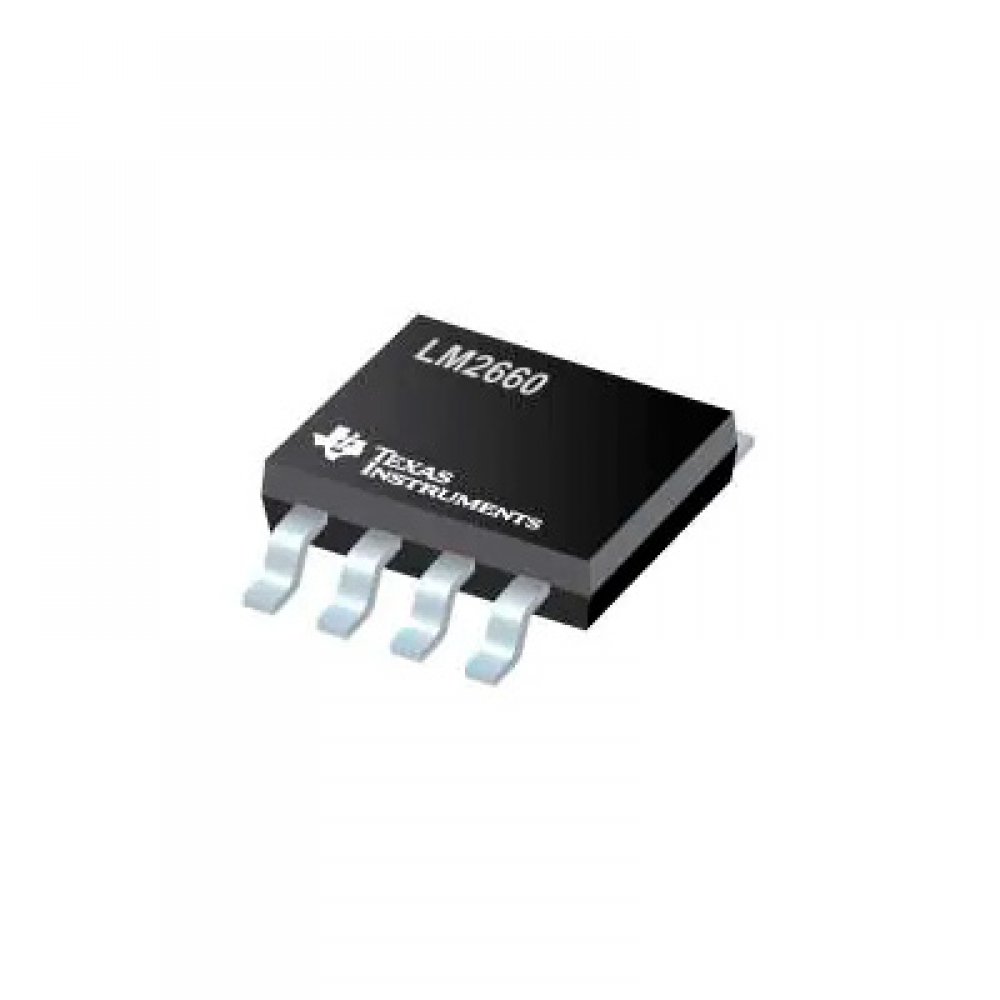

LM2660MX/NOPB Switching Voltage Regulators Switched SOIC-8

100mA switched capacitor voltage converter

LM2660MX/NOPB Switching Voltage Regulators Switched SOIC-8

*As imagens podem ser ilustrativas

Switching Voltage Regulators Switched SOIC-8

em estoque, envio imediato

R$ 3,43

à vista no Pix ou Boleto

ou R$ 3,61 em 1x no cartão (via site)

ou R$ 3,81 no cartão em até 10x sem juros (apenas na loja física)

R$ 3,43

à vista no Pix ou Boleto

R$ 3,61
em 1x no cartão (via site)

R$ 3,81 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 3,43

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar LM2660MX/NOPB

LM2660MX/NOPB Switching Voltage Regulators Switched SOIC-8
100mA switched capacitor voltage converter

Condição de LM2660MX/NOPB: Novo em embalagem comercial

Garantia de LM2660MX/NOPB: 3 meses direto com a Net Computadores

Features for the LM2660

Inverts or Doubles Input Supply Voltage
6.5-- Typical Output Resistance
88% Typical Conversion Efficiency at 100 mA
Selectable Oscillator Frequency: 10 kHz/80 kHz
Optional External Oscillator Input

The LM2660 CMOS charge-pump voltage converter is a versatile unregulated switched capacitor inverter or doubler. Operating from a wide 1.5-V to 5.5-V supply voltage, the LM2660 uses two low-cost capacitors to provide 100 mA of output current without the cost, size and EMI related to inductor-based converters. With an operating current of only 120 A and operating efficiency greater than 90% at most loads, the LM2660 provides ideal performance for battery-powered systems. LM2660 devices can be operated directly in parallel to lower output impedance, thus providing more current at a given voltage.

The FC (frequency control) pin selects between a nominal 10-kHz or 80-kHz oscillator frequency. The oscillator frequency can be lowered by adding an external capacitor to the OSC pin. Also, the OSC pin may be used to drive the LM2660 with an external clock up to 150 kHz. Through these methods, output ripple frequency and harmonics may be controlled.
Additionally, the LM2660 may be configured to divide a positive input voltage precisely in half. In this mode, input voltages as high as 11 V may be used.

Manufacturer:	Texas Instruments
Product Category:	Switching Voltage Regulators
RoHS:
Mounting Style:	SMD/SMT
Package / Case:	SOIC-8
Topology:	Boost, Buck, Inverting
Output Voltage:	- 1.5 V to - 5.5 V
Output Current:	100 mA
Number of Outputs:	1 Output
Input Voltage, Min:	1.5 V
Input Voltage, Max:	5.5 V
Switching Frequency:	10 kHz to 80 kHz
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Series:	LM2660
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Function:	Inverting, Step Up
Height:	1.45 mm
Input Voltage:	1.5 V to 5.5 V
Length:	4.9 mm
Operating Supply Current:	1 mA
Pd - Power Dissipation:	735 mW
Product Type:	Switching Voltage Regulators

Maiores detalhes de LM2660MX/NOPB no site do fabricante:
https://www.ti.com/lit/ds/symlink/lm2660.pdf?ts=1643232515318&ref_url=https%253A

Tags de LM2660MX/NOPB: LM2660MX/NOPB, LM2660MX, LM2660M, LM2660, 2660, M2660, Switched Capacitor Voltage Converter, CMOS charge-pump voltage converter, regulador de tensao, voltage inverter, inversor de voltagem, CMOS charge pump voltage converter, capacitor inversor, Texas Instruments

LM2660MX/NOPB Switching Voltage Regulators Switched SOIC-8 100mA switched capacitor voltage converter

Condição de LM2660MX/NOPB:
Novo em embalagem comercial

Garantia de LM2660MX/NOPB:
3 meses direto com a Net Computadores

Features for the LM2660

Inverts or Doubles Input Supply Voltage
6.5-- Typical Output Resistance
88% Typical Conversion Efficiency at 100 mA
Selectable Oscillator Frequency: 10 kHz/80 kHz
Optional External Oscillator Input

Manufacturer:	Texas Instruments
Product Category:	Switching Voltage Regulators
RoHS:
Mounting Style:	SMD/SMT
Package / Case:	SOIC-8
Topology:	Boost, Buck, Inverting
Output Voltage:	- 1.5 V to - 5.5 V
Output Current:	100 mA
Number of Outputs:	1 Output
Input Voltage, Min:	1.5 V
Input Voltage, Max:	5.5 V
Switching Frequency:	10 kHz to 80 kHz
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Series:	LM2660
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Function:	Inverting, Step Up
Height:	1.45 mm
Input Voltage:	1.5 V to 5.5 V
Length:	4.9 mm
Operating Supply Current:	1 mA
Pd - Power Dissipation:	735 mW
Product Type:	Switching Voltage Regulators
