LSI00200

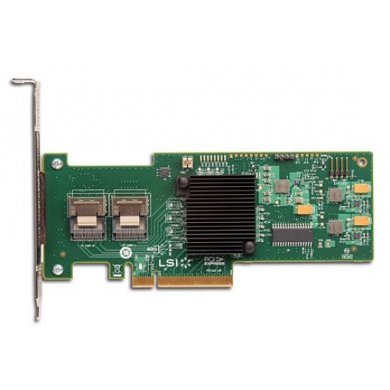

LSI Controladora MegaRAID 9240-8i

2x SFF-8087 Internos, 8 Portas 6GB/s SATA/SAS PCI-E 2.0 x8, High and Low Profile

LSI00200 LSI Controladora MegaRAID 9240-8i

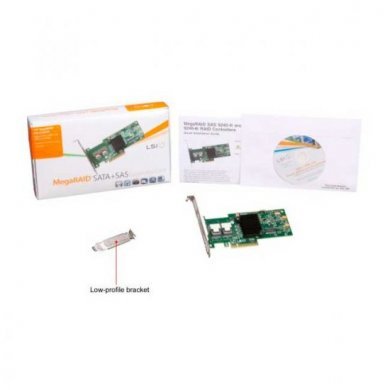

*Imagens ilustrativas

LSI00200

LSI Controladora MegaRAID 9240-8i

2x SFF-8087 Internos, 8 Portas 6GB/s SATA/SAS PCI-E 2.0 x8, High and Low Profile

Condição:

novo em embalagem antiestática

Garantia:

6 meses direto com a Net Computadores

NCM:

84733049

envio de 20 a 40 dias uteis

Site
Loja Física

R$ 446,50

À vista já com 5% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou no cartão de crédito por R$ 470,00

Condição exclusiva para o site. Parcelas serão exibidas na tela de pagamento.

R$ 446,50

À vista já com 10% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou R$ 496,11 no cartão de crédito em até 10x sem juros

Condição exclusiva para compras presenciais na loja física.

Preço e prazo desatualizados, solicite revisão antes de comprar

Adicionar ao carrinho

Comprar agora

Preço e prazo desatualizados, solicite revisão antes de comprar

R$ 446,50

à vista no pix

Comprar

Condição: novo em embalagem antiestática

Garantia: 6 meses direto com a Net Computadores

NCM: 84733049

cotar mais de 1 peça de LSI00200
indicar a um amigo LSI00200

Net Computadores

desde 1998, atua como revenda de equipamentos para informática com foco em hardware para TI empresarial.

saiba mais

LSI00200 LSI Controladora MegaRAID 9240-8i

Condição de LSI00200: novo em embalagem antiestática

Description:
The eight-port MegaRAID SAS 9240-8i, supports data transfer rates of up to 6Gb/s per port, brings new features and improved performance to entry-level server applications using up to 64 SATA or SAS devices.
Eight internal SATA SAS ports
Two x4 mini-SAS internal connectors (SFF8087)
Low-profile form factor
Benefits
Support for SAS and SATA drives
Support for HDDs and SSDs
Built on proven MegaRAID stack
Migration path to full-featured MegaRAID SAS solutions
Cost-effective RAID implementation
Advanced RAID management suite
Environmentally friendly with a low-power controller and cardboard packaging
Solution Provided
Low-cost, green SATA SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives
Connector
Internal
Two X4 Mini-SAS SFF8087 (vertical orientation)
Max Number of Physical
Devices Non-RAID:Non-Raid: 64
RAID 0: 16 per volume
RAID 1: 2 per volume plus hotspare
RAID 5: 16 per volume
RAID 10: 16 per volume
RAID 50: 16 per volume
Host Bus Type 8-lane, 5 GT/s PCI Express 2.0 Compliant
Data Transfer Rates Up to 6Gb/s per port
SAS Controller LSISAS2008
Key RAID Data Protection Features
RAID levels 0, 1, 5, 10, 50 and JBOD mode
Selectable logical drive as boot drive
Consistency Check
Fast initialization for quick array setup
Native Command Queuing
Staggered spin up for SATA drives
Hot plug support
Global hot spare support
Online RAID Level Migration (RLM)
Single controller Multipathing
I/O Load balancing
SSD support with SSD GuardAutomatic rebuild of hot spare drives
Auto resume during array rebuild
Fault LED support through SGPIO
>2TB logical drive support
Soft bad block management
Error recovery support
DDF compliant Configuration on Disk
S.M.A.R.T. support
Patrol read for media scanning and repairing
Enclosure management
- SES (inband)
- SGPIO (sideband)
RAID Management
MegaRAID Management Suite
MegaRAID Storage Manager-
MegaCLI (command-line interface)
WebBIOS
Environments
Operating
0°C to 70°C
5 to 90% Non-condensing
Storage
-45°C to 105°C
5 to 90% Non-condensing
PCI Card Type 3.3V Add-in Card
PCI Voltage 12V ±10%
PCI Power 13.5W
PCI Modes Bus Master DMA
LED Indicators -Internal Activity/Fault per x4 port - Heartbeat
MTFB >2,000,000 Hours
Compliances EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
OS Support Microsoft® Windows®, Linux® (SuSE®, Red Hat®), Solaris®, Vmware®. See www.lsi.com/support for details on versions.
Brackets Full Height and Low-Profile
Package Includes
