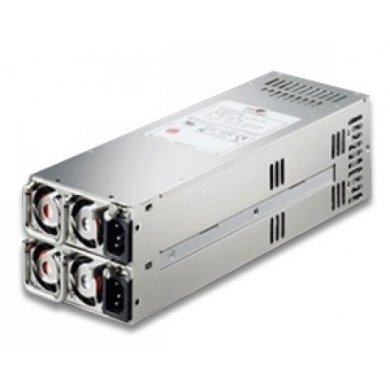

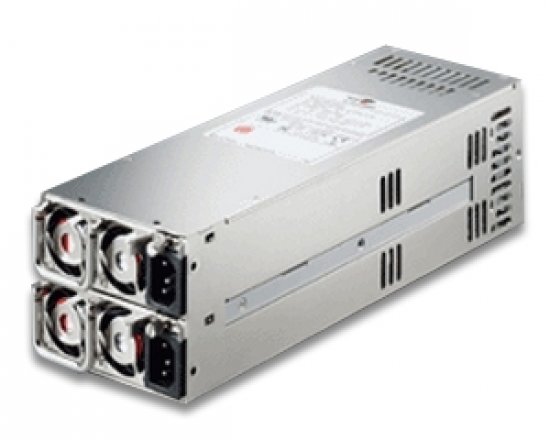

M2W-6500P Zippy Fonte Redundante 2U 500W EPS 12V 8 Pin

(Cage + 2x 500W)

M2W-6500P - Zippy
M2W-6500P Zippy Fonte Redundante 2U 500W EPS 12V 8 Pin
*As imagens podem ser ilustrativas
Zippy Fonte Redundante 2U 500W EPS 12V 8 PinZippy Fonte Redundante 2U 500W EPS 12V 8 Pin

R$ 4.685,00

à vista no Pix ou Boleto

ou R$ 4.931,41 em 1x no cartão (via site)

ou R$ 5.205,37 no cartão em até 10x sem juros (apenas na loja física)

R$ 4.685,00

à vista no Pix ou Boleto

R$ 4.931,41
em 1x no cartão (via site)

R$ 5.205,37 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
84733011

R$ 4.685,00

à vista no pix

Condição:
Seminovo testado e pronto para uso!

Garantia:
12 meses direto com a Net Computadores

NCM: 84733011

M2W-6500P Zippy Fonte Redundante 2U 500W EPS 12V 8 Pin
(Cage + 2x 500W)

Condição de M2W-6500P:    Seminovo testado e pronto para uso!

Garantia  de  M2W-6500P:     12 meses direto com a Net Computadores



Dimension: (WxDxH)
101 x 84 x 300 mm
3.98 x 3.31 x 11.81 inch
3-31/32 x 3-5/16 x 11-13/16 inch

Connectors:
1x 24-pin Main Connector
1x 8-pin EPS 12V
1x 4-pin P4 12V
1x 6-pin AUX
13x 4-pin Peripheral / IDE Power
3x 4-pin Floppy Power
1x 2-pin 3.68mm Buzzer Reset
1x 2-pin 2.54mm TTL Signal
1x LED

Features:
Active PFC (full range), meet IEC-1000-3-2 Class D
12V Max. Current: 32A
Temperature Range:
Operating 0°C ~ 40°C
Storage: -20°C ~ 70°C

Humidity:
Operating: 20%-95%
Non-Operating: 10%-95%

Remarks: 85% is normal condition and 95% is with special coating process.
Dual EMI Noise Inlet Filter: FCC Class B, CISPR22 Class B
Safety: UL 1950, CSA 22.2 No/ 950, TUV IEC 950
Hot-Swappable / Hot-Pluggable Redundancy Function
Hold Up Time: 16ms minimum at full load & 90VAC input voltage
Use 48-pin industrial connectors

Cooling: 2x 38x38x28 mm DC Fans (Module)
AC Inlet in each module
Serial ATA optional

Specification:
Output Wattage: 500W
ATX 2.03, ATX12V(P4), EPS12V, WTX, AMD-GES

Best Solution for: Server, Workstation, Storage System, IPC

Dimension: (WxDxH)
101 x 84 x 300 mm
3.98 x 3.31 x 11.81 inch
3-31/32 x 3-5/16 x 11-13/16 inch
Voltage: 105~264 VAC Full Range

Output Characteristics:
Output
Voltage Min. Output
Current Max. Output
Current Peak Output
Current Regulation
Load Regulation
Line Output Ripple &
Noise Max. [P-P]
+5V 2.0 30.00 --- ±5% ±1% 50mV
+12V 2.0 32 --- ±5% ±1% 120mV
-5V 0.05 0.7 --- +5% ~ -10% ±1% 120mV
-12V 0.05 0.7 --- +5% ~ -10% ±1% 120mV
3.3V 1 24 --- ±5% ±1% 50mV
+5VSB 0.1 2 --- +6% ~ -5% ±1% 50mV

Remarks:
> Total Current of +5V and +3.3V not exceed 43A
> Total Output Power not exceed 500W

* The power supply is for chassis assembly only and is not allowed to be operated as stand-alone component. Final assembly has to comply with corresponding EMC and safety regulations.

Maiores detalhes de M2W-6500P no site do fabricante:
http://www.zippy.com.tw/pw/showdetail.aspx?pp_rfnbr=1395


Tags de M2W-6500P: M2W-6500P, M2W6500P, M2W 6500P, B001380002, PS-R2U-ZP-M2W-6500P, Fonte 2U, Fonte 2U Redundante, Fonte para Gabinete 2U, Fonte Chassis 2U, Fonte Gabinete 2U, Zippy, usado, seminovo, Zippy

M2W-6500P Zippy Fonte Redundante 2U 500W EPS 12V 8 Pin (Cage + 2x 500W)

Condição de M2W-6500P:
Seminovo testado e pronto para uso!

Garantia  de  M2W-6500P:
12 meses direto com a Net Computadores


Dimension: (WxDxH)
101 x 84 x 300 mm
3.98 x 3.31 x 11.81 inch
3-31/32 x 3-5/16 x 11-13/16 inch

Connectors:
1x 24-pin Main Connector
1x 8-pin EPS 12V
1x 4-pin P4 12V
1x 6-pin AUX
13x 4-pin Peripheral / IDE Power
3x 4-pin Floppy Power
1x 2-pin 3.68mm Buzzer Reset
1x 2-pin 2.54mm TTL Signal
1x LED

Features:
Active PFC (full range), meet IEC-1000-3-2 Class D
12V Max. Current: 32A
Temperature Range:
Operating 0°C ~ 40°C
Storage: -20°C ~ 70°C

Humidity:
Operating: 20%-95%
Non-Operating: 10%-95%

Remarks: 85% is normal condition and 95% is with special coating process.
Dual EMI Noise Inlet Filter: FCC Class B, CISPR22 Class B
Safety: UL 1950, CSA 22.2 No/ 950, TUV IEC 950
Hot-Swappable / Hot-Pluggable Redundancy Function
Hold Up Time: 16ms minimum at full load & 90VAC input voltage
Use 48-pin industrial connectors

Cooling: 2x 38x38x28 mm DC Fans (Module)
AC Inlet in each module
Serial ATA optional

Specification:
Output Wattage: 500W
ATX 2.03, ATX12V(P4), EPS12V, WTX, AMD-GES

Best Solution for: Server, Workstation, Storage System, IPC

Dimension: (WxDxH)
101 x 84 x 300 mm
3.98 x 3.31 x 11.81 inch
3-31/32 x 3-5/16 x 11-13/16 inch
Voltage: 105~264 VAC Full Range

Output Characteristics:
Output
Voltage Min. Output
Current Max. Output
Current Peak Output
Current Regulation
Load Regulation
Line Output Ripple &
Noise Max. [P-P]
+5V 2.0 30.00 --- ±5% ±1% 50mV
+12V 2.0 32 --- ±5% ±1% 120mV
-5V 0.05 0.7 --- +5% ~ -10% ±1% 120mV
-12V 0.05 0.7 --- +5% ~ -10% ±1% 120mV
3.3V 1 24 --- ±5% ±1% 50mV
+5VSB 0.1 2 --- +6% ~ -5% ±1% 50mV

Remarks:
> Total Current of +5V and +3.3V not exceed 43A
> Total Output Power not exceed 500W

* The power supply is for chassis assembly only and is not allowed to be operated as stand-alone component. Final assembly has to comply with corresponding EMC and safety regulations.

Maiores detalhes de M2W-6500P no site do fabricante:
http://www.zippy.com.tw/pw/showdetail.aspx?pp_rfnbr=1395


Tags de M2W-6500P: M2W-6500P, M2W6500P, M2W 6500P, B001380002, PS-R2U-ZP-M2W-6500P, Fonte 2U, Fonte 2U Redundante, Fonte para Gabinete 2U, Fonte Chassis 2U, Fonte Gabinete 2U, Zippy, usado, seminovo, Zippy
