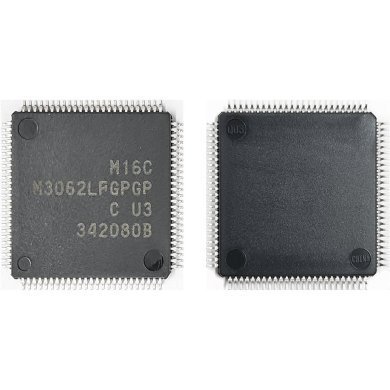

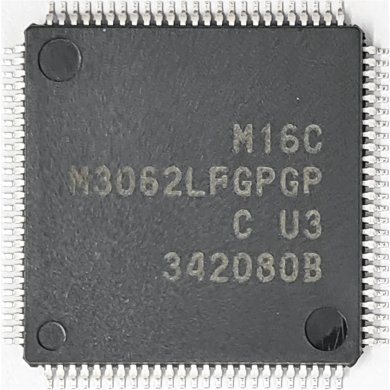

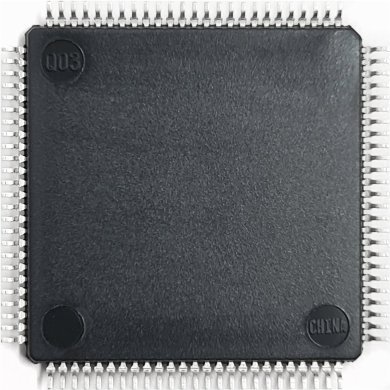

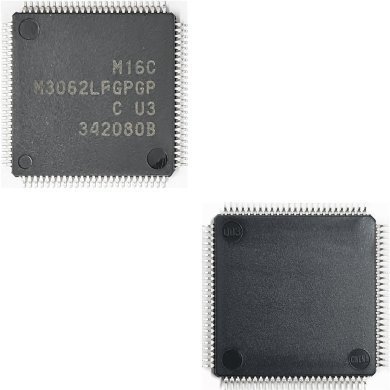

M3062LFGPGP Microcontrolador 20MHz 256KB 3/5V 100-LFQFP

Name: M3062LFGPGP Microcontrolador 20MHz 256KB 3/5V 100-LFQFP
Brand: Renesas
SKU: M3062LFGPGP
Price: 170.00 BRL
Availability: InStock

Single Chip 16BIT CMOS Microcomputer (M16CM30624FGPGPC#U3C)

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 170,00

à vista no Pix ou Boleto

ou R$ 177,98 em 1x no cartão (via site)

ou R$ 187,87 no cartão em até 10x sem juros (apenas na loja física)

R$ 170,00

à vista no Pix ou Boleto

R$ 177,98
em 1x no cartão (via site)

R$ 187,87 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 170,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre

Cotação PJ mais de uma unidade

Indicar M3062LFGPGP

M3062LFGPGP Microcontrolador 20MHz 256KB 3/5V 100-LFQFP
Single Chip 16BIT CMOS Microcomputer (M16CM30624FGPGPC#U3C)

Condição de M3062LFGPGP: Novo em embalagem comercial

Garantia de M3062LFGPGP: 3 meses direto com a Net Computadores

Outros PNs para este item: M16CM30624FGPGPC,

MCU 16-bit/32-bit M16C CISC 256KB Flash 3.3V/5V 100-Pin PQFP The M16C/62P Group of single-chip microcomputers are built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 80-pin, 100-pin and 128-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires high speed arithmetic/logic operations. Flash memory version.
Key Features

16-bit Multi Timer (Timer A and B, incl. 3-phase inverter motorcontrol ): 11 channels
UART/Clock Synchronous Serial Interface: 3 channels
Clock Synchronous Serial Interface: 2 channels
10-bit A/D Converter: 26 channels
8-bit D/A Converter: 2
DMAC: 2 channels
CRC Calculation Circuit
Watchdog Timer
Clock Generation Circuits: Main Clock Generation Circuit, Sub Clock Generation Circuit, On-chip Oscillator, PLL Synthesizer
Oscillation Stop Detection Function
Voltage Detection Circuit (Option)
I/O Ports: 113
External Interrupt Pins: 11
Data Flash: 4KB
ROM Capacity: 256 Kbytes

Description	Value
Data Bus Width	16\|32 Bit
Instruction Set Architecture	CISC
Interface Type	UART
Lead Finish	Tin-Copper
Max Processing Temp	260
Maximum Expanded Memory Size	1 MB
Maximum Operating Supply Voltage	5.5 V
Maximum Power Dissipation	300 mW
Maximum Speed	24 MHz
Minimum Operating Supply Voltage	3 V
Mounting	Surface Mount
Number of Programmable I/Os	87
Number of Timers	11
On-Chip ADC	26-chx10-bit
On-Chip DAC	2-chx8-bit
Operating Supply Voltage	3.3, 5 V
Operating Temperature	-40 to 85 °C
Pin Count	100
Product Dimensions	20 x 14 x 2.8 mm
Program Memory Size	256 KB
RAM Size	20 KB
Supplier Package	PQFP
Watchdog	1

Tags de M3062LFGPGP: M16CM30624FGPGPC, M3062LFGPGP, M3062LFGPGP-U3C, M3062LFGPGP-U5C, M16C/60, 16-bit Microcontrollers - MCU, M16C M16C/60/62P, M3062, M3062L, M3062LF, 3062LFGPGPU3C, QSK-62P PLUS, QUICK START KIT M16C/62P EVAL BD, M16C, SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER, MCU 16Bit, MCU 16bits, M3062LFGPGP#U7C, M3062LFGPFP#U5C, M3062LFGPGP#U9C, microcontrolador 16Bit, MCU com Watchdog, Renesas

M3062LFGPGP Microcontrolador 20MHz 256KB 3/5V 100-LFQFP Single Chip 16BIT CMOS Microcomputer (M16CM30624FGPGPC#U3C)

Condição de M3062LFGPGP:
Novo em embalagem comercial

Garantia de M3062LFGPGP:
3 meses direto com a Net Computadores

Outros PNs para este componente: M16CM30624FGPGPC,

MCU 16-bit/32-bit M16C CISC 256KB Flash 3.3V/5V 100-Pin PQFP

The M16C/62P Group of single-chip microcomputers are built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 80-pin, 100-pin and 128-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires high speed arithmetic/logic operations. Flash memory version.
Key Features

16-bit Multi Timer (Timer A and B, incl. 3-phase inverter motorcontrol ): 11 channels
UART/Clock Synchronous Serial Interface: 3 channels
Clock Synchronous Serial Interface: 2 channels
10-bit A/D Converter: 26 channels
8-bit D/A Converter: 2
DMAC: 2 channels
CRC Calculation Circuit
Watchdog Timer
Clock Generation Circuits: Main Clock Generation Circuit, Sub Clock Generation Circuit, On-chip Oscillator, PLL Synthesizer
Oscillation Stop Detection Function
Voltage Detection Circuit (Option)
I/O Ports: 113
External Interrupt Pins: 11
Data Flash: 4KB
ROM Capacity: 256 Kbytes

Description	Value
Data Bus Width	16\|32 Bit
Instruction Set Architecture	CISC
Interface Type	UART
Lead Finish	Tin-Copper
Max Processing Temp	260
Maximum Expanded Memory Size	1 MB
Maximum Operating Supply Voltage	5.5 V
Maximum Power Dissipation	300 mW
Maximum Speed	24 MHz
Minimum Operating Supply Voltage	3 V
Mounting	Surface Mount
Number of Programmable I/Os	87
Number of Timers	11
On-Chip ADC	26-chx10-bit
On-Chip DAC	2-chx8-bit
Operating Supply Voltage	3.3, 5 V
Operating Temperature	-40 to 85 °C
Pin Count	100
Product Dimensions	20 x 14 x 2.8 mm
Program Memory Size	256 KB
RAM Size	20 KB
Supplier Package	PQFP
Watchdog	1
