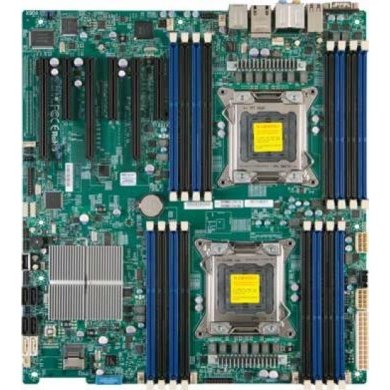

MBD-X9DAI-O Server Board Supermicro Workstation Xeon
Condição de MBD-X9DAI-O: seminovo testado, em perfeito funcionamento
| General | |
| Product Type | Motherboard Extended ATX |
| Package Type | Brown Box |
| Form Factor | EATX |
| Dimensions | 12 x 13 (30.5cm x 33.2cm) |
| Processor/Cache | |
| CPU | Intel Xeon processor E52600 (up to 150W TDP) Dual Socket R (LGA 2011) |
| Cache | Up to 20MB |
| System Bus | QPI up to 8 GT/s |
| System Memory | |
| Memory Capacity | 16x 240pin DDR3 DIMM sockets Supports up to 512 GB DDR3 ECC Registered memory (RDIMM) Supports up to 128 GB DDR3 ECC/nonECC UnBuffered memory (UDIMM) |
| Memory Type | 1600/1333/1066/800MHz ECC DDR3 SDRAM 72bit, 240pin goldplated DIMMs Support ECC and nonECC UDIMMs |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5 V, 1.35 V |
| Error Detection | Corrects singlebit errors Detects doublebit errors (using ECC memory) |
| OnBoard Devices | |
| Chipset | Intel C602 chipset |
| SATA | SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
| Network Controllers | Intel i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASET, 100BASETX, and 1000BASET, RJ45 outpu |
| Audio | RealTek ALC889 7.1 High Definition Audio with S/PDIF header |
| Input / Output | |
| SATA | 2x SATA 3.0 ports (6Gbps) 8x SATA 2.0 ports (3Gbps |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| USB | 4x USB 3.0 ports (2 rear 2 via header) 7x USB 2.0 ports (4 rear 2 via header 1 Type A) |
| Audio | 7.1 HD Audio with optical S/PDIF |
| Keyboard/Mouse | PS/2 Keyboard Combo port |
| Serial Port / Header | 1x Fast UART 16550 ports |
| IEEE 1394a | 2x Headers |
| DOM | 1 DOM (Disk on Module) power connector |
| Chassis ( Optimized for X9DAi ) | |
| 3U Chassis | CSE732D4F903B |
| Tower / 4U Rackmount | CSE743TQ1200BSQ |
| Important Chassis Notes | To support the new generation Intel Xeon processorbased motherboards, Revision M chassis is recommended. Please talk to your sales representative for details. |
| Expansion Slots | |
| PCIExpress | 3x PCIE 3.0 x16 slots 2x PCIE 3.0 x8 slots 1x PCIE 3.0 x4 (in x8) slot (Both CPUs need to be installed for full access to PCIE slots. See manual for details.) |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS> |
| BIOS Features | Plug and Play (PnP),APM 1.2,DMI 2.3,PCI 2.3,ACPI 1.0 / 2.0 / 3.0 / 4.0,USB Keyboard support,SMBIOS 2.7.1,UEFI |
| Management | |
| Software | SuperDoctor III,Watch Dog,NMI |
| Power Configurations | ACPI / APM Power Management Main Switch Override Mechanism CPU Fan autooff in mode Poweron mode for AC power recovery Suspend to RAM (STR) |
| PC Health Monitoring | |
| Voltage | Monitors for CPU Cores, 1.1V, 1.5V, 3.3V, 5V, 12V, 3.3V Standby, 5V Standby, VBAT, Memory Voltages. 6 1 Phaseswitching voltage regulator |
| FAN | 8x 4pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI |
| LED | CPU / System Overheat LED |
| Other Features | Chassis intrusion detection Chassis intrusion header SDDC Support RoHS |
MBD-X9DAI-O Server Board Supermicro Workstation Xeon
Maiores detalhes de MBD-X9DAI-O no site do fabricante:
http://www.supermicro.com/products/motherboard/xeon/c600/x9dai.cfm
Condição de MBD-X9DAI-O: seminovo testado, em perfeito funcionamento
Tags de MBD-X9DAI-O: MBD-X9DAI-O, MBD-X9DAi -O, E5-2600, LGA-2011, Supermicro, Motherboard Supermicro, Supermicro LGA 2011, Workstation Supermicro, placa mãe supermicro lga 2011, X9DAI-O, Motherboard Server, SUPERMICRO
