Componentes Eletrônicos / Semicondutores / MCP23008T-E/SS

MCP23008T-E/SS

IC 8-Bit I2C I/O Expander Serial Interface SSOP-20

8-Bit I2C I/O Expander with Serial Interface

MCP23008T-E/SS - Microchip
MCP23008T-E/SS IC 8-Bit I2C I/O Expander Serial Interface SSOP-20
IC 8-Bit I2C I/O Expander Serial Interface SSOP-20IC 8-Bit I2C I/O Expander Serial Interface SSOP-20IC 8-Bit I2C I/O Expander Serial Interface SSOP-20IC 8-Bit I2C I/O Expander Serial Interface SSOP-20
*Imagens ilustrativas

MCP23008T-E/SS

IC 8-Bit I2C I/O Expander Serial Interface SSOP-20

8-Bit I2C I/O Expander with Serial Interface

Garantia:
3 meses direto com a Net Computadores

NCM:
85423190

em estoque, envio imediato

R$ 18,50

À vista já com 5% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou no cartão de crédito por R$ 19,47

Condição exclusiva para o site. Parcelas serão exibidas na tela de pagamento.

R$ 18,50

À vista já com 10% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou R$ 20,56 no cartão de crédito em até 10x sem juros

Condição exclusiva para compras presenciais na loja física.

R$ 18,50

à vista no pix

Condição: novo em embalagem comercial

Garantia: 3 meses direto com a Net Computadores

NCM: 85423190


MCP23008T-E/SS IC 8-Bit I2C I/O Expander Serial Interface SSOP-20

Condição de MCP23008T-E/SS: novo em embalagem comercial

The MCP23X08 device provides 8-bit, general purpose, parallel I/O expansion for I2C bus or SPI applications. The two devices differ in the number of hardware address pins and the serial interface:
- MCP23008 - I2C interface; three address pins

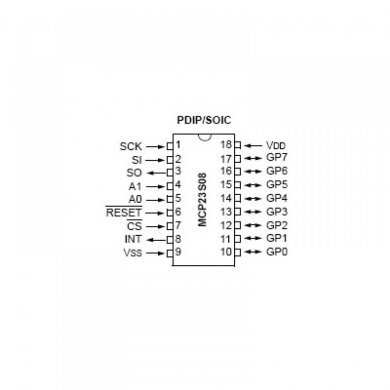

- MCP23S08 - SPI interface; two address pins

The MCP23X08 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits. The data for each input or output is kept in the corresponding Input or Output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.

  • 8-bit port expander with interrupt output
  • 3 address inputs for up to 8 devices on one bus
  • 25mA sink/source capability per I/O
  • Supports 100kHz, 400kHz and 1.7MHz I2C-Compatible modes
  • Internal power-on-reset (POR)

MCP23008T-E/SS IC 8-Bit I2C I/O Expander Serial Interface SSOP-20


Maiores detalhes de MCP23008T-E/SS no site do fabricante:
https://ww1.microchip.com/downloads/en/DeviceDoc/MCP23008-MCP23S08-Data-Sheet-20



Condição de MCP23008T-E/SS: novo em embalagem comercial

Tags de MCP23008T-E/SS: MCP23008T-E/SS, MCP23008T, MCP23008, MCP23008T-E, 23008, Interface - I/O Expanders In/Out I2C int, Interface I/O Expanders, Interface I/O Expander, expansor de porta i/o, expansor para porta i/o, io expander port, parallel I/O expansion for I2C bus or SPI applications, porta i2C, porta SPI, Mcp23x08, arduino expansão de porta, exapansão de porta logica, logic expander port, como aumentar portas do arduino, como expandir portas do arduino, multiplicador de porta logica para arduino, Microchip
