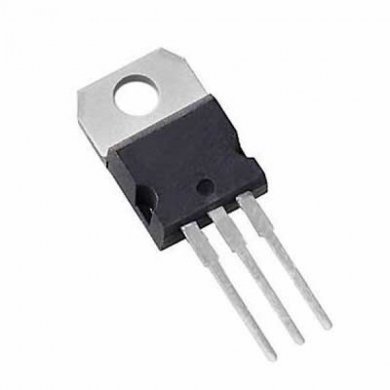

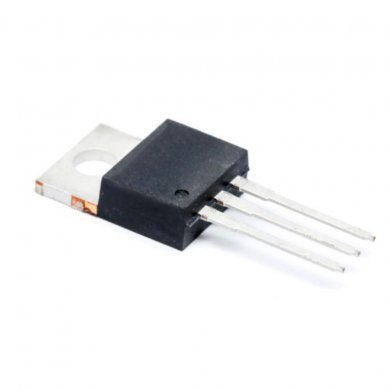

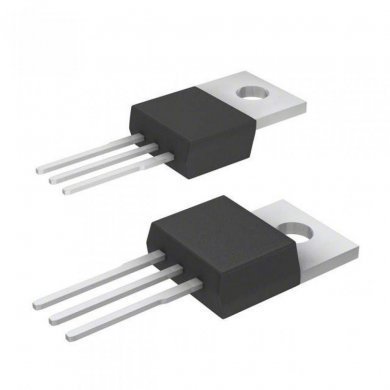

MCR8SM SCRs 600V 8A

Name: MCR8SM SCRs 600V 8A
Brand: ON Semiconductor
SKU: MCR8SM
Price: 13.00 BRL
Availability: InStock

Sensitive Gate Silicon Controlled Rectifiers Reverse Blocking Thyristors

MCR8SM SCRs 600V 8A

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 13,00

à vista no Pix ou Boleto

ou R$ 13,16 em 1x no cartão (via site)

ou R$ 13,89 no cartão em até 10x sem juros (apenas na loja física)

R$ 13,00

à vista no Pix ou Boleto

R$ 13,16
em 1x no cartão (via site)

R$ 13,89 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 13,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar MCR8SM

MCR8SM SCRs 600V 8A
Sensitive Gate Silicon Controlled Rectifiers Reverse Blocking Thyristors

Condição de MCR8SM: Novo em embalagem comercial

Garantia de MCR8SM: 3 meses direto com a Net Computadores

Designed primarily for half-wave ac control applications, such as motor controls, heating controls, and power supplies; or wherever half-wave, silicon gate-controlled devices are needed.

Manufacturer:	onsemi
Product Category:	SCRs
RoHS:	N
Breakover Current IBO Max:	80 A
Rated Repetitive Off-State Voltage VDRM:	600 V
Off-State Leakage Current @ VDRM IDRM:	10 uA
Vf - Forward Voltage:	1.8 V
Gate Trigger Voltage - Vgt:	1 V
Gate Trigger Current - Igt:	0.2 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	110 C
Mounting Style:	Through Hole
Package / Case:	TO-220-3
Packaging:	Tube
Brand:	onsemi
Height:	9.28 mm
Holding Current Ih Max:	6 mA
Length:	10.28 mm
Non Repetitive On-State Current:	80 A
Product Type:	SCRs

Maiores detalhes de MCR8SM no site do fabricante:
https://www.mouser.co.cr/datasheet/2/308/mcr8s-d-1193492.pdf

Vídeo de MCR8SM SCRs 600V 8A

Tags de MCR8SM: MCR8SM, MCR8SD, MCR8SN, Tic106d, TIC106F, TIC 8A, TIC 10A, SCR 8A, Thyristors, ON Semiconductor

MCR8SM SCRs 600V 8A Sensitive Gate Silicon Controlled Rectifiers Reverse Blocking Thyristors

Condição de MCR8SM:
Novo em embalagem comercial

Garantia de MCR8SM:
3 meses direto com a Net Computadores

Designed primarily for half-wave ac control applications, such as motor controls, heating controls, and power supplies; or wherever half-wave, silicon gate-controlled devices are needed.

Manufacturer:	onsemi
Product Category:	SCRs
RoHS:	N
Breakover Current IBO Max:	80 A
Rated Repetitive Off-State Voltage VDRM:	600 V
Off-State Leakage Current @ VDRM IDRM:	10 uA
Vf - Forward Voltage:	1.8 V
Gate Trigger Voltage - Vgt:	1 V
Gate Trigger Current - Igt:	0.2 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	110 C
Mounting Style:	Through Hole
Package / Case:	TO-220-3
Packaging:	Tube
Brand:	onsemi
Height:	9.28 mm
Holding Current Ih Max:	6 mA
Length:	10.28 mm
Non Repetitive On-State Current:	80 A
Product Type:	SCRs
