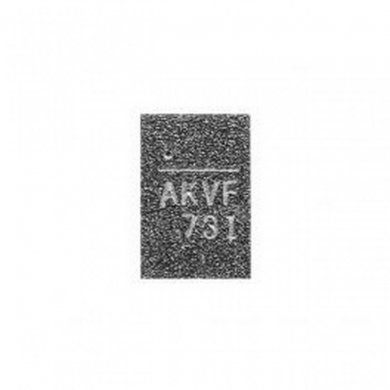

NB681 DC-DC Single Step Down 4.5V to 26V 13Pin QFN13

*As imagens podem ser ilustrativas

DC-DC Single Step Down 4.5V to 26V 13Pin QFN13

em estoque, envio imediato

R$ 38,00

à vista no Pix ou Boleto

ou R$ 39,47 em 1x no cartão (via site)

ou R$ 41,67 no cartão em até 10x sem juros (apenas na loja física)

R$ 38,00

à vista no Pix ou Boleto

R$ 39,47
em 1x no cartão (via site)

R$ 41,67 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 38,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar NB681

NB681 DC-DC Single Step Down 4.5V to 26V 13Pin QFN13

Condição de NB681: Novo em embalagem comercial

Garantia de NB681: 3 meses direto com a Net Computadores

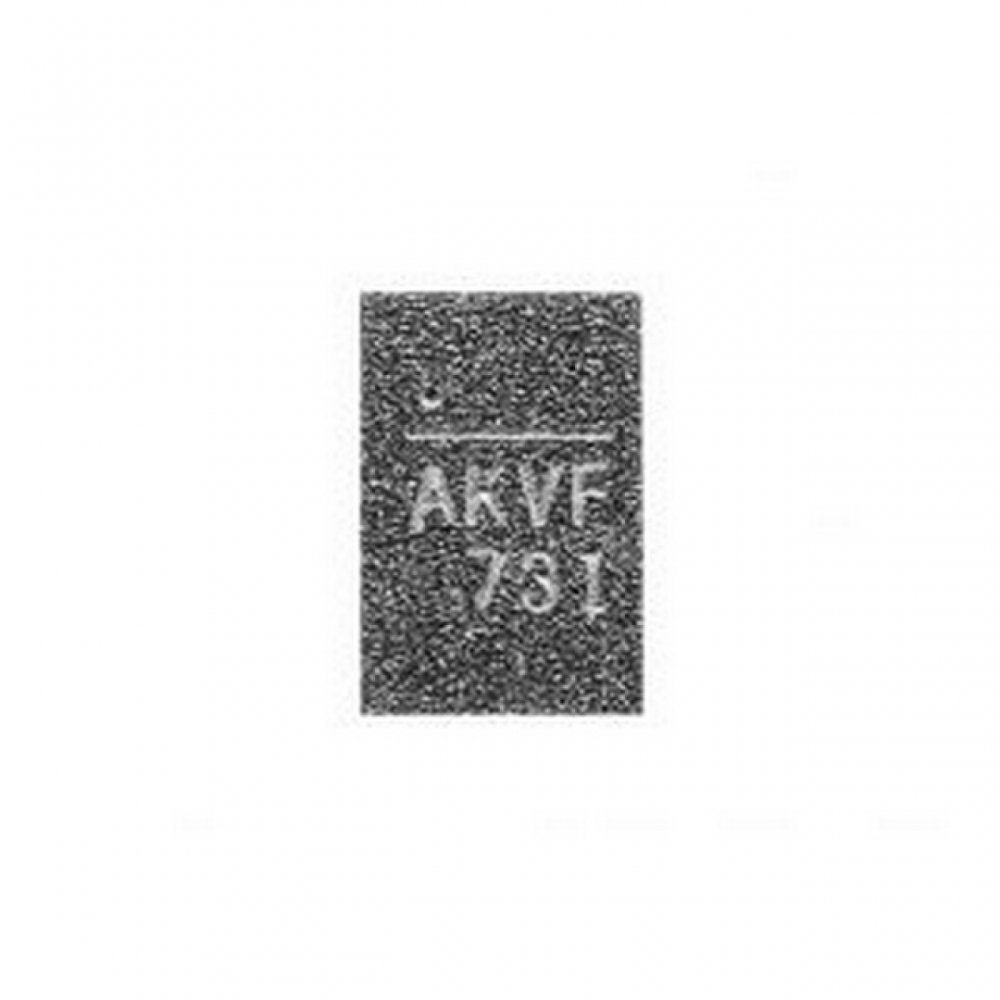

Outros PNs para este item: NB681GD-Z, AKVF, AKVE, AKVG, AKV

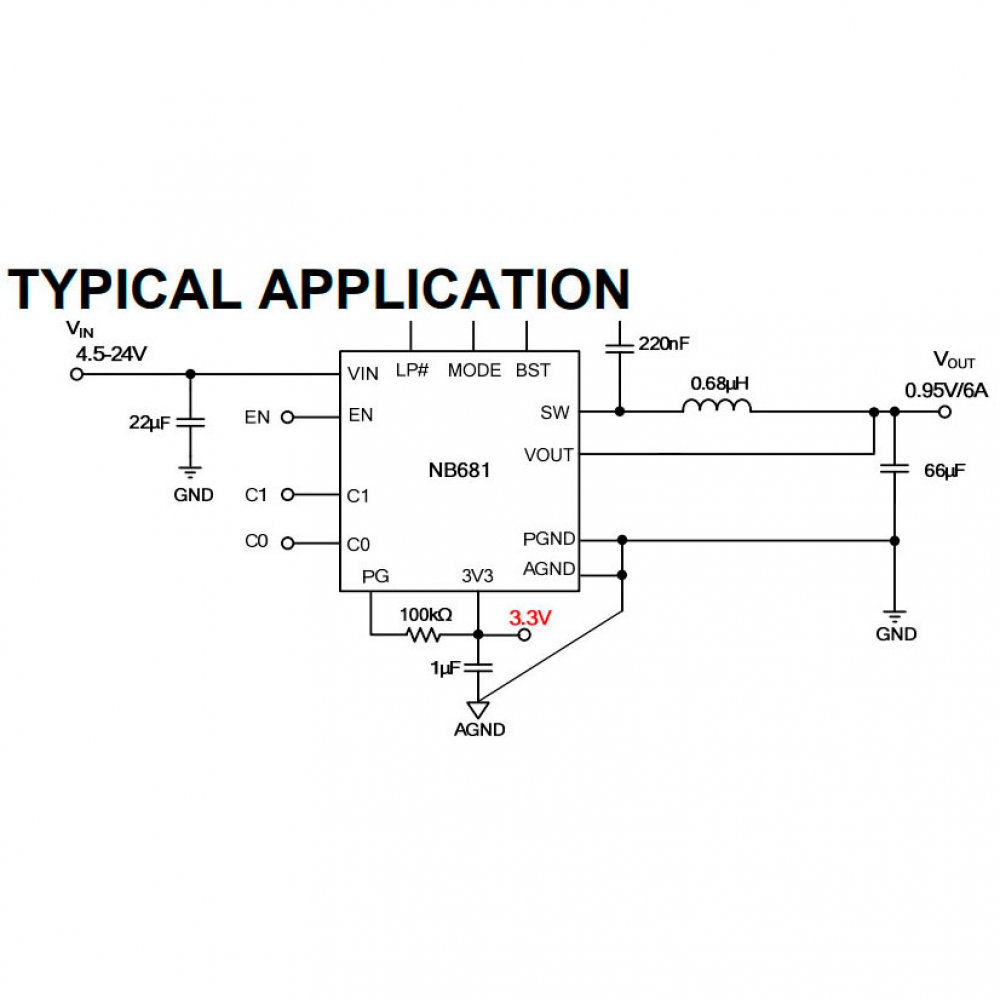

The NB681 is a fully integrated, highfrequency, synchronous, rectified, stepdown, switchmode converter with 2bit VID, especially designed for IMVP8 applicationsVCCIO, PRIMCORE, V1.0A, EDRAM, and EOPIO. It offers a very compact solution to achieve a 6A continuous output current and a 7.5A peak output current over a wide input supply range. The NB681 operates at high efficiency over a wide output current load range based on MPS proprietary switching loss reduction technology and internal low Ron power MOSFETs. Adaptive constantontime (COT) control mode provides fast transient response and eases loop stabilization. The DC autotune loop provides good load and line regulation. To avoid audible noise, NB681 provides lowpower mode for power loss saving during the lowpower state and ultrasonic mode. Full protection features include OC limit, OVP, UVP, and thermal shutdown. The converter requires a minimal number of external components, and it is available in a QFN 2mm x 3 mm package.

Key Features
Wide 4.5V to 26V Operating Input Range VCCIO/PRIMCORE/EDRAM/EOPIO/V1.0A Compatible for IMVP8 Output Adjustable by 2Bit VID LowPower Mode 25A Low Quiescent Current 6A Continous Output Current 7.5A Peak Output Current Selectable Ultrasonic Mode Adaptive COT for Fast Transient DC AutoTune Loop Stable with POSCAP and Ceramic Capacitors 1% Reference Voltage Internal Soft Start Output Discharge OCL, OVP, UVP, and Thermal Shutdown, LatchOff Reset via EN or Power Cycle QFN 2mm x 3mm Package.

Manufacturer:	Monolithic Power Systems (MPS)
Product Category:	Switching Voltage Regulators

Mounting Style:	SMD/SMT

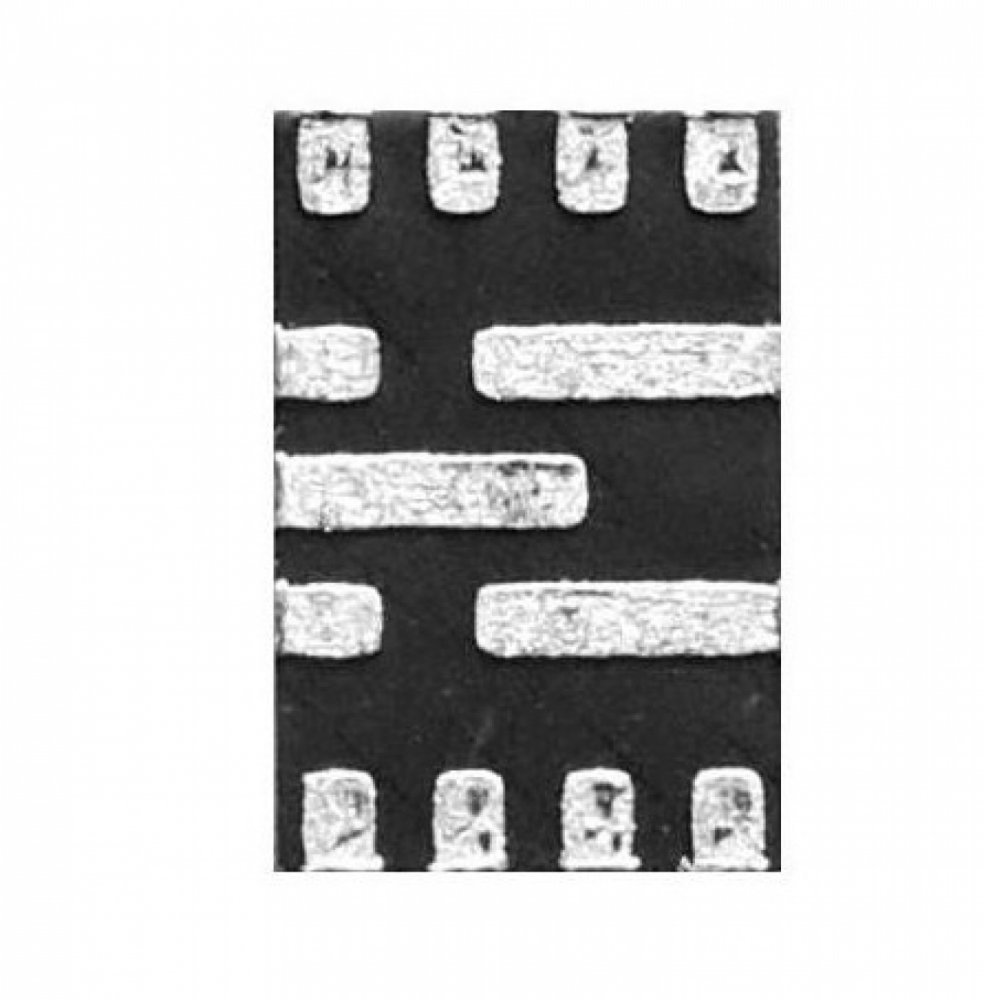

Package / Case:	QFN13
Topology:	Buck
Output Voltage:	0V to 1.2V
Output Current:	6 A
Number of Outputs:	1 Output
Input Voltage, Min:	4.5V
Input Voltage, Max:	26V
Switching Frequency:	750 kHz
Series:	NB681
Packaging:	Reel
Brand:	Monolithic Power Systems (MPS)
Input Voltage:	4.5V to 26V
Operating Supply Current:	25uA
Product:	Voltage Regulators
Product Type:	Switching Voltage Regulators
Shutdown:	Shutdown

Features e Benefits

Wide 4.5 V to 26 V Operating Input Range
VCCIO/PRIMCORE/EDRAM/EOPIO/V1.0A Compatible for IMVP8
Output Adjustable by 2Bit VID
LowPower Mode
25 A Low Quiescent Current
6 A Continous Output Current
7.5 A Peak Output Current
Selectable Ultrasonic Mode
Adaptive COT for Fast Transient
DC AutoTune Loop
Stable with POSCAP and Ceramic Capacitors
1% Reference Voltage
Internal Soft Start
Output Discharge
OCL, OVP, UVP, and Thermal Shutdown,
LatchOff Reset via EN or Power Cycle
QFN 2mm x 3mm Package

Maiores detalhes de NB681 no site do fabricante:
https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/

Tags de NB681: NB681, NB681GD, NB681GDZ, ci AKVF, ci AKVE, ci AKVG, ci AKV, MPS

NB681 DC-DC Single Step Down 4.5V to 26V 13Pin QFN13

Condição de NB681:
Novo em embalagem comercial

Garantia de NB681:
3 meses direto com a Net Computadores

Outros PNs para este componente: NB681GD-Z, AKVF, AKVE, AKVG, AKV

Manufacturer:	Monolithic Power Systems (MPS)
Product Category:	Switching Voltage Regulators

Mounting Style:	SMD/SMT
Package / Case:	QFN13
Topology:	Buck
Output Voltage:	0V to 1.2V
Output Current:	6 A
Number of Outputs:	1 Output
Input Voltage, Min:	4.5V
Input Voltage, Max:	26V
Switching Frequency:	750 kHz
Series:	NB681
Packaging:	Reel
Brand:	Monolithic Power Systems (MPS)
Input Voltage:	4.5V to 26V
Operating Supply Current:	25uA
Product:	Voltage Regulators
Product Type:	Switching Voltage Regulators
Shutdown:	Shutdown
