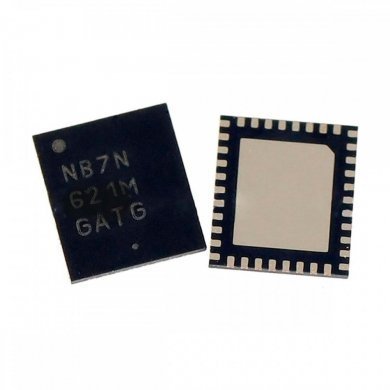

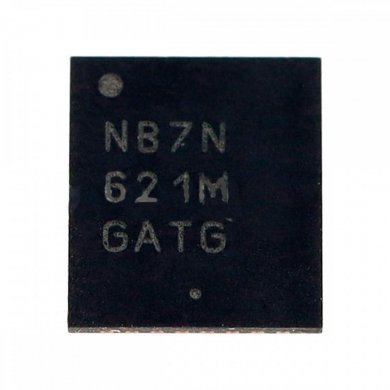

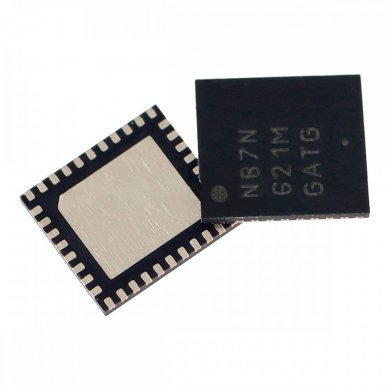

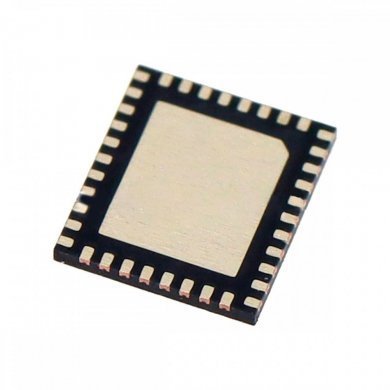

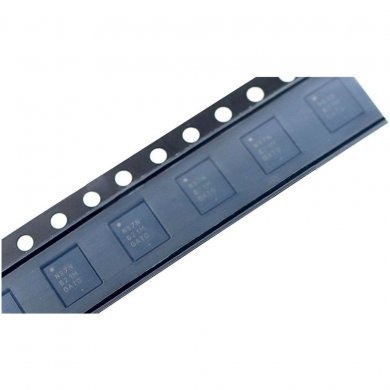

NB7NQ621M Ci HDMI XBOX series S/X PN: NB7N 621M NB7N621M

QFN-38 genuino OnSemi, novo e lacrado

NB7NQ621M Ci HDMI XBOX series S/X PN: NB7N 621M NB7N621M

*As imagens podem ser ilustrativas

Ci HDMI XBOX series S/X PN: NB7N 621M NB7N621M

envio de 20 a 40 dias uteis

R$ 89,00

à vista no Pix ou Boleto

ou R$ 93,68 em 1x no cartão (via site)

ou R$ 98,89 no cartão em até 10x sem juros (apenas na loja física)

R$ 89,00

à vista no Pix ou Boleto

R$ 93,68
em 1x no cartão (via site)

R$ 98,89 no cartão
em até 10x sem juros
(apenas na loja física)

Adicionar ao carrinho

Condição:

novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

cotar NB7NQ621M

indicar NB7NQ621M

R$ 89,00

à vista no pix

Comprar

Condição:
novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

NB7NQ621M Ci HDMI XBOX series S/X PN: NB7N 621M NB7N621M
QFN-38 genuino OnSemi, novo e lacrado

Condição de NB7NQ621M: novo em embalagem comercial

Garantia de NB7NQ621M: 3 meses direto com a Net Computadores

Outros PNs para este componente: 621M, NB7N, NB 7N, NB7N621M, NB7NQ621MMUTWG, N87N621M

Condição: Novo, original OnSemi
Garantia: 3 meses

3.3V Dual Mode HDMI 2.1 DisplayPort 1.4a and DisplayPort (DP ) 12Gbps Level Shifter Linear Redriver

Features:

3.3 V (5%) Power Supply
Quad Channel Redriver Supporting Data Rates up to 12 Gbps
Up to 15 dB of Equalization at 6 GHz
I2C Programming Supporting Fastmode Transfer up to 400 kbps
Pinstrapping/GPIO for Global Settings Only
Active AUX Monitoring (lane count and power level)
Integrated Input Termination and Selectable Output Termination
Hot Plug Detection and 3.3 V Level Shifting
Operating Temperature Range: 40C to 85C
These are Pbfree Devices
Package: X2QFN38, 4.05 x 4.5 mm

Applications

HDMI 2.1 and DisplayPort v1.4a
Gaming Consoles and Graphics Cards
Settop Boxes and Bluray Players
Desktops, Notebooks, and Docking Stations

The NB7NQ621M is a 3.3 V DualMode DisplayPort (DP ) quadchannel linear redriver supporting HDMI 2.1 Fixed Rate Link (FRL) up to 12 Gbps, TMDS up to 6 Gbps, and DisplayPort v1.4a Main Link (ML) up to 8.1 Gbps (HBR3). Signal integrity degrades from PCB traces, transmission cables, and intersymbol interference (ISI). The NB7NQ621M compensates for these losses by engaging varying levels of user selectable flat gain and equalization to create the best eye opening for the outgoing data signals.

The NB7NQ621M is a linear redriver and is inherently transparent to link training signals resulting in shorter system integration and software development cycles. The redriver input and output signals may be either AC or DC coupled, which can eliminate the need for additional level shifter components from the data channels. The NB7NQ621M is equipped with I2C programmability for convenient adjustments to operation mode, channel power down, flat gain, equalization, and output swing settings.

It supports 5V to 3.3V level shifting for HDMI hot plug detection pins and supports DisplayPort AUX channel monitoring for lane count and power state. NB7NQ621Ms supplementary graphical user interface (GUI) was developed to help system designers optimize their system for the best settings. After optimization, the GUI can generate the register values and register settings in order to simplify software development

Maiores detalhes de NB7NQ621M no site do fabricante:
https://www.onsemi.com/products/signal-conditioning-control/redrivers/nb7nq621m

Tags de NB7NQ621M: 621M, NB7N, NB 7N, NB 7N621M, NB7N621M, NB7NQ621M, NB7NQ621MMUTWG, N87N621M, N87N621MGBNE, N87N621MGBNF, NB7N621MGBNE, NB7N621MGBNF, ci do HDMI XBOX, ci HDMI Xbox, hdmi-redriver XBOX, ci saida de video XBOX, 75dp159, Sn75dp159, NB7N621M,, =NB7NQ621M, ON Semiconductor

NB7NQ621M Ci HDMI XBOX series S/X PN: NB7N 621M NB7N621M QFN-38 genuino OnSemi, novo e lacrado

Condição de NB7NQ621M:
novo em embalagem comercial

Garantia de NB7NQ621M:
3 meses direto com a Net Computadores

Outros PNs para este componente: 621M, NB7N, NB 7N, NB7N621M, NB7NQ621MMUTWG, N87N621M

Condição: Novo, original OnSemi
Garantia: 3 meses

3.3V Dual Mode HDMI 2.1 DisplayPort 1.4a and DisplayPort (DP ) 12Gbps Level Shifter Linear Redriver
