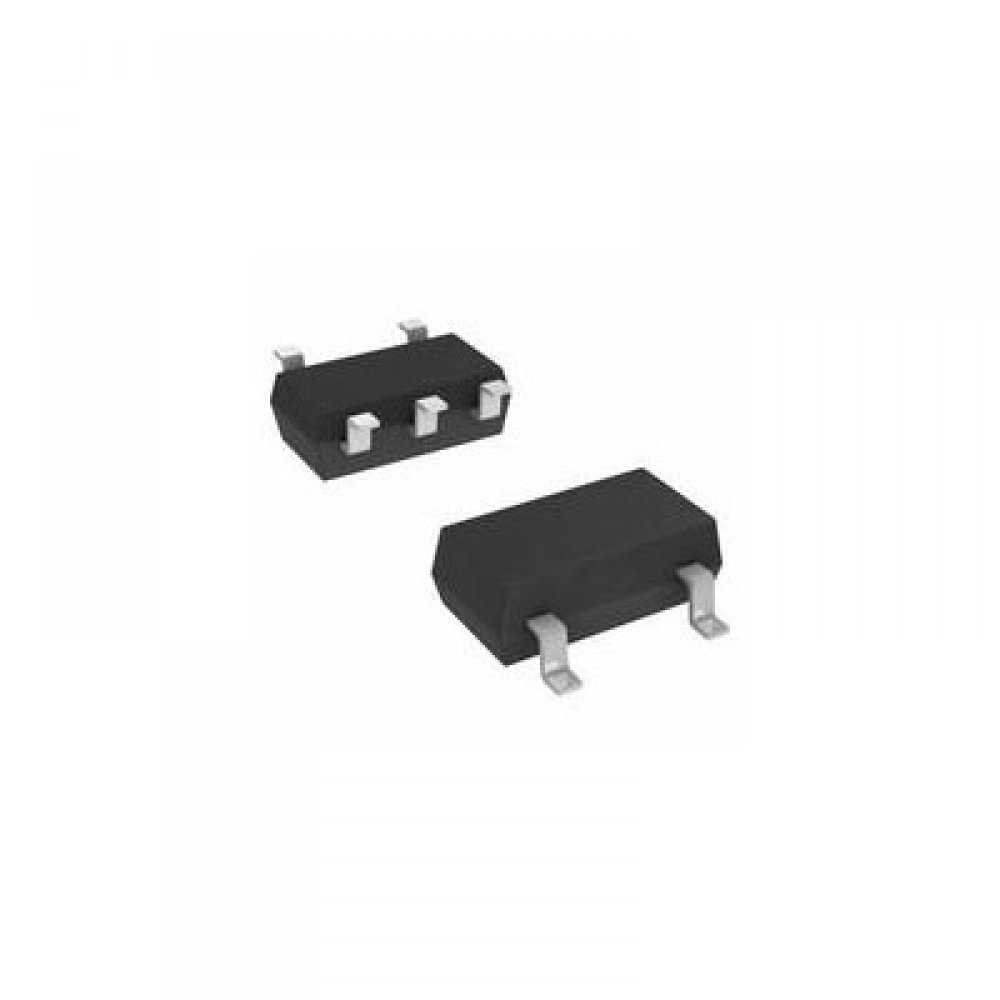

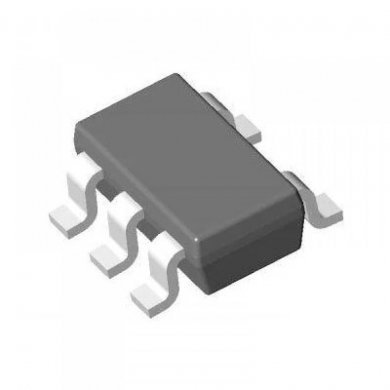

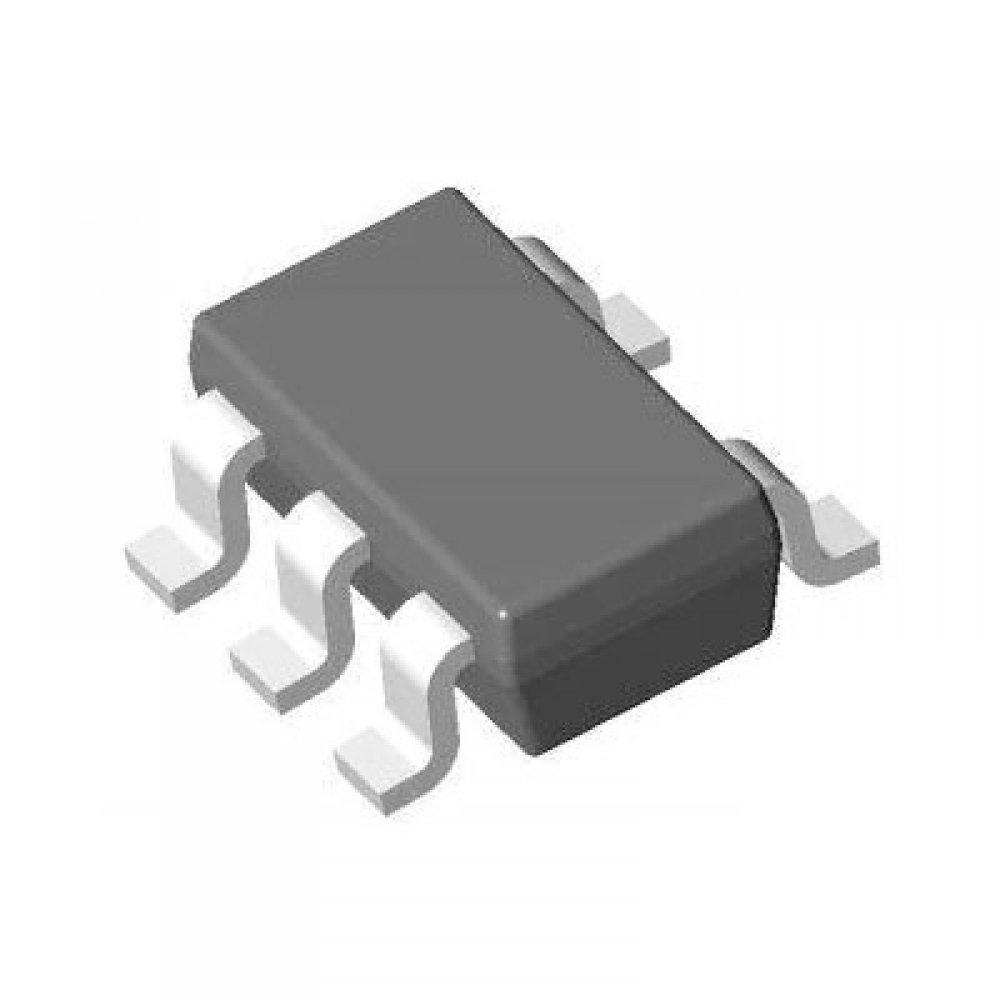

NC7ST08P5X TinyLogic HST 2 Input AND Gate SOT23-5

porta logica AND

NC7ST08P5X TinyLogic HST 2 Input AND Gate SOT23-5

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 6,00

à vista no Pix ou Boleto

ou R$ 5,79 em 1x no cartão (via site)

ou R$ 6,11 no cartão em até 10x sem juros (apenas na loja física)

R$ 6,00

à vista no Pix ou Boleto

R$ 5,79
em 1x no cartão (via site)

R$ 6,11 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 6,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar NC7ST08P5X

NC7ST08P5X TinyLogic HST 2 Input AND Gate SOT23-5
porta logica AND

Condição de NC7ST08P5X: Novo em embalagem comercial

Garantia de NC7ST08P5X: 3 meses direto com a Net Computadores

Outros PNs para este item: NC7ST08, T08

Description The NC7ST08 is a single 2 Input high performance CMOS AND Gate, with TTL-compatible inputs. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation. ESD protection diodes inherently guard both inputs and output with respect to the VCC and GND rails. High gain circuitry offers high noise immunity and reduced sensitivity to input edge rate. The TTL-compatible inputs facilitate TTL to NMOS / CMOS interfacing. Device performance is similar to MM74HCT but with 1/2 the output current drive of HC / HCT.

Features

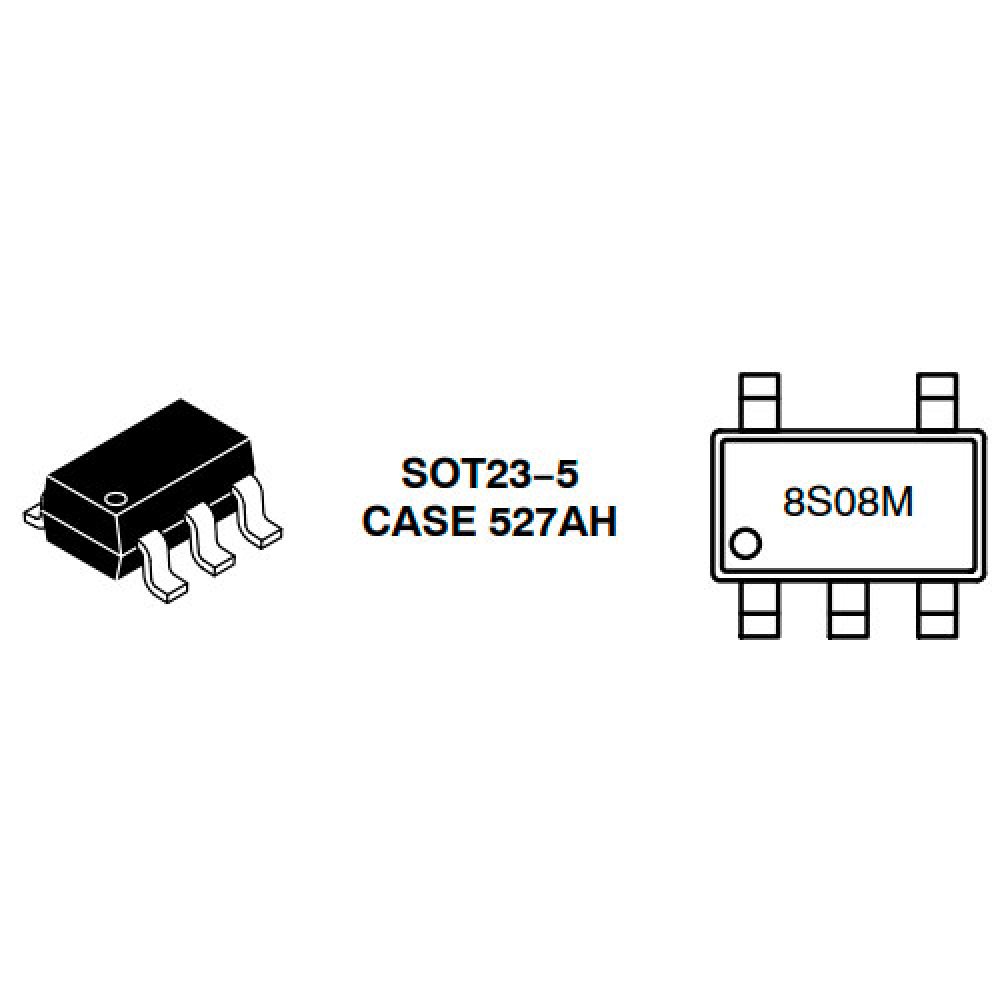

- Space Saving SOT23-5, SC-74A and SC-88A 5-Lead Package
- Ultra Small MicroPak- Leadless Package
- High Speed: tPD = 6 ns (Typ), VCC = 5 V, CL = 15 pF, TA = 25°C
- Low Quiescent Power: ICC < 1 A Typ, VCC = 5.5 V
- Balanced Output Drive: 2 mA IOL, -2 mA IOH
- TTL-compatible Inputs - These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Manufacturer:	onsemi
Product Category:	Logic Gates

Product:	Single-Function Gate
Logic Function:	AND
Logic Family:	NC7ST
Number of Gates:	1 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 2 mA
Low Level Output Current:	2 mA
Propagation Delay Time:	27 ns
Supply Voltage - Max:	5.5 V
Supply Voltage - Min:	4.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	SC-70
Packaging:	Reel
Brand:	onsemi / Fairchild
Function:	Gate
Height:	1 mm
Length:	2 mm
Logic Type:	2 Input AND
Operating Supply Voltage:	5V
Product Type:	Logic Gates
Series:	NC7ST08

Maiores detalhes de NC7ST08P5X no site do fabricante:
https://www.onsemi.com/pdf/datasheet/nc7st08-d.pdf

Vídeo de NC7ST08P5X TinyLogic HST 2 Input AND Gate SOT23-5

Tags de NC7ST08P5X: NC7ST08P5X, NC7ST08, NC7ST08P, ic AND gate, ci porta AND, porta AND, MM74HCT, NC7ST, porta logica AND, ic T08, CI T08, Ci marcação T08, Ci mark T08, IC mark T08, ci 5 terminais T08, ON Semiconductor

NC7ST08P5X TinyLogic HST 2 Input AND Gate SOT23-5 porta logica AND

Condição de NC7ST08P5X:
Novo em embalagem comercial

Garantia de NC7ST08P5X:
3 meses direto com a Net Computadores

Outros PNs para este componente: NC7ST08, T08

Manufacturer:	onsemi
Product Category:	Logic Gates

Product:	Single-Function Gate
Logic Function:	AND
Logic Family:	NC7ST
Number of Gates:	1 Gate
Number of Input Lines:	2 Input
Number of Output Lines:	1 Output
High Level Output Current:	- 2 mA
Low Level Output Current:	2 mA
Propagation Delay Time:	27 ns
Supply Voltage - Max:	5.5 V
Supply Voltage - Min:	4.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	85 C
Mounting Style:	SMD/SMT
Package / Case:	SC-70
Packaging:	Reel
Brand:	onsemi / Fairchild
Function:	Gate
Height:	1 mm
Length:	2 mm
Logic Type:	2 Input AND
Operating Supply Voltage:	5V
Product Type:	Logic Gates
Series:	NC7ST08
