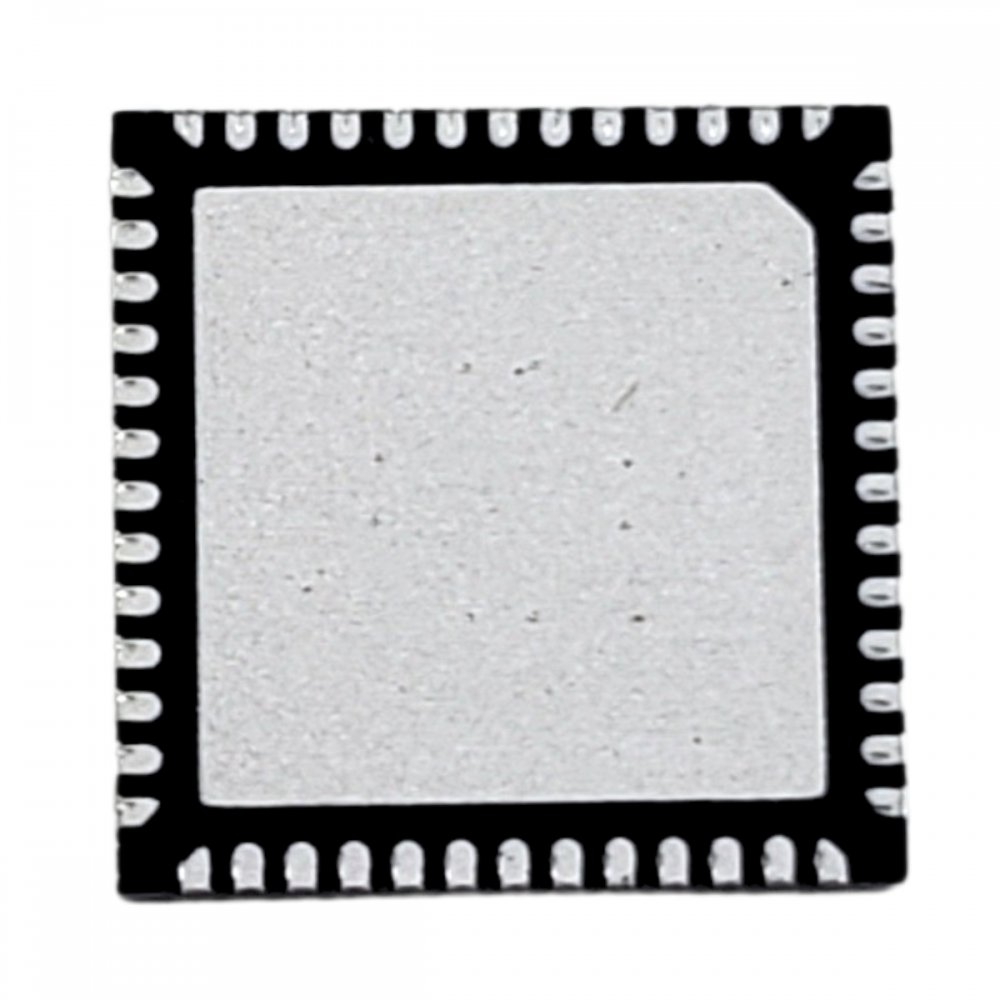

NCP81215P Ci PWM buck converter 3 saídas QFN52 (Kit 2x und)

original On Semiconductor ( Kit com 2 unidades)

NCP81215P Ci PWM buck converter 3 saídas QFN52 (Kit 2x und)

*As imagens podem ser ilustrativas

Ci PWM buck converter 3 saídas QFN52 (Kit 2x und)

em estoque, envio imediato

R$ 25,00

à vista no Pix ou Boleto

ou R$ 26,32 em 1x no cartão (via site)

ou R$ 27,78 no cartão em até 10x sem juros (apenas na loja física)

R$ 25,00

à vista no Pix ou Boleto

R$ 26,32
em 1x no cartão (via site)

R$ 27,78 no cartão
em até 10x sem juros
(apenas na loja física)

Adicionar ao carrinho

Condição:

novo em embalagem antiestática

Garantia:

3 meses direto com a Net Computadores

NCM:

85423120

cotar mais de 1 peça de NCP81215P

indicar a um amigo NCP81215P

R$ 25,00

à vista no pix

Comprar

Condição:
novo em embalagem antiestática

Garantia:
3 meses direto com a Net Computadores

NCM: 85423120

NCP81215P Ci PWM buck converter 3 saídas QFN52 (Kit 2x und)
original On Semiconductor ( Kit com 2 unidades)

Condição de NCP81215P: novo em embalagem antiestática

Garantia de NCP81215P: 3 meses direto com a Net Computadores

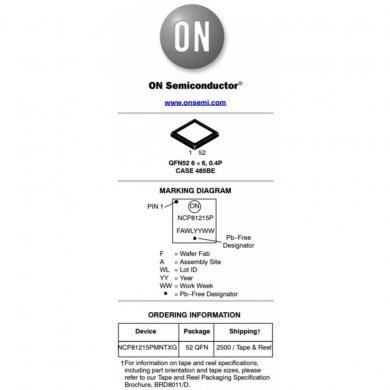

Outros PNs para este componente: NCP81215PMNTXG

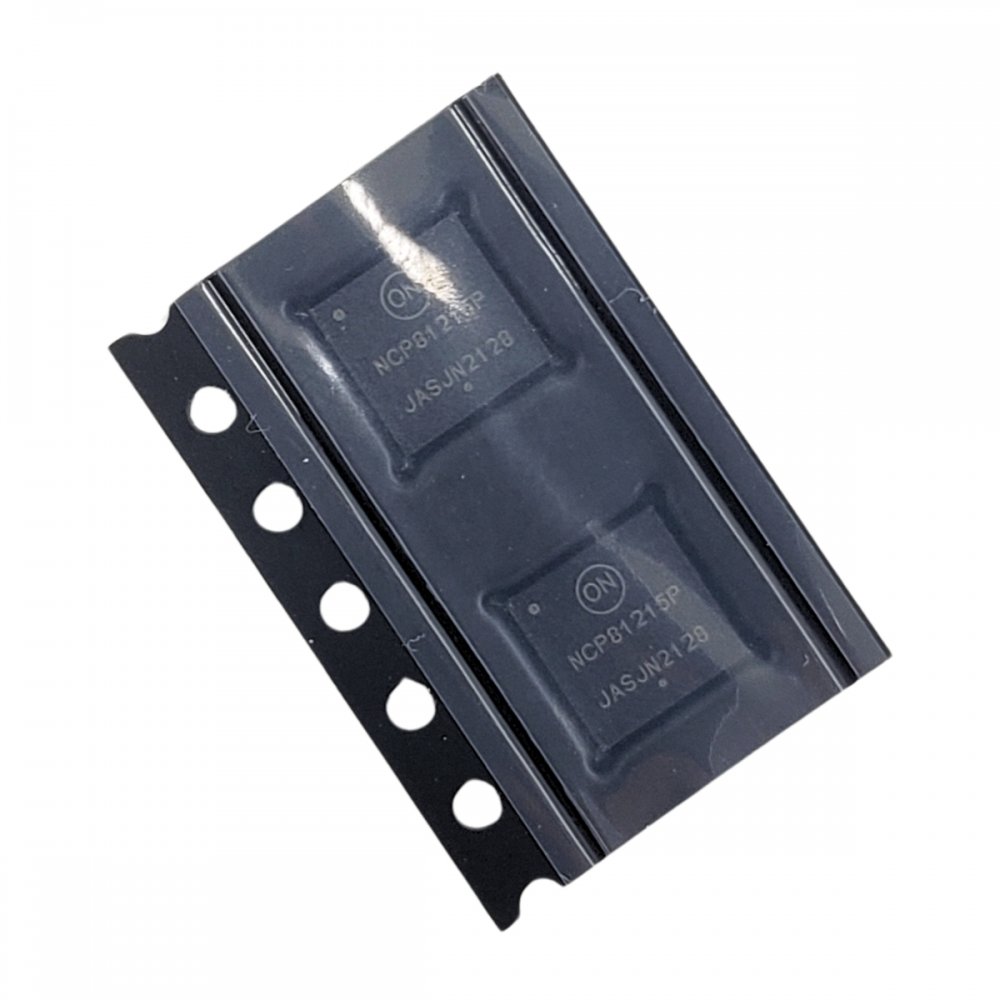

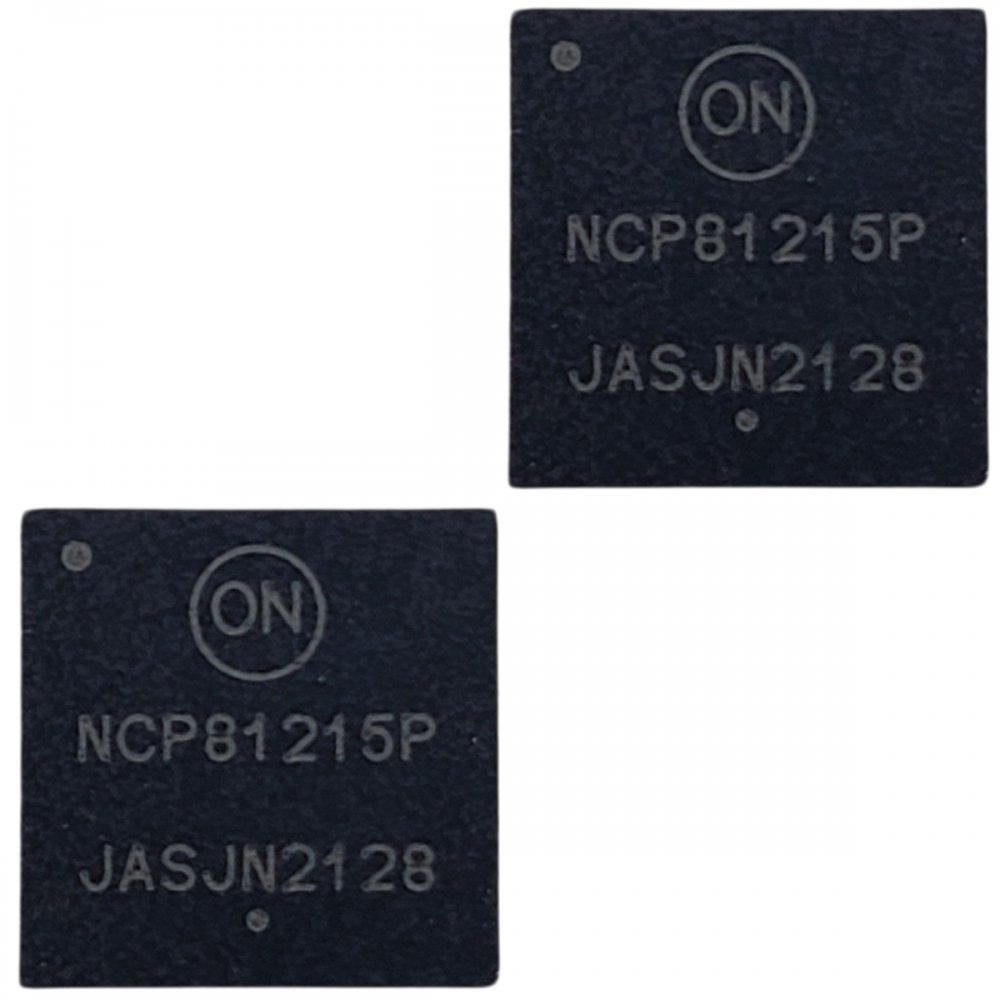

Kit 2x unidades

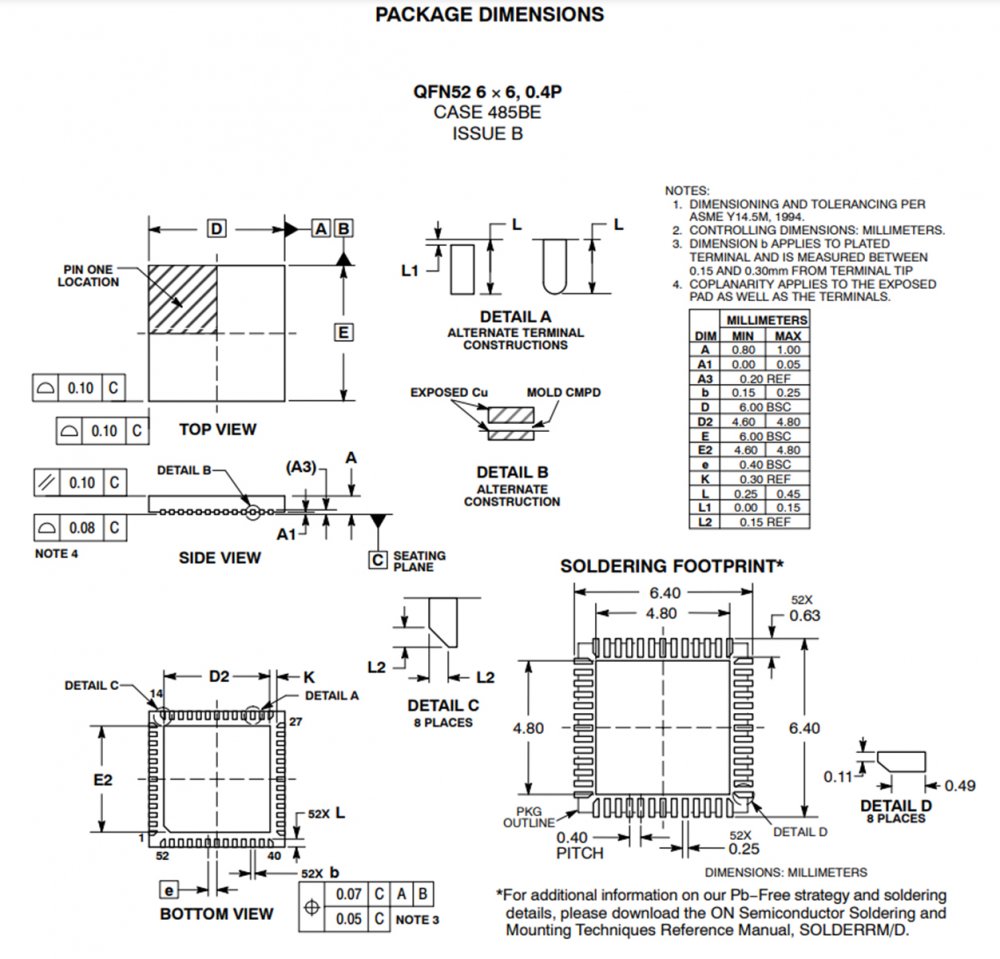

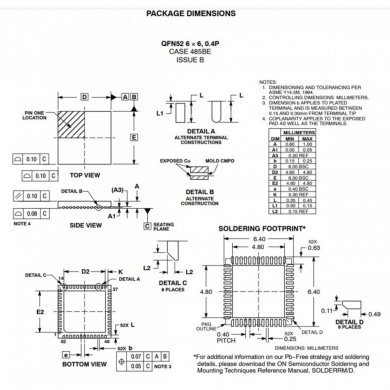

Ci PWM buck converter 3 saídas QFN52

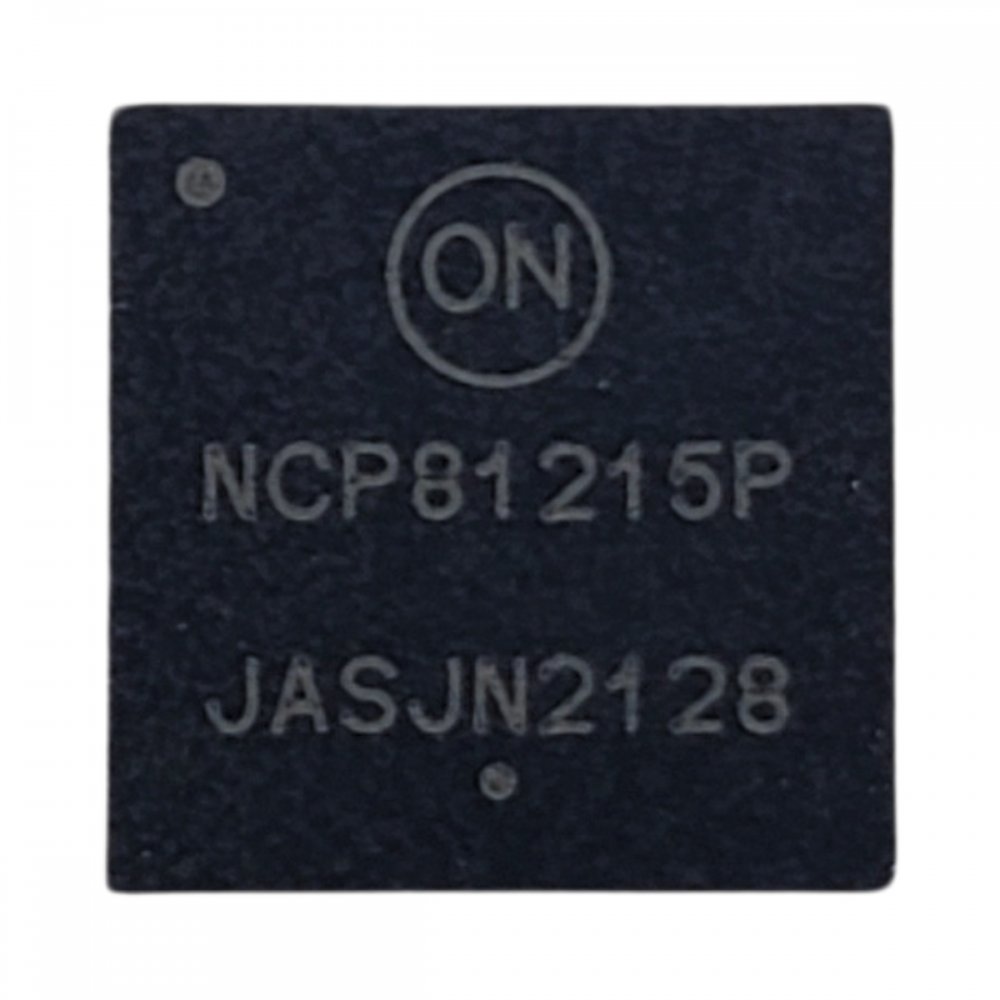

Original On Semiconductor

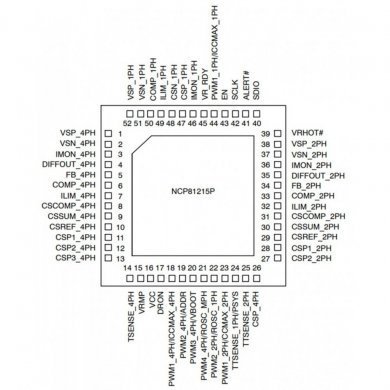

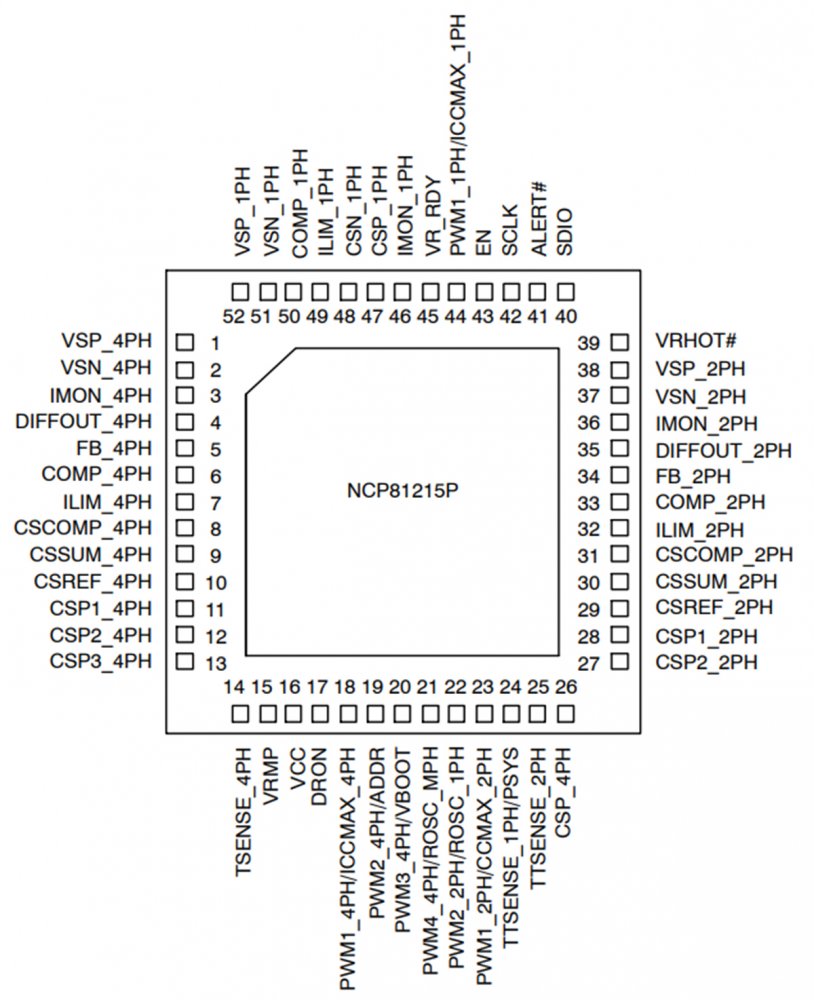

The NCP81215P (4 2 1 phase) three output buck solution is optimized for Intels IMVP8 CPUs. The two multiphase rail control systems are based on DualEdge pulsewidth modulation (PWM) combined with DCR current sensing providing an ultra fast initial response to dynamic load events and reduced system cost. The singlephase rail makes use of ON Semiconductors patented high performance RPM operation. RPM control maximizes transient response allowing for smooth transitions between discontinuousfrequencyscaling operation and continuousmode fullpower operation. The NCP81215P has an ultralow offset current monitor amplifier with programmable offset compensation for highaccuracy current monitoring.

MultiPhase Rail Features
Dual Edge Modulation for Fastest Initial Response to Transient Loading
High Performance Operational Error Amplifier
Digital Soft Start Ramp
Dynamic Reference Injection (Patent #US7057381)
Accurate Total Summing Current Amplifier (Patent #US6683441)
Dual High Impedance Differential Voltage and Total Current Sense Amplifiers
PhasetoPhase Dynamic Current Balancing
True Differential Current Balancing Sense Amplifiers for Each Phase
Adaptive Voltage Positioning (AVP)
Switching Frequency Range of 300 kHz 1.2 MHz
Vin range 4.5 V to 25 V
Startup into PreCharged Loads While Avoiding False OVP
UltraSonic Operation SinglePhase Rail Features
Enhanced RPM Control System
Ultra Low Offset IOUT Monitor
Dynamic VID FeedForward
Programmable Droop Gain
Zero Droop Capable

Applications
Desktop e Notebook Processors
Gaming

Kit 2x unidades

Maiores detalhes de NCP81215P no site do fabricante:
https://datasheets.su/DS/OnSemi/NCP81215P-D.pdf

Tags de NCP81215P: NCP81215PMNTXG, NCP81215P, NCP 81215PMNTXG, 81215, NCP81215, NCP81215D, NCP81215DMNTXG, NCP81215MNTXG, Three Output Controller with Single SVID Interface for Desktop and Notebook CPU Applications, IMVP8, ON Semiconductor
