Controladoras / SATA / 04 Canais / PEXMSATA343

Controladoras / SATA

Seminovos e recertificados

PEXMSATA343

Controladora StarTech SATA III MSATA

3 Portas Sata, 1 Porta MSATA, Suporte para HyperDuo SSD, PCI Express 2.0 X1

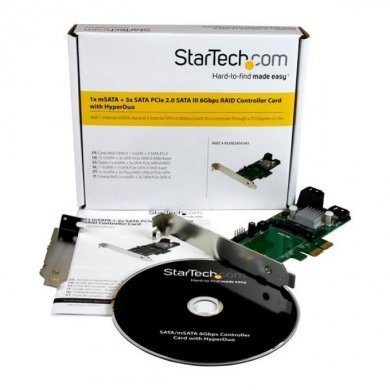

PEXMSATA343 Controladora StarTech SATA III MSATA

*Imagens ilustrativas

PEXMSATA343

Controladora StarTech SATA III MSATA

3 Portas Sata, 1 Porta MSATA, Suporte para HyperDuo SSD, PCI Express 2.0 X1

Condição:

novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

envio de 20 a 40 dias uteis

Site
Loja Física

R$ 991,50

À vista já com 5% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou no cartão de crédito por R$ 1.043,68

Condição exclusiva para o site. Parcelas serão exibidas na tela de pagamento.

R$ 991,50

À vista já com 10% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou R$ 1.101,67 no cartão de crédito em até 10x sem juros

Condição exclusiva para compras presenciais na loja física.

Preço e prazo desatualizados, solicite revisão antes de comprar

Adicionar ao carrinho

Comprar agora

Preço e prazo desatualizados, solicite revisão antes de comprar

R$ 991,50

à vista no pix

Comprar

Condição: novo em embalagem comercial

Garantia: 12 meses direto com a Net Computadores

NCM: 84733049

cotar mais de 1 peça de PEXMSATA343
indicar a um amigo PEXMSATA343

Net Computadores

desde 1998, atua como revenda de equipamentos para informática com foco em hardware para TI empresarial.

saiba mais

PEXMSATA343 Controladora StarTech SATA III MSATA

Condição de PEXMSATA343: novo em embalagem comercial

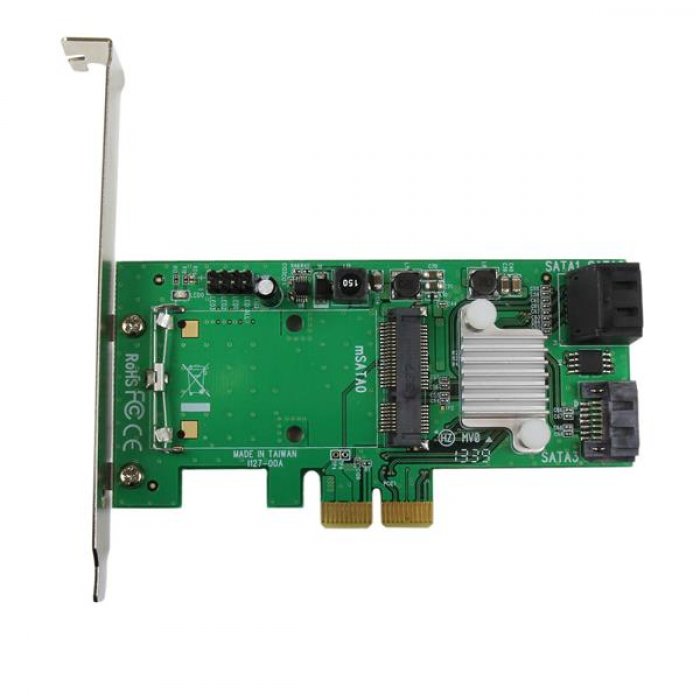

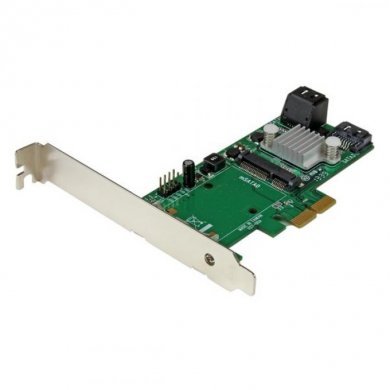

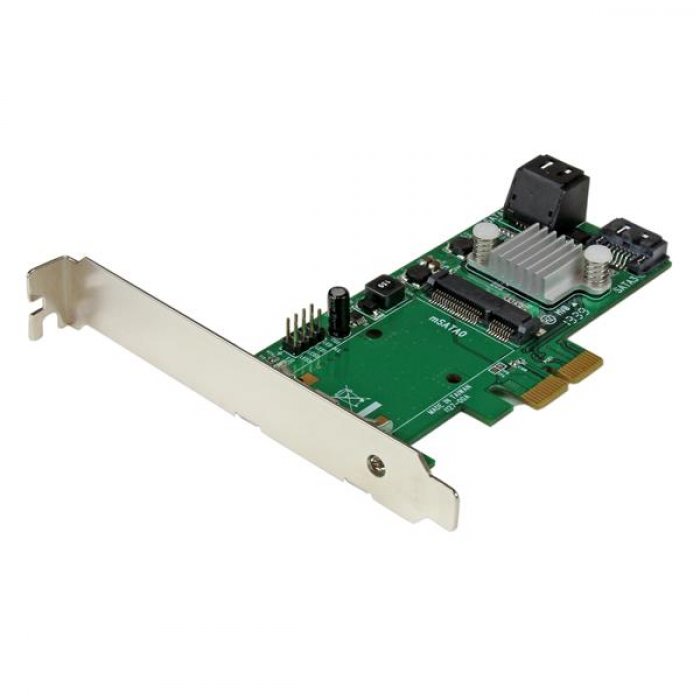

The PEXMSATA343 3-Port PCI Express 2.0 SATA Card with HyperDuo adds an internal mSATA SSD (Solid State Drive) slot plus three internal SATA III ports to your computer through a PCIe x2 slot, adding multiple 6 Gbps internal connections that enable you to improve the overall speed and storage capacity of your computer by connecting high-performance SSDs and hard drives.

Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)

The PCIe SATA controller card offers Port Multiplier (PM) support, so multiple SATA drives can be connected over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 2 ports and mSATA slot). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1) support.

Throughput Benchmark

Drive configuration

Throughput

Drive size

1 x HDD

112.81 MB/s

2 TB

1 x SSD

490.28 MB/S

120 GB

1 x HDD + 1 x SSD HyperDuo (Safe Mode)

489.28 MB/s

2 TB

1 x HDD + 2 x SSD HyperDuo (Safe Mode)

715.13 MB/s

2 TB

Drives Used:

SSD: OCZ Vertex 3 Series 2.5 120 GB (VTX3-25SAT3-120G)

HDD: Western Digital Caviar Green 3.5 2 TB (WD20EARS)

Software Used:

IO Meter, 256KB Sequential Read, queue depth = 10

You can install a SSD directly to the card via a convenient metal latching clip to help relieve the internal space constraints often associated with multiple hard drive configurations. Plus the controller card also includes a low profile/half-height installation bracket for small form factor (SFF) systems.

General Information

Product Name 3 Port PCIE SATA III Card with MSATA Slot & Hyperduo SSD Tiering

Manufacturer Part Number PEXMSATA343

Packaged Quantity 1

Product Type SATA Controller

Technical Information

Host Interface PCI Express 2.0 x2

Controller Type Serial ATA/600

RAID Supported Yes

RAID Levels JBOD

1+0

Interfaces/Ports
