S5000VCL Intel Server Board Dual Xeon LG771

Name: S5000VCL Intel Server Board Dual Xeon LG771
Brand: Intel
SKU: S5000VCL
Price: 1554.00 BRL
Availability: InStock

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 1.554,00

à vista no Pix ou Boleto

ou R$ 1.634,84 em 1x no cartão (via site)

ou R$ 1.725,67 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.554,00

à vista no Pix ou Boleto

R$ 1.634,84
em 1x no cartão (via site)

R$ 1.725,67 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Seminovo recondicionado e recertificado como Grade A - Pronto para uso!

Garantia:

3 meses direto com a Net Computadores

NCM:

84733041

R$ 1.554,00

à vista no pix

Comprar

Condição:
Seminovo recondicionado e recertificado como Grade A - Pronto para uso!

Garantia:
3 meses direto com a Net Computadores

NCM: 84733041

Cotação PJ mais de uma unidade

Indicar S5000VCL

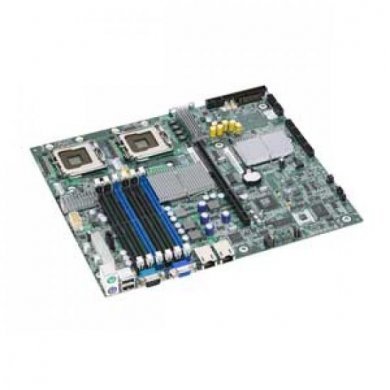

S5000VCL Intel Server Board Dual Xeon LG771

Condição de S5000VCL: Seminovo recondicionado e recertificado como Grade A - Pronto para uso!

Garantia de S5000VCL: 3 meses direto com a Net Computadores

Key Features

Support for One or Two Intel® Xeon Processors with a 1066MHz or 1333MHz System Bus
CEB Form Factor 10.5 x 12 (266mm x 304mm)
Intel® 5000V Server Chipset for Enterprise Performance and Reliabiity
Dual Memory-Channel Architecture Supporting 6 Fully Buffered ECC DIMMS (12GB Max)
FH/ML PCI-X 133
Dual Intel® Pro/1000 EB Network Connections
6 Port SATA Supporting RAID 0 and 1 and 10
ATI Integrated Graphics with 16MB of Memory
Single ATA 100 Connector for Optical Drive Support

Specifications

Part Numbers
Part Number		Description
S5000VCL		Intel® Server Board S5000VCL
Physical Specifications
Form Factor		CEB (Compact Electronics Bay)
Dimensions		10.5 x 12 (266.7mm x 304.7mm)
Processor Information
CPU Socket		LGA771
Supported CPUs		Boxed Intel® Xeon® Processor Series 5100
Thermal Solutions Supported		Active 1U Heatsink
System Bus Speed		1033,1066, Independent per CPU, 17GB/s
System Memory
Number of DIMM Sockets		6
Total Memory Supported		12GB
Minimum number of DIMMs		2
Dual Channel Support		Yes
Memory Type		DDR-2 (FBDIMM)
DIMM Sizes Supported		256MB, 512MB, 1024MB, 2056MB
Memory Voltage		1.5VDC
Memory Reliability
	Error Detection	Yes
	Memory Sparing	Yes
	Memory Mirroring	Yes
	Hot Swap Memory	No
On-Board Devices
Chipset		Intel® 5000V Server Chipset
SATA
	Controller	ESB2
	Number of Drives	6
	Number of Ports	N/A
	RAID Support	0, 1, 10
SAS		None
	Controller
	Number of Drives
	Number of Ports
	RAID Support
SCSI		None
	Controller
	RAID Support
IDE		Yes
	Number of IDE Devices Supported	1
	IDE Modes Supported	ATAPI
Floppy Controller		None
Network Adaptor		Yes
	Controller
	Speeds	1GB
	Number of Ports
Graphics		Yes (ATI ES1000)
Super I/O		National Semiconductor PC87427
Clock Generator		Yes
LED Diagnostics		Yes
Input / Output
External USB Ports		Yes (1 Front, 2 back)
Internal USB Connections		None
USB Standards Supported		USB 2.0
VGA		Up to 1024 X 768 resolution, 100 Hz refresh rate
Keyboard / Mouse		Yes
Serial Ports		Yes
Parallel Port		None
Supported Chassis
Rack
	1U	Intel® Server Chassis SR1530
	2U
	Small Depth
	Pedestal Conversion
Pedestal
Expansion Slots
PCI-Express		None
PCI-X		None
PCI		None
Adaptive		Yes
System BIOS
BIOS Type
BIOS Features
	Rolling BIOS
	SMBIOS
	PnP
	APM
	DMI
	PCI
	ACPI
	Other Features
Management
Supported Standards		IPMI 2.1
Software
Hardware Module Support
Power Configurations
PC Health Monitoring
CPU		Yes
FAN		Yes
Temperature		Yes
Intrusion Detection		Yes

Maiores detalhes de S5000VCL no site do fabricante:
http://www.intel.com/p/pt_BR/support/highlights/server/s5000vcl

Vídeo de S5000VCL Intel Server Board Dual Xeon LG771
