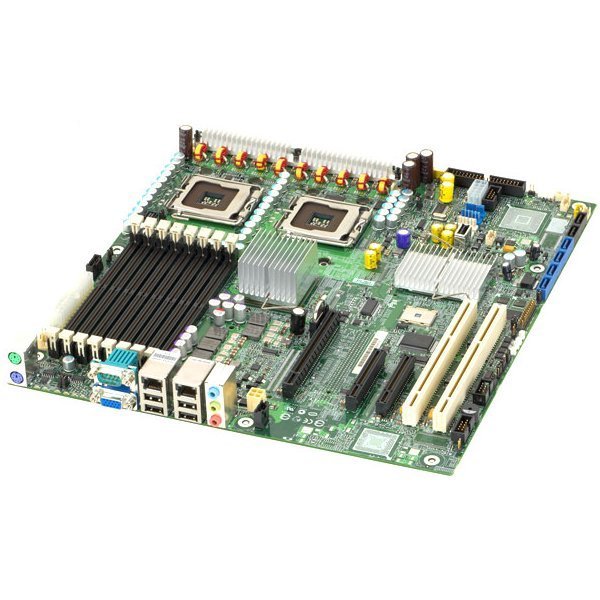

S5000XVNSATAR Intel Workstation Board Dual Xeon Quad Socket LGA771, Chipset Intel S5000X, FSB 667/1066/1333MHz, 32GB ECC FBDIMMs, SATA RAID, PCI-E, 2x R
Condição de S5000XVNSATAR:
Seminovo testado e pronto para uso!
Garantia de S5000XVNSATAR:
3 meses direto com a Net Computadores
- Descrição: S5000XVNSATAR
- Garantia: 03 anos
- Chassis Suportado: Intel Server Chassis SC5400BASE Intel Entry Server Chassis SC5299WS
- Chipset: Intel S5000X Server Chipset
- Memória (tipo): ECC FBDIMMs
- Memória (freqüências suportadas): 533 / 667 MHz
- Memória (capacidade máxima): 8 Slots até 32GB
- Vídeo onboard: Não
- Áudio onboard: Não
- Rede onboard: 2 x Gigabit
- Fax Modem onboard: Não
- IDE: 1 porta IDE ATA (suporta até 2 dispositivos)
- SATA: 6 portas Serial ATA
- Suporte a RAID: RAID 0, 1, 10
- Slots Types: 1 x PCI Express x16; 1 x PCI Express x8; 1 x PCI Express x4; 2 x PCI-X 64MHz 100/133MHz
- PCI Buses: 5
- SCSI Integrado: Não
- Barramento: 667 / 1066 / 1333MHz
- Número de Processadores: 2
- Processador Suportado: Xeon Dual Core e Quad Core
| Full Specifications |
| Part Numbers |
| Part Number |
Description |
| Part Number |
S5000XVNSAS, S5000XVNSATAR |
| Physical Specifications |
| Form Factor |
SSI EEB 3.6 (Extended ATX) |
| Dimensions |
12 X 13 (305mm X 330mm) |
| Processor Information |
| CPU Socket |
LGA771 |
| Supported CPUs |
Dual-Core Intel® Xeon® Processor 5000 sequence |
| Thermal Solutions Supported |
Active or passive |
| System Bus Speed |
667 MHz, 1066 MHz, or 1333 MHz |
| System Memory |
| Number of DIMM Sockets |
8 |
| Total Memory Supported |
32GB |
| Minimum number of DIMMs |
1 |
| Number of Memory Channels |
Four |
| Memory Type |
ECC FBDIMMs |
| DIMM Sizes Supported |
512MB, 1GB, 2GB, 4GB |
| Memory Voltage |
1.5VDC |
| Memory Reliability |
|
| |
Error Detection |
Yes* |
| |
Memory Sparing |
Yes* |
| |
Memory Mirroring |
Yes* |
| |
Hot Swap Memory |
No |
| On-Board Devices |
| Chipset |
Intel® 5000X Server Chipset |
| SAS (S5000XVNSAS Only) |
|
| |
Controller |
LSI 1068x with Intel® 80333 IOP |
| |
Number of Drives |
4 direct drives with up to 120 with expanders |
| |
Number of Ports |
4 |
| |
RAID Support |
RAID 0, 1, 10 with optional AXXRAKSW5 for RAID 5* |
| SATA (S5000XVNSATA Only) |
|
| |
Controller |
Intel® 6321ESB I/O Controller |
| |
Number of Drives |
6 |
| |
Number of Ports |
6 |
| |
RAID Support |
RAID 0, 1, 10 with optional AXXRAKSW5 for RAID 5* |
| IDE |
Yes |
| |
Number of IDE Devices Supported |
2 |
| |
IDE Modes Supported |
ATAPI |
| Network Adaptor |
Yes |
| |
Controller |
Intel® 82563EB Network Connection |
| |
Speeds |
100GB/10GB/1GB |
| |
Number of Ports |
2 |
| Audio |
AC97 |
| Super I/O |
National Semiconductor PC87427 |
| Intel Ligth-guided Diagnostics |
Yes |
| Input / Output |
| External USB Ports |
Yes (2 Front, 4 back) |
| Internal USB Connections |
1 |
| USB Standards Supported |
USB 2.0 |
| Keyboard / Mouse |
Yes |
| Serial Ports |
2 |
| Supported Chassis |
| Rack |
Yes |
| |
1U |
Reference Chassis |
| |
2U |
Reference Chassis |
| |
Small Depth |
Reference Chassis |
| |
Pedestal Conversion |
Yes |
| Pedestal |
Yes - Intel® Workstation Chassis SC5299WS and Intel® Server Chassis SC5400BASE |
| |
Rack Conversion |
Yes |
| Expansion Slots |
| PCI-Express |
S5000XVNSATA
1 x PCI Express* x16, 1 x PCI Express* x8, 1 x PCI Express x4 (x8 Connector)
S5000XVNSAS
1 x PCI Express* x16, 2 x PCI Express x4 (x8 Connector) |
| PCI-X |
1 x PCI-X 100/133 MHz, 1 x PCI-X 100 MHZ |
| PCI |
None |
| System BIOS |
| BIOS Type |
Intel® Extensible Framework |
| BIOS Features |
| |
Rolling BIOS |
Yes |
| |
SMBIOS |
Yes |
| |
PnP |
Yes |
| |
DMI |
Yes |
| |
PCI |
Yes |
| |
ACPI |
Yes |
| |
Other Features |
Server Management, EFI Shell, Error Reporting |
| Management |
| Supported Standards |
IPMI 2.1 |
| Software |
Intel® System Management Software 1.0 |
| PC Health Monitoring |
| CPU |
Yes |
| FAN |
Yes |
| Intrusion Detection |
Yes |
* Not supported until after SRA |
Components
|
| Parts List |
| Description |
Part Number |
Qty |
Description |
| Motherboard |
D37261-720 |
1 |
One Intel® Workstation Board S5000XVNSATAR |
| D25028-720 |
1 |
One Intel® Workstation Board S5000XVNSAS |
| Quick Start User Guide |
D36221-002 |
1 |
Quick Start User Guide |
| Intel® Server Essentials Kit |
D43091-003 |
2 CD Kit |
Intel® Server Essentials Kit Includes: Intel® Server Deployment Toolkit 2.0 and Intel® System Management Software 1.0 |
| Cable Kit |
D35906-003 |
1 |
Six SATA cables (two 34-inch cables and four 24-inch cables), one IDE data cable, and one serial cable |
| I/O Shield |
D37168-001 |
1 |
SSI EEB 3.6 Compliant I/O Shield |
| Attention Document |
D36221-002 |
1 |
Attention Document |
| Label sheet |
D36219-002 |
1 |
One server board configuration label, two I/O shield labels, and one serial port B label |
| Bumper Kit |
D42695-001 |
1 |
Two bumpers (for use in non-Intel chassis only) |
| Four pin adapter cable |
D25027-001 |
1 |
Converter cable to connect hard drive power connectors to the 2x2 pin S5000PSL and S5000XVN connectors |
|
Maiores detalhes de S5000XVNSATAR no site do fabricante:
http://www.intel.com/design/servers/boards/s5000XVN/index.htm
