R$ 6,00
à vista no Pix ou Boleto
ou R$ 5,79 em 1x no cartão (via site)
ou R$ 6,11 no cartão em até 10x sem juros (apenas na loja física)
R$ 6,00
à vista no Pix ou Boleto
R$ 5,79
em 1x no cartão (via site)
R$ 6,11 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 6,00
à vista no pix
Condição de SI4134DY: Novo em embalagem comercial
Garantia de SI4134DY: 3 meses direto com a Net Computadores
| Manufacturer: | Vishay |
| Product Category: | MOSFET |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-8 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 30 V |
| Id - Continuous Drain Current: | 14 A |
| Rds On - Drain-Source Resistance: | 14 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 1.2 V |
| Qg - Gate Charge: | 23 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | 150 C |
| Pd - Power Dissipation: | 5 W |
| Channel Mode: | Enhancement |
| Tradename: | TrenchFET |
| Series: | SI4 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | Vishay Semiconductors |
| Configuration: | Single |
| Height: | 1.75 mm |
| Length: | 4.9 mm |
| Product Type: | MOSFET |

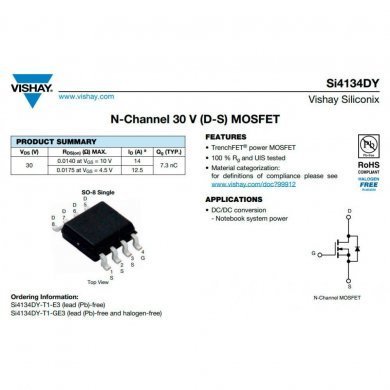

Maiores detalhes de SI4134DY no site do fabricante:
https://www.vishay.com/docs/68999/si4134dy.pdf
Tags de SI4134DY: SI4134DY-T1-E3, SI4134DY, Vishay

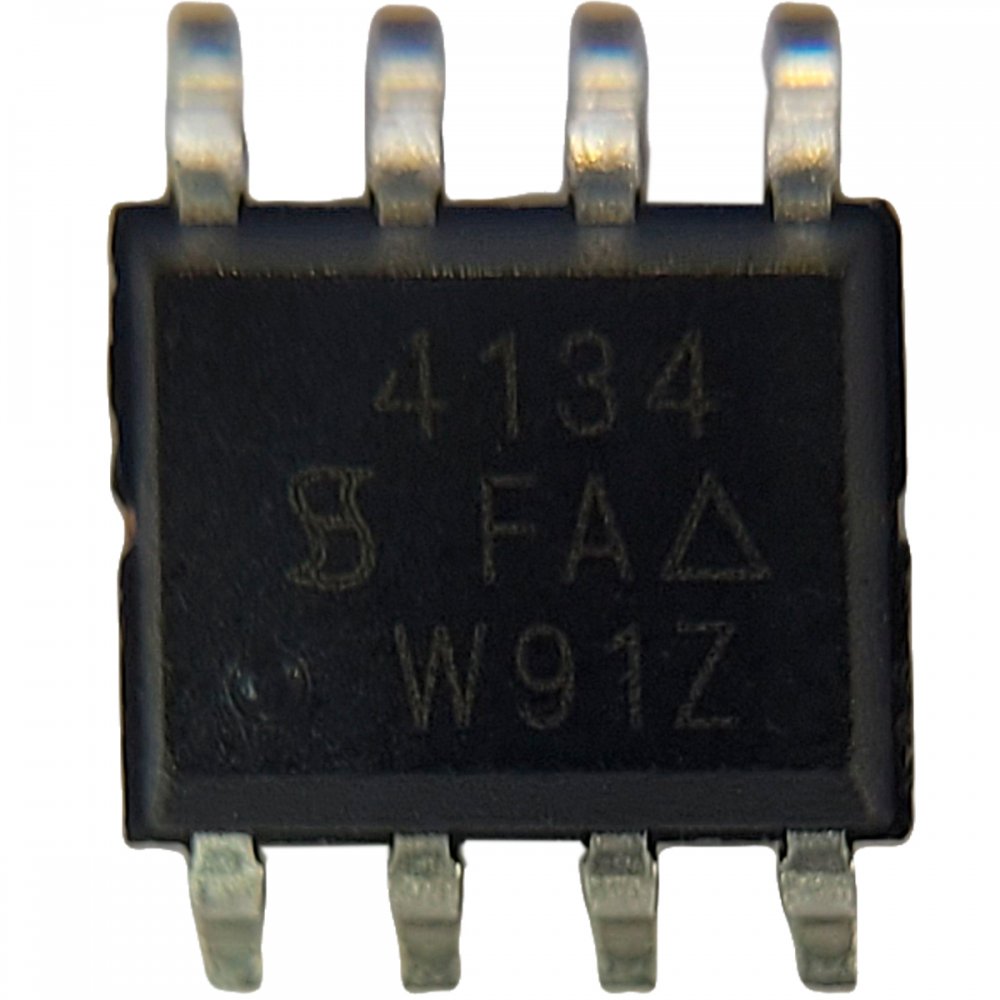

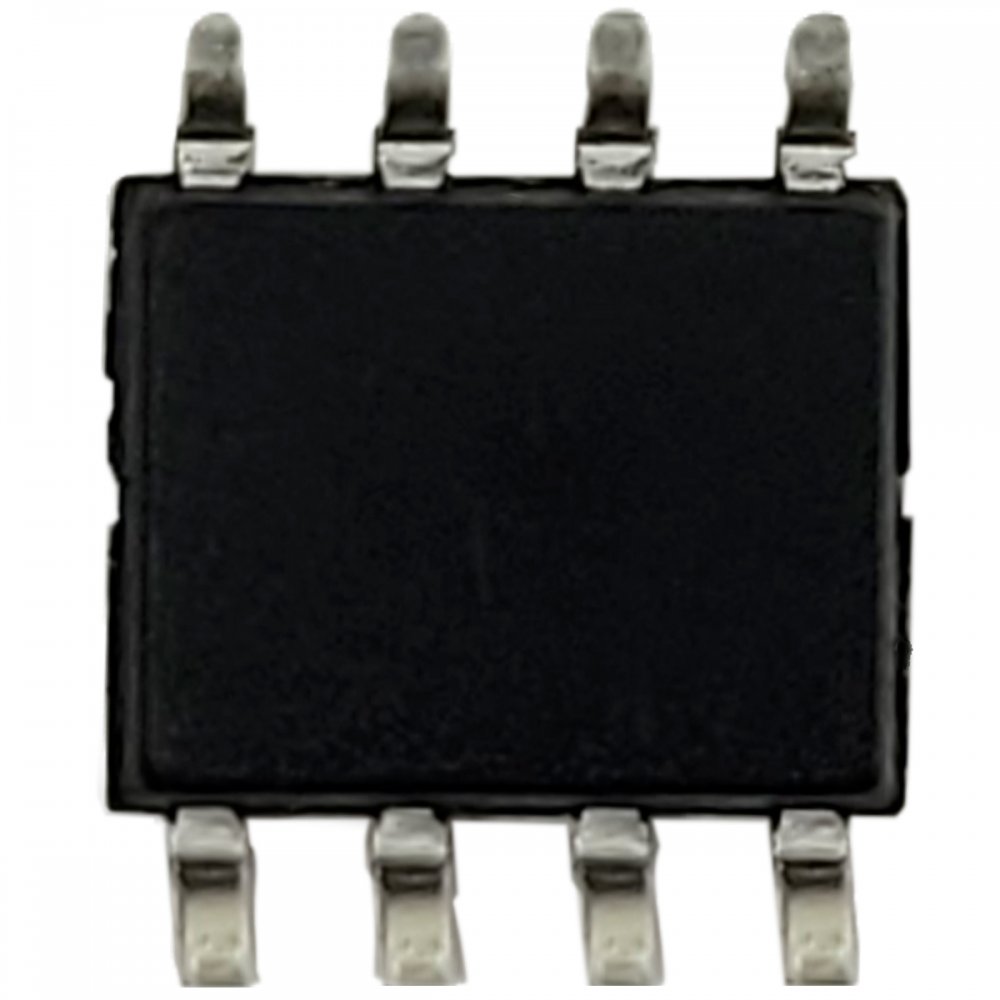

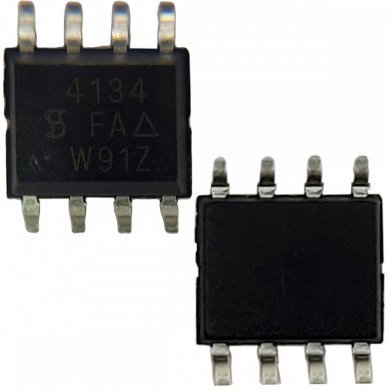

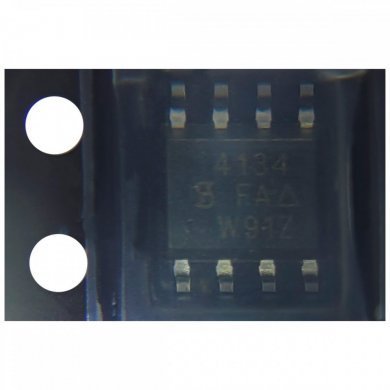

SI4134DY Mosfet 4134 N-Channel 30V 14A SOIC-8
Condição de SI4134DY:
Novo em embalagem comercial
Garantia de SI4134DY:
3 meses direto com a Net Computadores
| Manufacturer: | Vishay |
| Product Category: | MOSFET |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-8 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 30 V |
| Id - Continuous Drain Current: | 14 A |
| Rds On - Drain-Source Resistance: | 14 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 1.2 V |
| Qg - Gate Charge: | 23 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | 150 C |
| Pd - Power Dissipation: | 5 W |
| Channel Mode: | Enhancement |
| Tradename: | TrenchFET |
| Series: | SI4 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | Vishay Semiconductors |
| Configuration: | Single |
| Height: | 1.75 mm |
| Length: | 4.9 mm |
| Product Type: | MOSFET |
Maiores detalhes de SI4134DY no site do fabricante:
https://www.vishay.com/docs/68999/si4134dy.pdf
Tags de SI4134DY: SI4134DY-T1-E3, SI4134DY, Vishay
Semelhantes
SI4134DY Mosfet 4134 N-Channel 30V 14A SOIC-8
