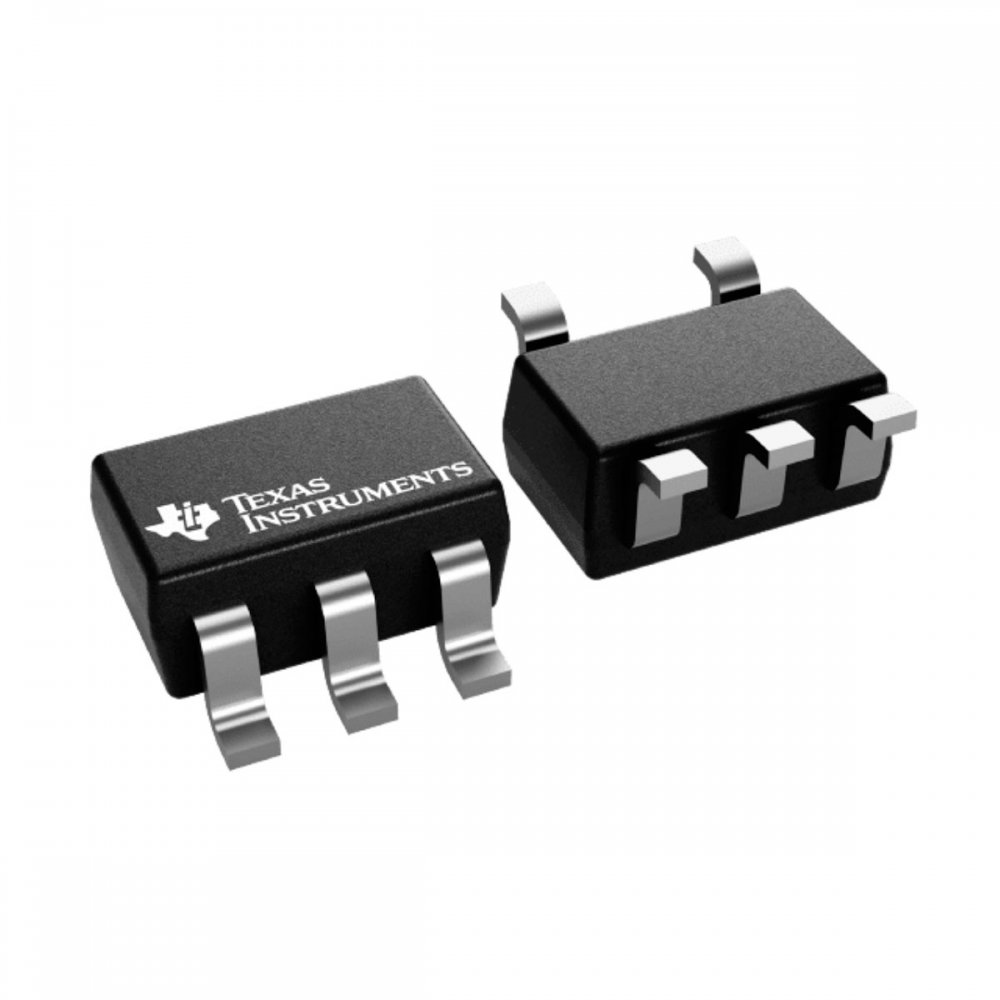

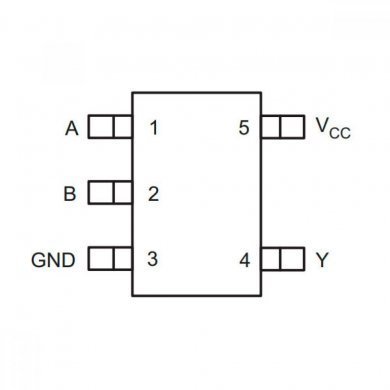

SN74LV1T08DCKR Single Power Supply 2 Input Positive AND Gate

SN74LV1T08DCKR Single Power Supply 2 Input Positive AND Gate CMOS Logic Level Shifter SC70-5

Condição de SN74LV1T08DCKR:
Novo em embalagem comercial

Garantia  de  SN74LV1T08DCKR:
3 meses direto com a Net Computadores

Outros PNs para este componente:     SN74LV1T08

Features for the SN74LV1T08

• Single-supply voltage translator at 5.0-V, 3.3-V, 2.5-V, and 1.8-V VCC
• Operating range of 1.8 V to 5.5 V

• Up translation:
  • 1.2 V(1) to 1.8 V at 1.8-V VCC
  • 1.5 V(1) to 2.5 V at 2.5-V VCC
  • 1.8 V(1) to 3.3 V at 3.3-V VCC
  • 3.3 V to 5.0 V at 5.0-V VCC

• Down translation:
  • 3.3 V to 1.8 V at 1.8-V VCC
  • 3.3 V to 2.5 V at 2.5-V VCC
  • 5.0 V to 3.3 V at 3.3-V VCC

• Logic output is referenced to VCC

• Output drive:
  • 8 mA Output Drive at 5 V
  • 7 mA Output Drive at 3.3 V
  • 3 mA Output Drive at 1.8 V

• Characterized up to 50 MHz at 3.3-V VCC
• 5 V tolerance on input pins
• -40°C to 125°C operating temperature range
• Pb-free packages available: SC-70 (DCK)
  • 2 × 2.1 × 0.65 mm (height 1.1 mm)
• Latch-up performance exceeds 250 mA Per JESD 17
• Supports standard logic pinouts
• CMOS output B compatible with AUP1G and LVC1G families (1)

Maiores detalhes de SN74LV1T08DCKR no site do fabricante:
https://www.ti.com/lit/ds/symlink/sn74lv1t08.pdf?ts=1657054516187
